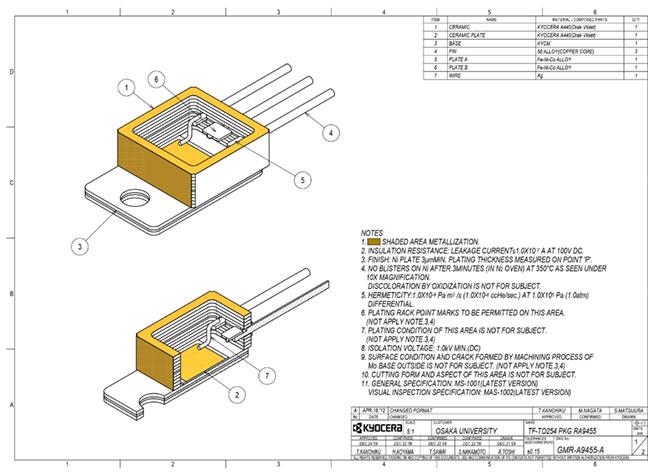

GMR-A9455-A
Drawings Download

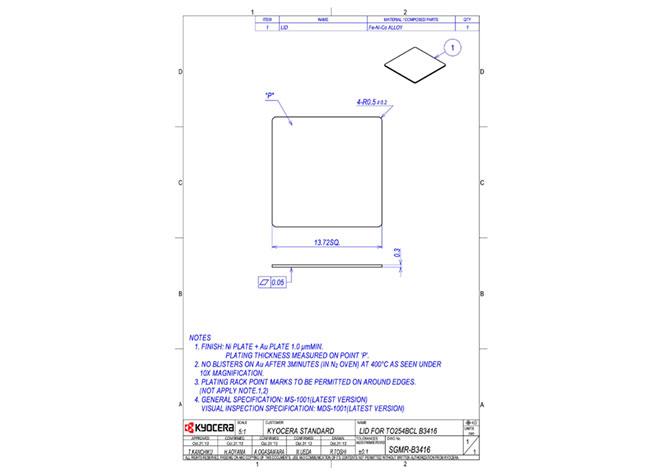

TO-Packages 3 13.72 13.72 6.49 KYCM® SGMR-B3416
Drawings Download
3.81 11.18 11.18 19.7 12.7 With Seal Ring Metallization

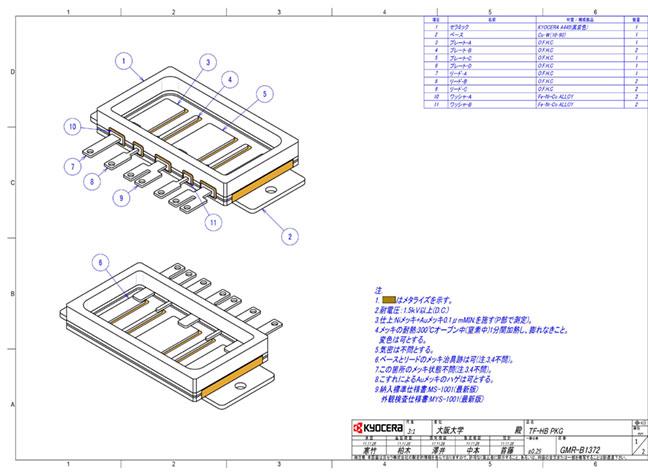

GMR-B1372
Drawings Download
TO-Packages 5 38.2 22 6.75 CuW 34.2 18 16 48.2 Without Seal Ring Metallization

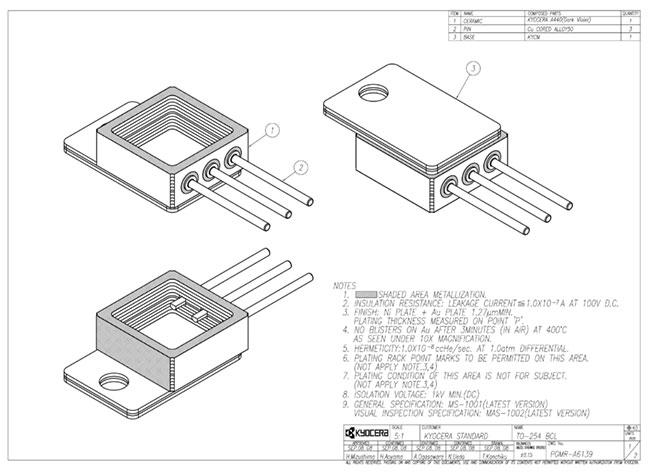

PGMR-A6139
Drawings Download
TO-Packages 3 13.72 13.72 6.44 KYCM® SGMR-B3416
Drawings Download
3.81 11.18 11.18 19.7 12.7 With Seal Ring Metallization
PGMR-A6140
Drawings Download
TO-Packages 3 13.72 13.72 6.94 KYCM® PGMR-A9388
Drawings Download
3.81 11.18 11.18 11.18 11.18 19.7 12.7 With Seal Ring

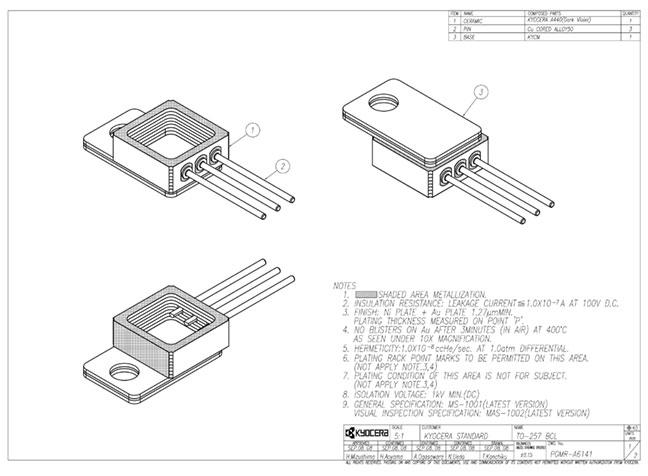

PGMR-A6141
Drawings Download
TO-Packages 3 10.55 10.55 5.27 KYCM® 2.54 8.35 8.35 16 9.55 With Seal Ring Metallization
PGMR-A6142
Drawings Download
TO-Packages 3 10.55 10.55 5.77 KYCM® PGMR-A9389
Drawings Download
2.54 8.35 8.35 8.35 8.35 16 9.55 With Seal Ring

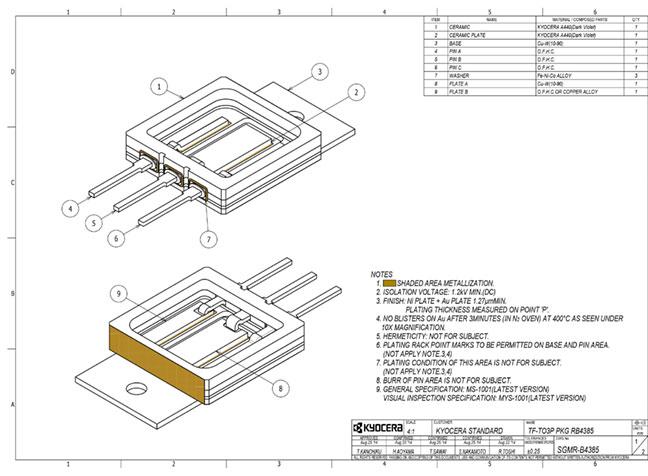

SGMR-B4385
Drawings Download
TO-Packages 3 22 22 5.7 CuW 5.45 18 18 18 29 Without Seal Ring Metallization
