Results for
  • Without Sealing Material
45results

* Membership registration (login) is required to download drawings.

Results per page
Change Columns
Appearance
Drawing Number
 Drawing Shape
Lid Outer Dimension
X[mm]
Lid Outer Dimension
Y[mm]
Lid Thickness
(except sealing material)
[mm]
 Sealing Material Materialor
Material Code
Cavity Depth
[mm]
Seal Thickness
[mm]

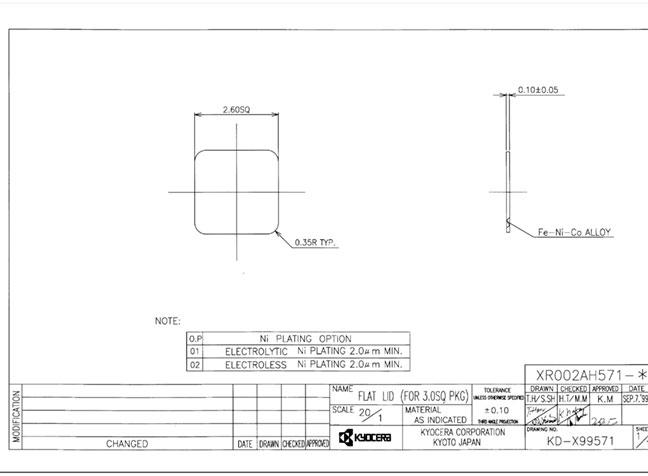

KD-X99571-01
Drawings Download
Flat Type 2.6 2.6 0.1 Without Sealing Material FeNiCo

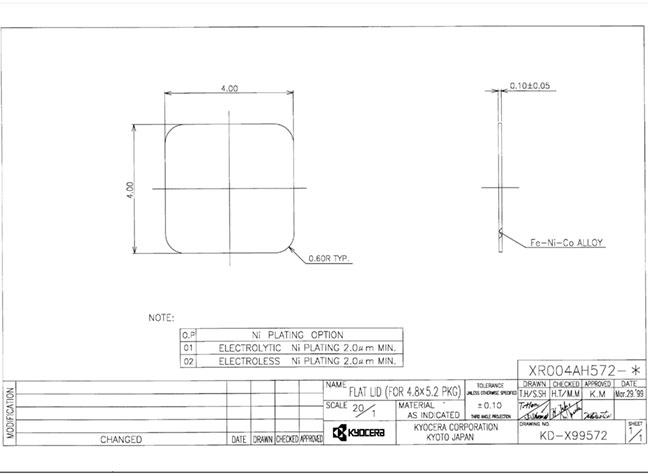

KD-X99572-01
Drawings Download
Flat Type 4 4 0.1 Without Sealing Material FeNiCo

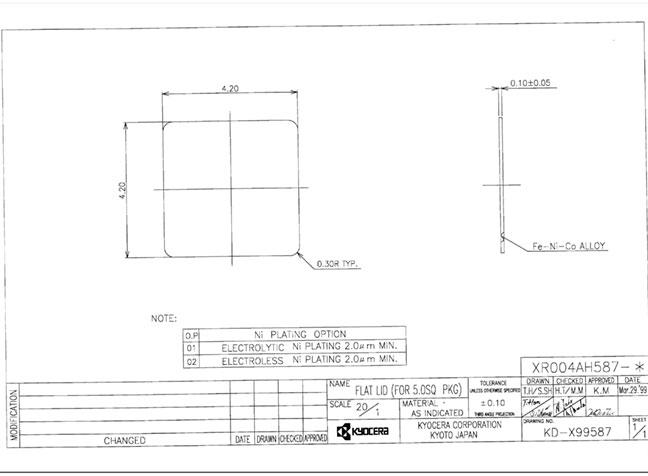

KD-X99587-01
Drawings Download
Flat Type 4.2 4.2 0.1 Without Sealing Material FeNiCo

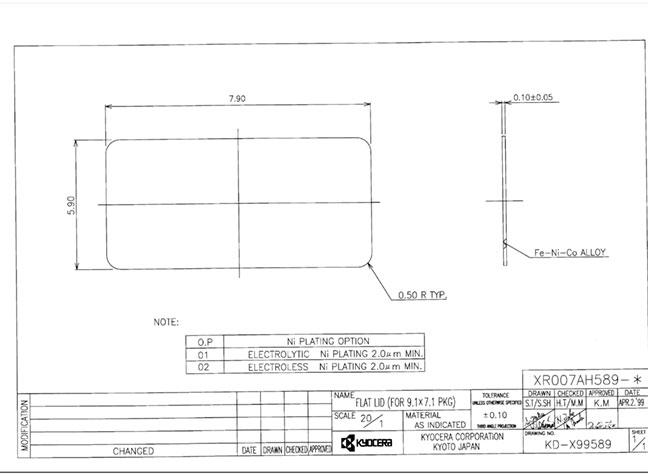

KD-X99589-01
Drawings Download
Flat Type 7.9 5.9 0.1 Without Sealing Material FeNiCo

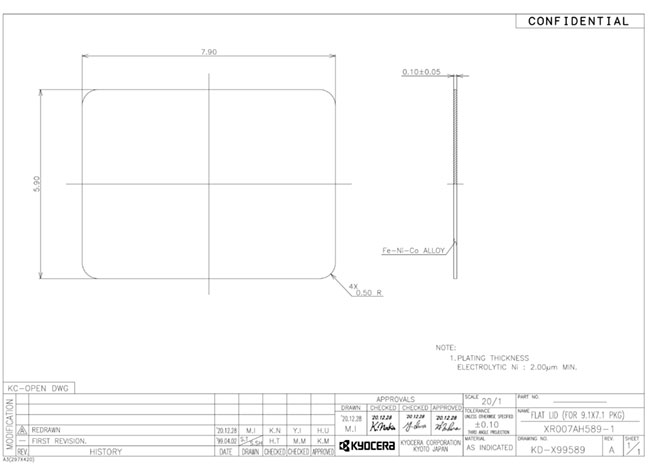

KD-X99589-A
Drawings Download
Flat Type 7.9 5.9 0.1 Without Sealing Material FeNiCo

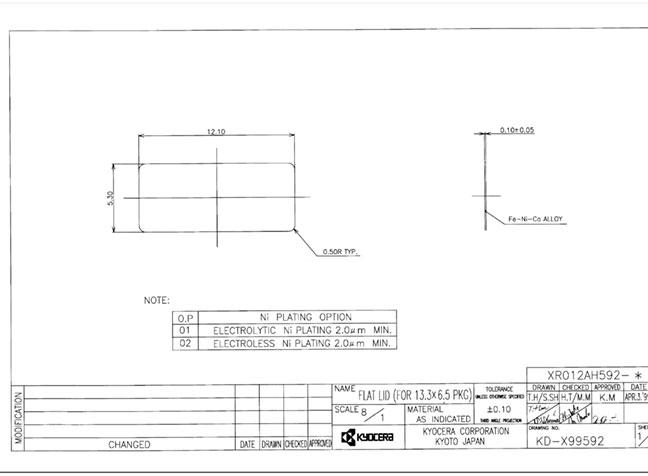

KD-X99592-01
Drawings Download
Flat Type 12.1 5.3 0.1 Without Sealing Material FeNiCo

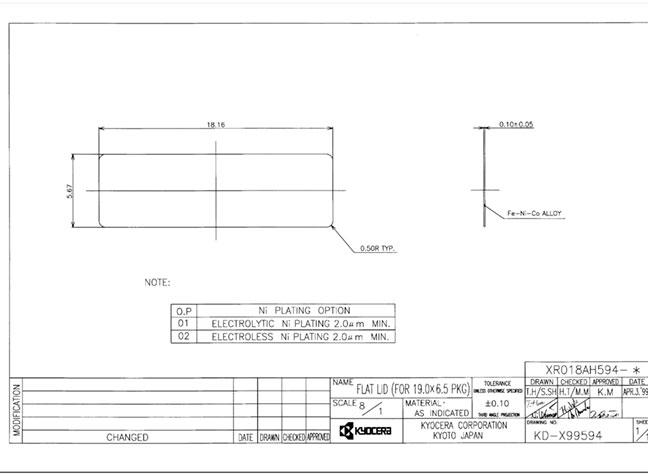

KD-X99594-01
Drawings Download
Flat Type 18.16 5.67 0.1 Without Sealing Material FeNiCo

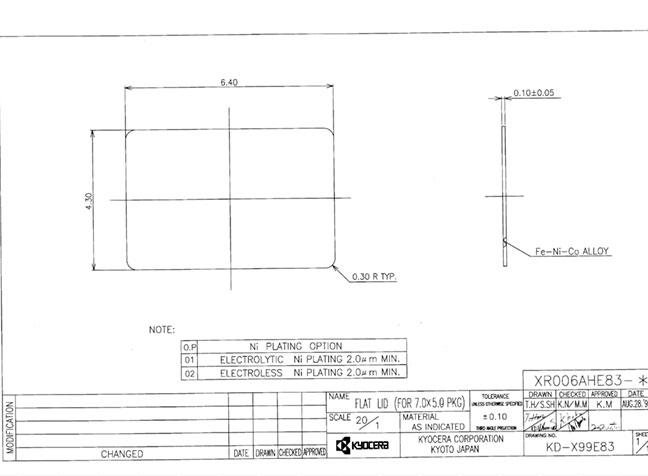

KD-X99E83-01
Drawings Download
Flat Type 6.4 4.3 0.1 Without Sealing Material FeNiCo

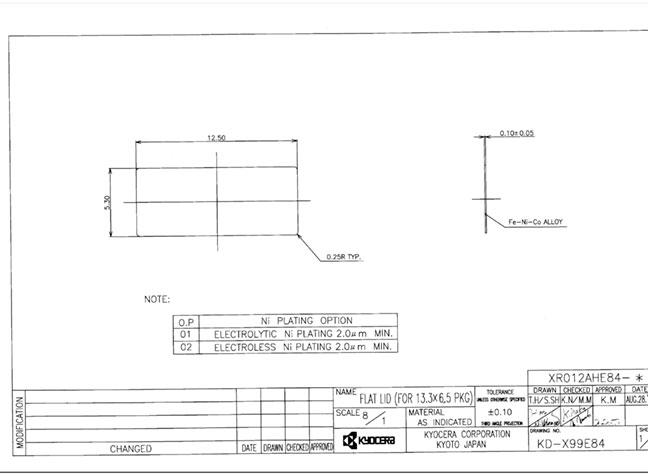

KD-X99E84-01
Drawings Download
Flat Type 12.5 5.3 0.1 Without Sealing Material FeNiCo

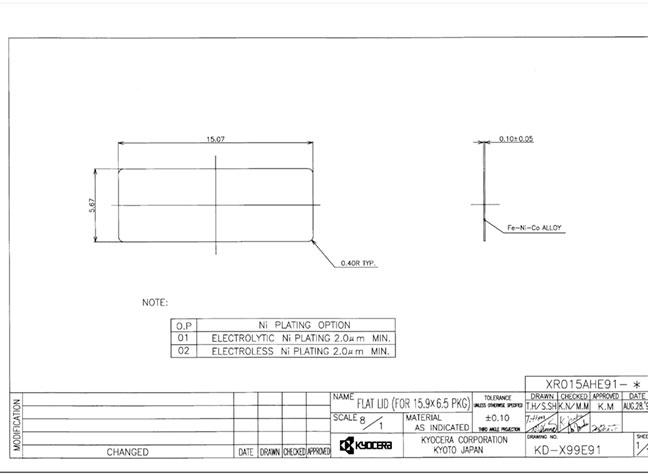

KD-X99E91-01
Drawings Download
Flat Type 15.07 5.67 0.1 Without Sealing Material FeNiCo

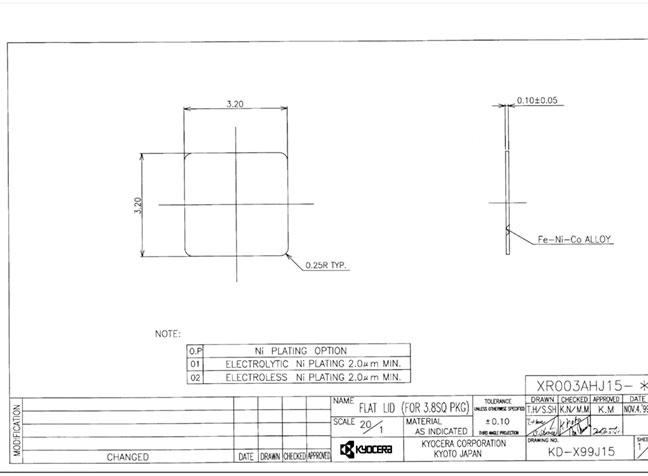

KD-X99J15-01
Drawings Download
Flat Type 3.2 3.2 0.1 Without Sealing Material FeNiCo

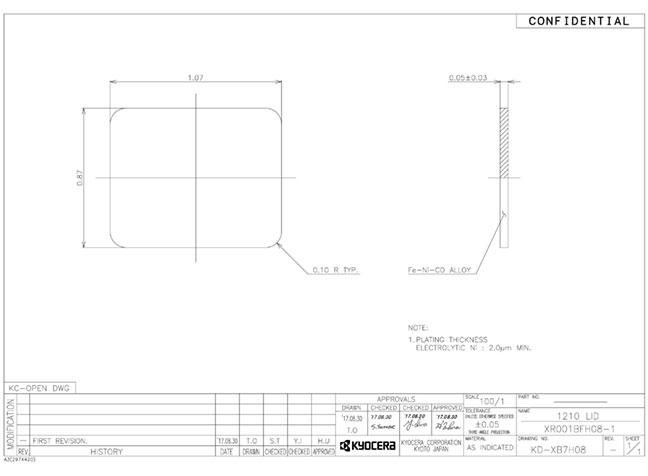

KD-XB7H08
Drawings Download
Flat Type 1.07 0.87 0.05 Without Sealing Material FeNiCo

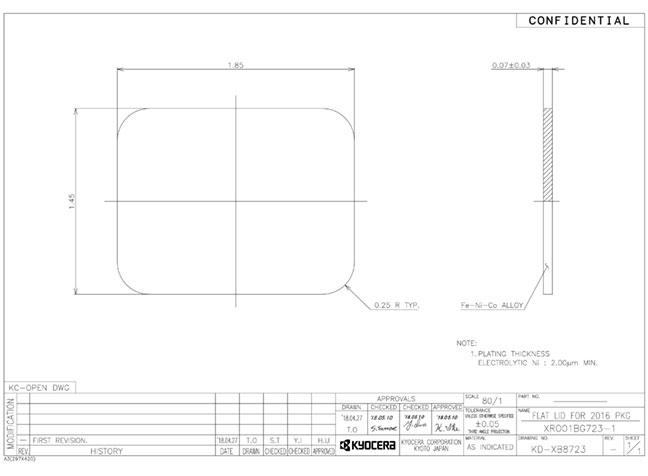

KD-XB8723
Drawings Download
Flat Type 1.85 1.45 0.07 Without Sealing Material FeNiCo

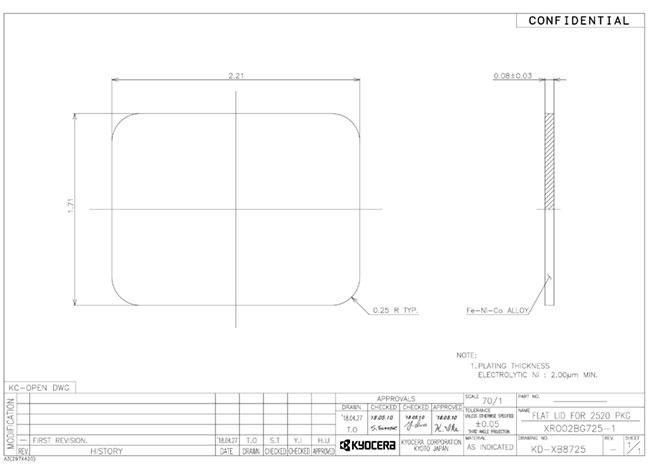

KD-XB8725
Drawings Download
Flat Type 2.21 1.71 0.08 Without Sealing Material FeNiCo
KD-XB8727
Drawings Download
Flat Type 2.75 2.05 0.08 Without Sealing Material FeNiCo

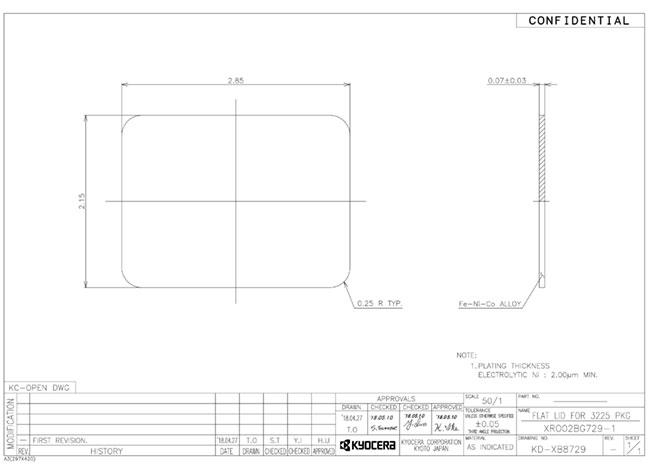

KD-XB8729
Drawings Download
Flat Type 2.85 2.15 0.07 Without Sealing Material FeNiCo

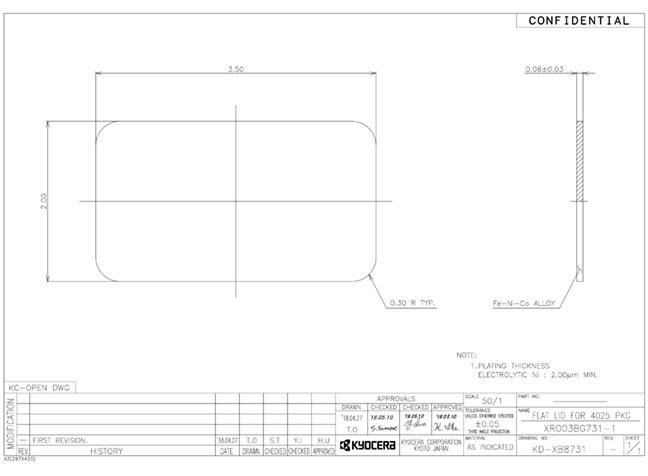

KD-XB8731
Drawings Download
Flat Type 3.5 2 0.08 Without Sealing Material FeNiCo

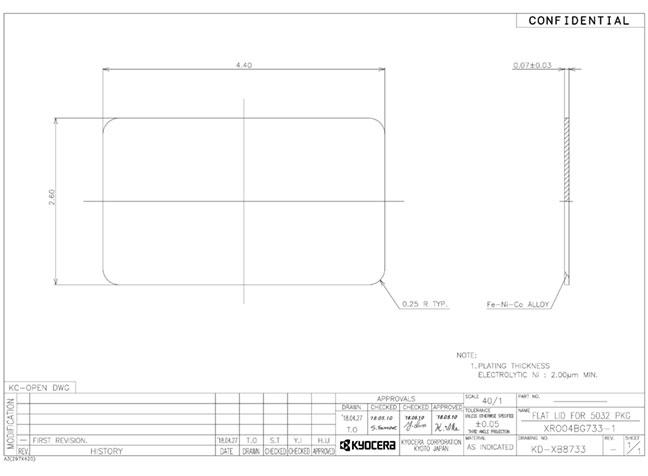

KD-XB8733
Drawings Download
Flat Type 4.4 2.6 0.07 Without Sealing Material FeNiCo

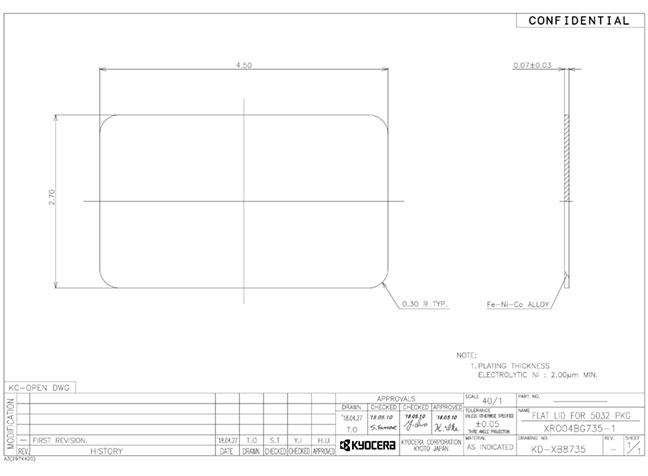

KD-XB8735
Drawings Download
Flat Type 4.5 2.7 0.07 Without Sealing Material FeNiCo

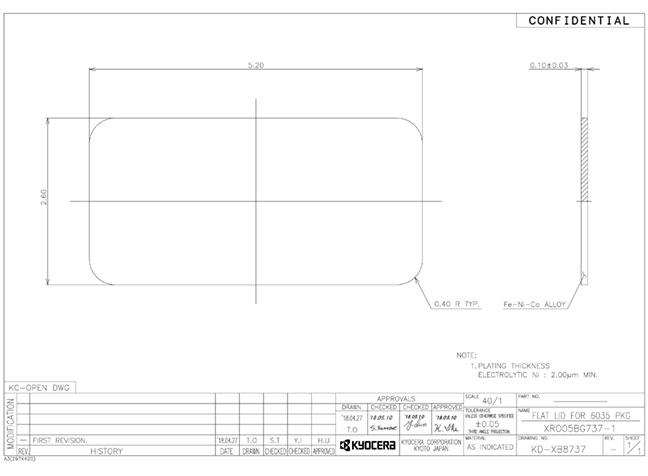

KD-XB8737
Drawings Download
Flat Type 5.2 2.6 0.1 Without Sealing Material FeNiCo
KD-XB8739
Drawings Download
Flat Type 5.2 2.7 0.1 Without Sealing Material FeNiCo

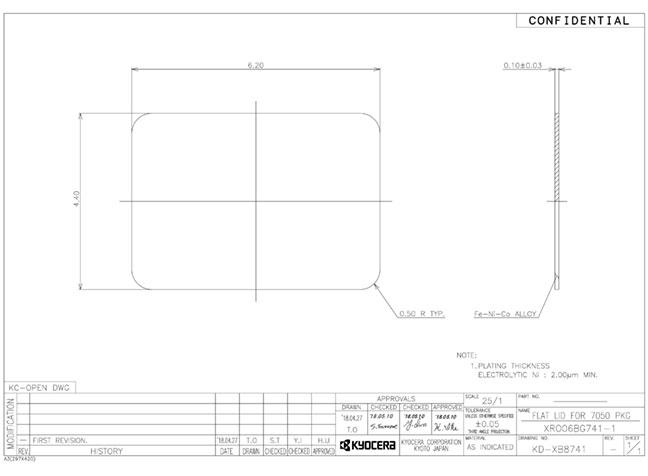

KD-XB8741
Drawings Download
Flat Type 6.2 4.4 0.1 Without Sealing Material FeNiCo
KD-XB8743
Drawings Download
Flat Type 1.47 1.07 0.05 Without Sealing Material FeNiCo

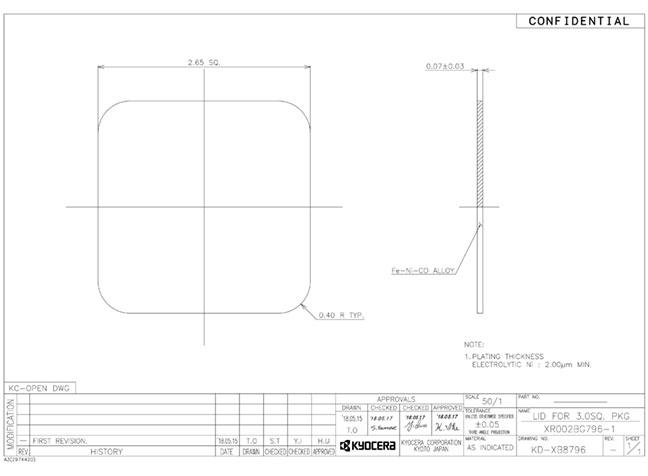

KD-XB8796
Drawings Download
Flat Type 2.65 2.65 0.07 Without Sealing Material FeNiCo
PGMR-A3001
Drawings Download
Cup Shape Type 10.21 8.26 1.76 Without Sealing Material A473 1.26

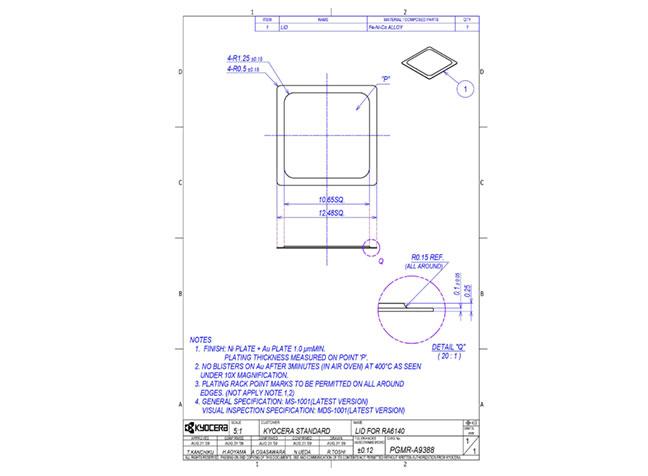

PGMR-A9388
Drawings Download
Pedestal Type 12.48 12.48 0.25 Without Sealing Material FeNiCo 0.1
PGMR-A9389
Drawings Download
Pedestal Type 9.65 9.65 0.25 Without Sealing Material FeNiCo 0.1

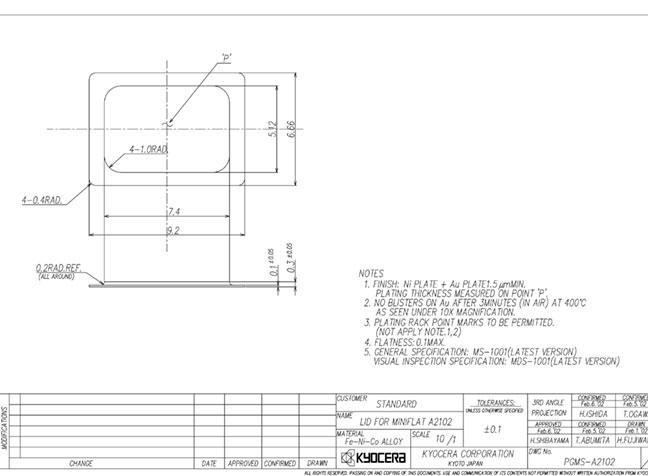

PGMS-A2102
Drawings Download
Pedestal Type 9.2 6.66 0.3 Without Sealing Material FeNiCo 0.1

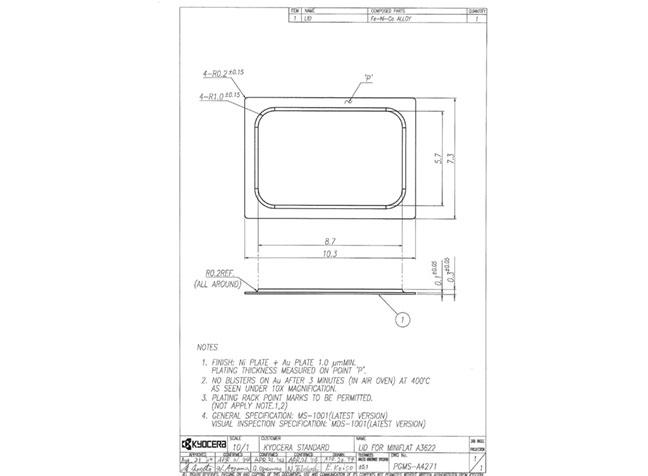

PGMS-A4271
Drawings Download
Pedestal Type 10.3 7.3 0.3 Without Sealing Material FeNiCo 0.1

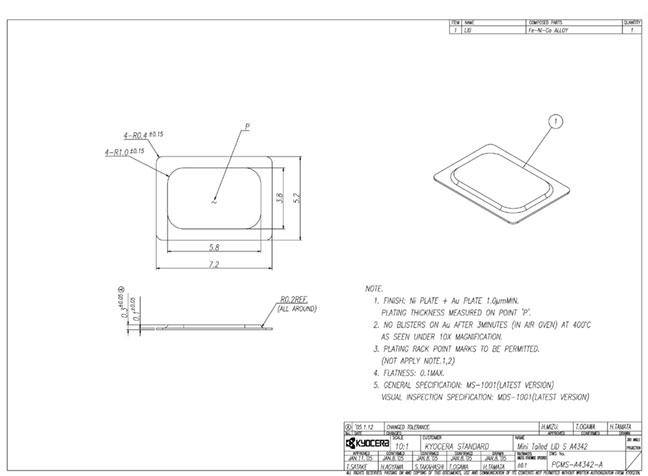

PGMS-A4342-A
Drawings Download
Pedestal Type 7.2 5.2 0.3 Without Sealing Material FeNiCo 0.1
45results
Results per page
Page 1 of 2
Next

* The appearance is an image. It may differ from the actual content.

* PDF file size is 19-2,500KB.
