Drawing Number
 Drawing Shape
Lid Outer Dimension
X[mm]
Lid Outer Dimension
Y[mm]
Lid Thickness
(except sealing material)
[mm]
 Sealing Material Materialor
Material Code
Cavity Depth
[mm]
Seal Thickness
[mm]

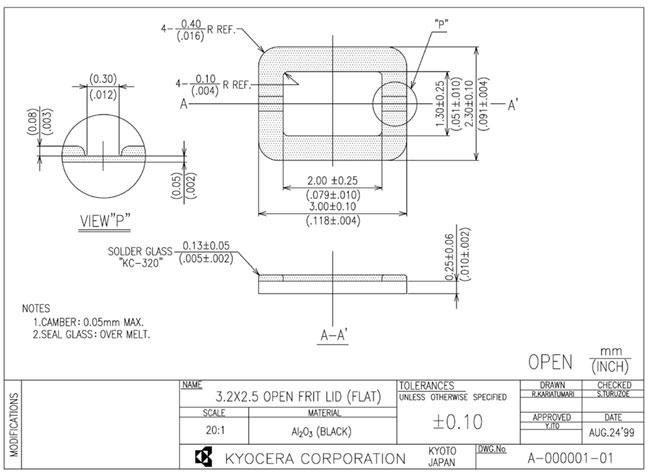

A-000001-01
Drawings Download
Flat Type 3 2.3 0.25 Frit Glass A445

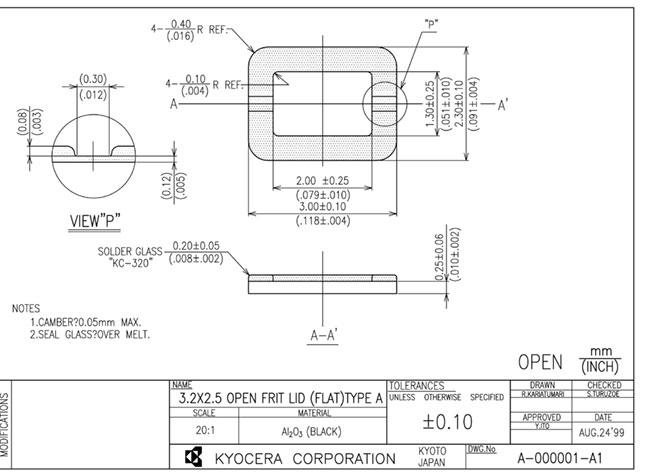

A-000001-A1
Drawings Download
Flat Type 3 2.3 0.25 Frit Glass A445
A-000002-01
Drawings Download

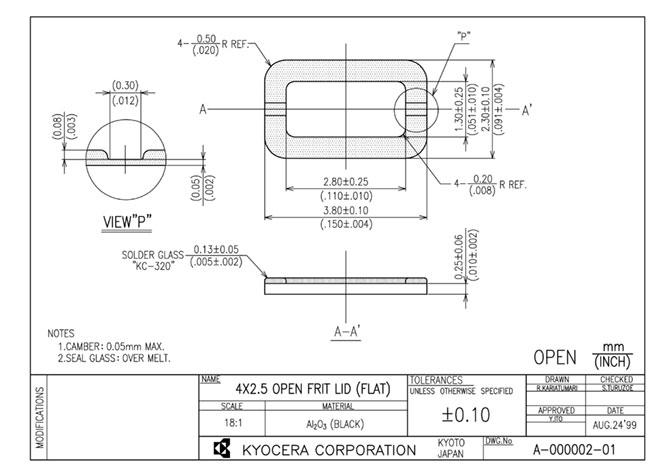

Flat Type 3.8 2.3 0.25 Frit Glass A445

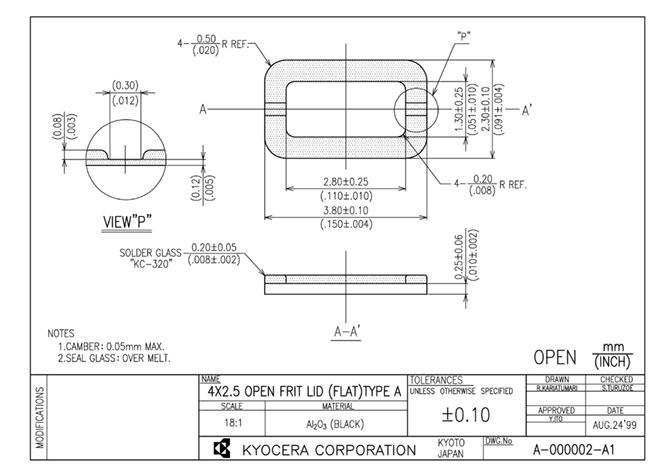

A-000002-A1
Drawings Download
Flat Type 3.8 2.3 0.25 Frit Glass A445
A-000003-01
Drawings Download
Cup Shape Type 4.7 3 0.4 Frit Glass A445 0.15

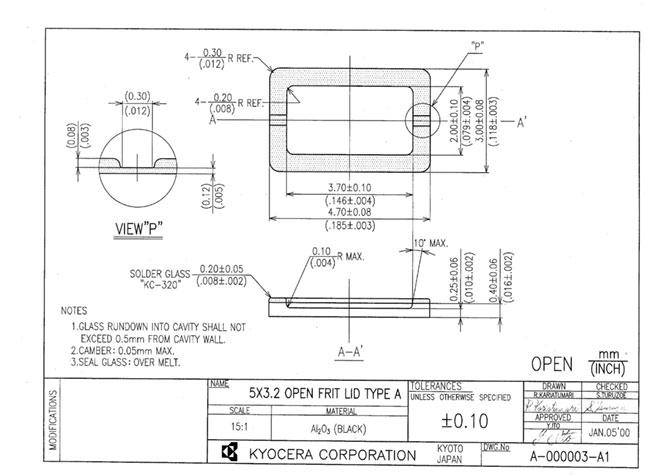

A-000003-A1
Drawings Download
Cup Shape Type 4.7 3 0.4 Frit Glass A445 0.15
A-000004-02
Drawings Download

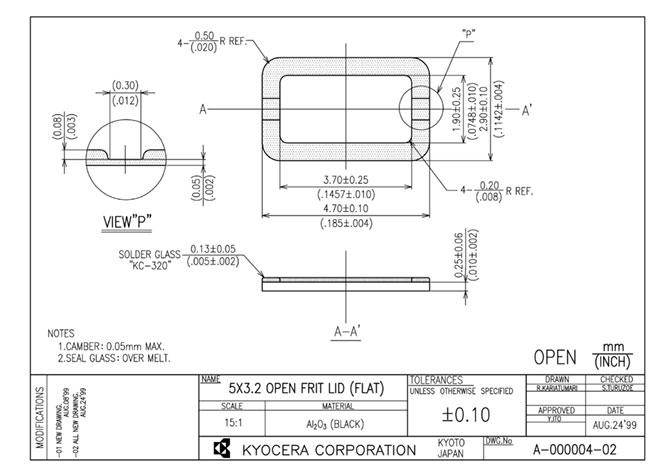

Flat Type 4.7 2.9 0.25 Frit Glass A445

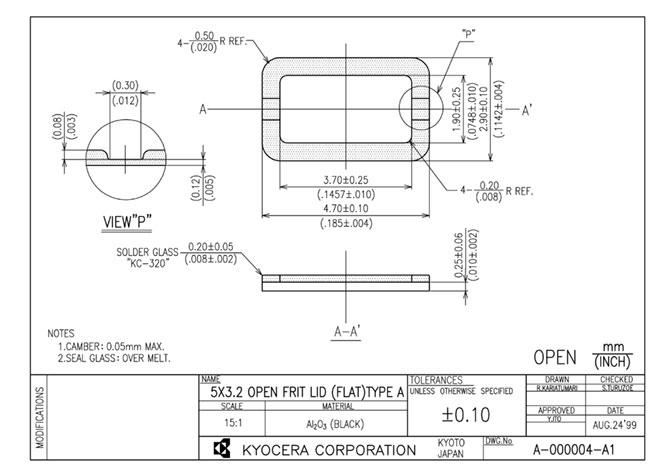

A-000004-A1
Drawings Download
Flat Type 4.7 2.9 0.25 Frit Glass A445

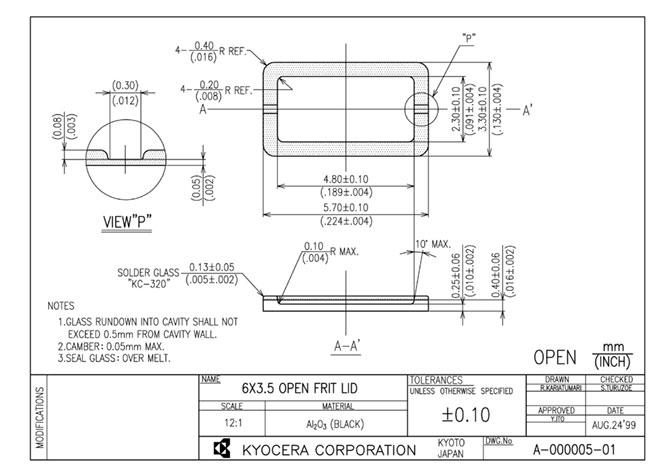

A-000005-01
Drawings Download
Cup Shape Type 5.7 3.3 0.4 Frit Glass A445 0.15

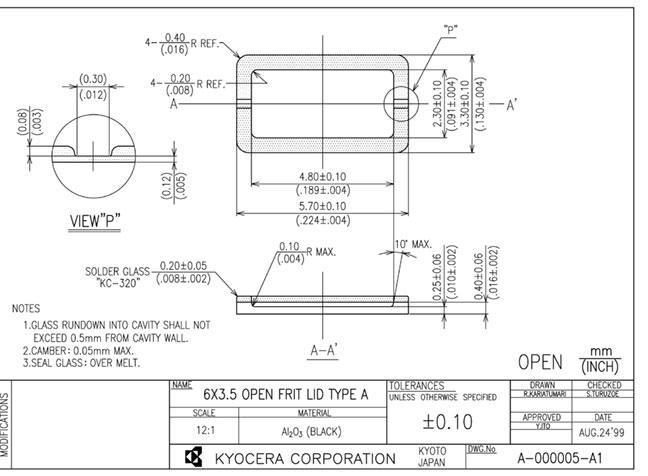

A-000005-A1
Drawings Download
Cup Shape Type 5.7 3.3 0.4 Frit Glass A445 0.15

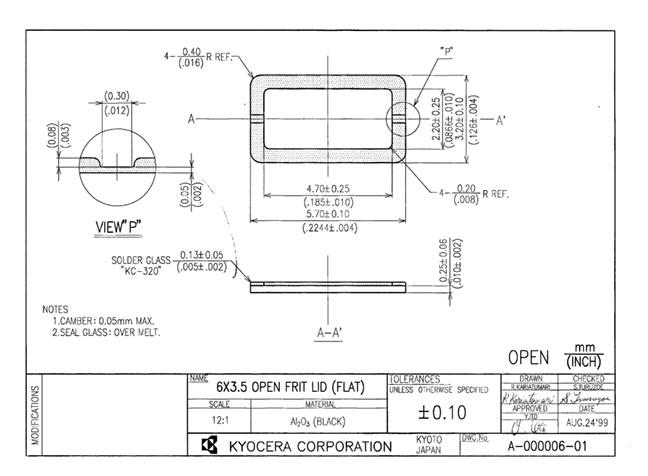

A-000006-01
Drawings Download
Flat Type 5.7 3.2 0.25 Frit Glass A445

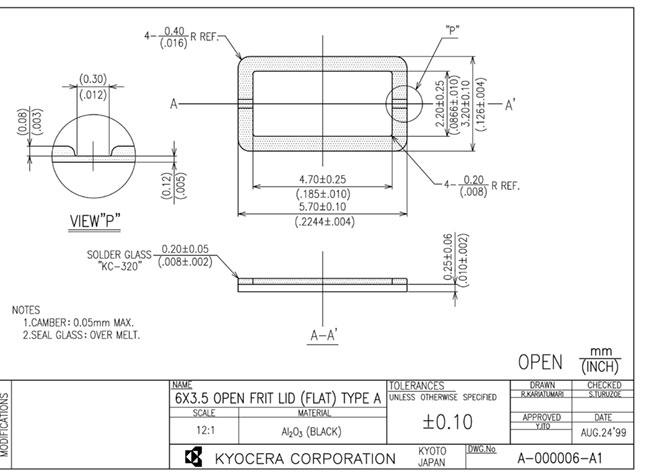

A-000006-A1
Drawings Download
Flat Type 5.7 3.2 0.25 Frit Glass A445

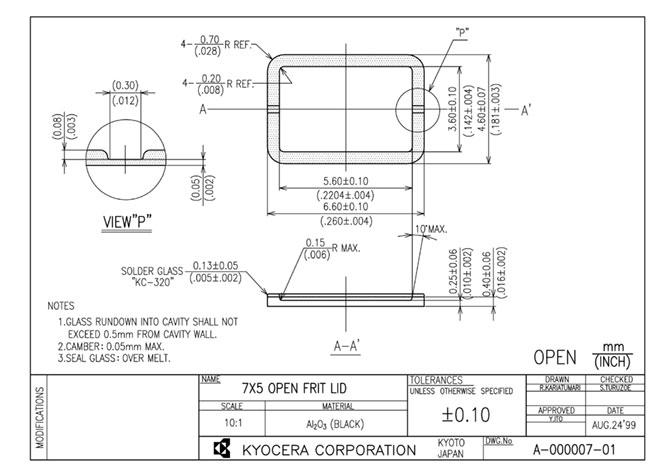

A-000007-01
Drawings Download
Cup Shape Type 6.6 4.6 0.4 Frit Glass A445 0.15
A-000007-A1
Drawings Download
Cup Shape Type 6.6 4.6 0.4 Frit Glass A445 0.15

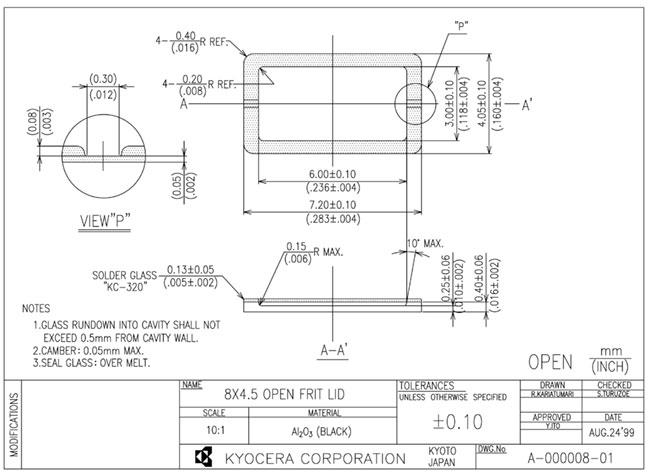

A-000008-01
Drawings Download
Cup Shape Type 7.2 4.05 0.4 Frit Glass A445 0.15

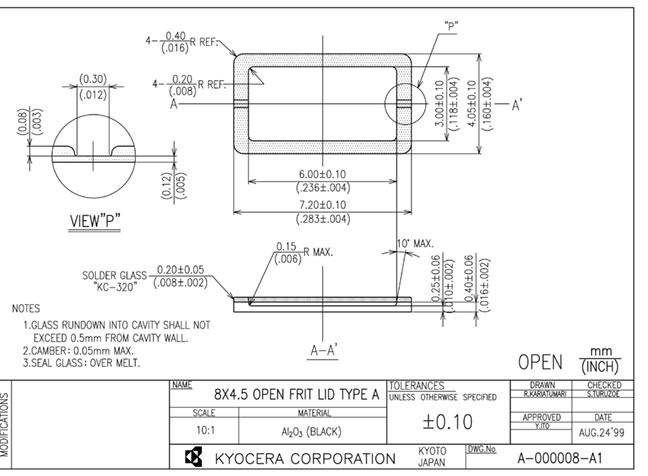

A-000008-A1
Drawings Download
Cup Shape Type 7.2 4.05 0.4 Frit Glass A445 0.15

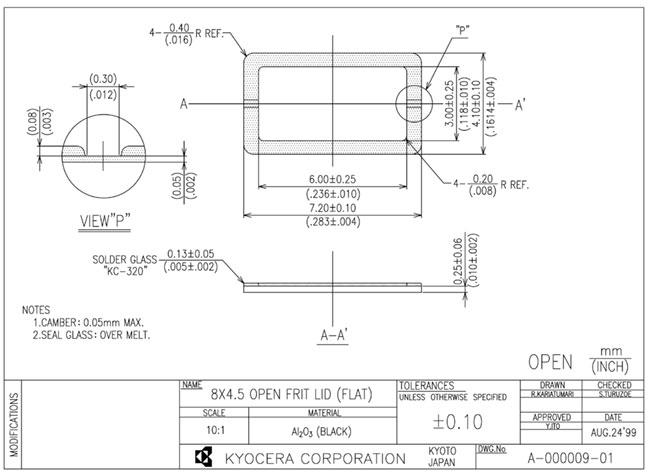

A-000009-01
Drawings Download
Flat Type 7.2 4.1 0.25 Frit Glass A445
A-000009-A1
Drawings Download
Flat Type 7.2 4.1 0.25 Frit Glass A445
A-000011-01
Drawings Download

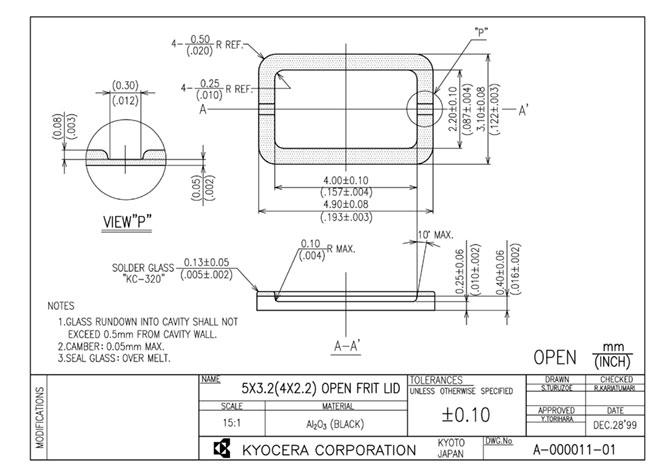

Cup Shape Type 4.9 3.1 0.4 Frit Glass A445 0.15

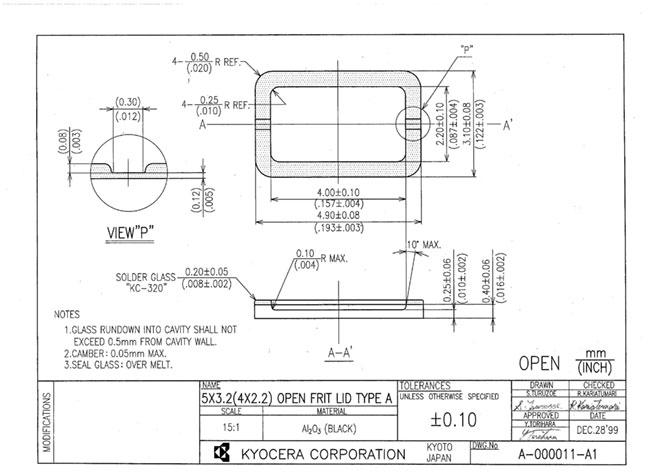

A-000011-A1
Drawings Download
Cup Shape Type 4.9 3.1 0.4 Frit Glass A445 0.15

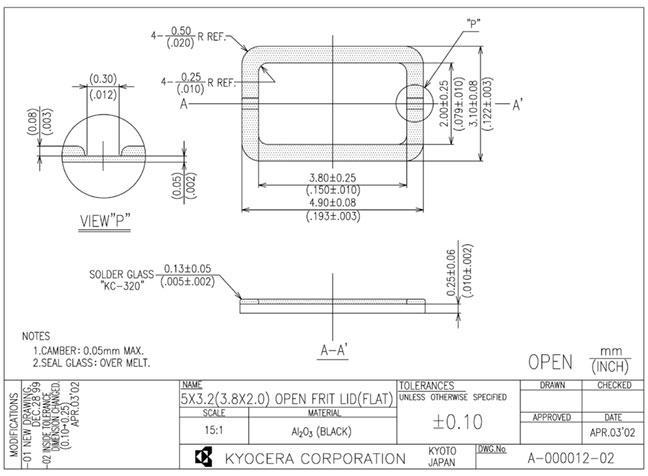

A-000012-02
Drawings Download
Flat Type 4.9 3.1 0.25 Frit Glass A445

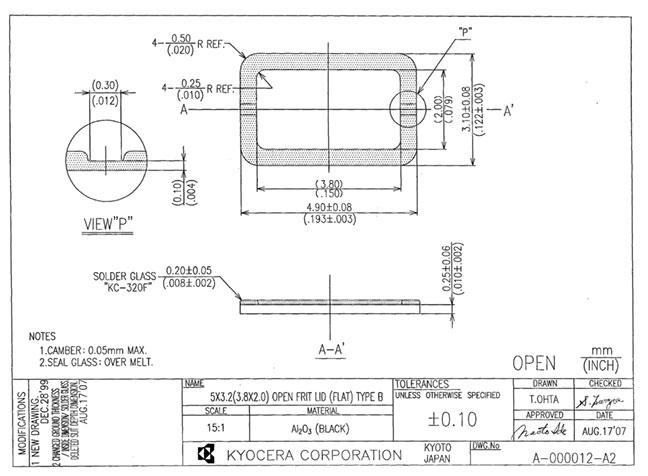

A-000012-A2
Drawings Download
Flat Type 4.9 3.1 0.25 Frit Glass A445

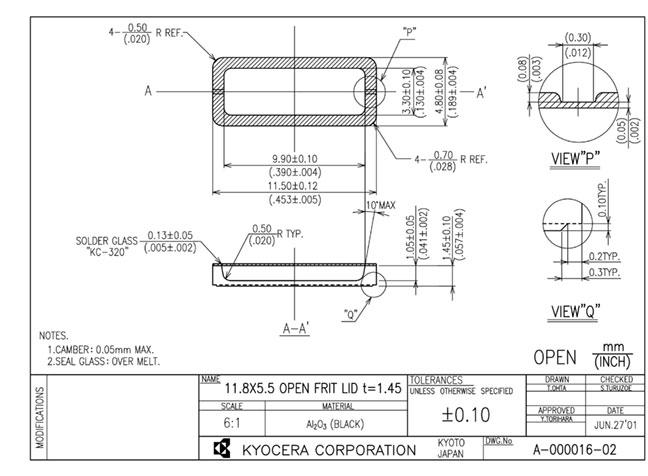

A-000016-02
Drawings Download
Cup Shape Type 11.5 4.8 1.45 Frit Glass A445 1.05

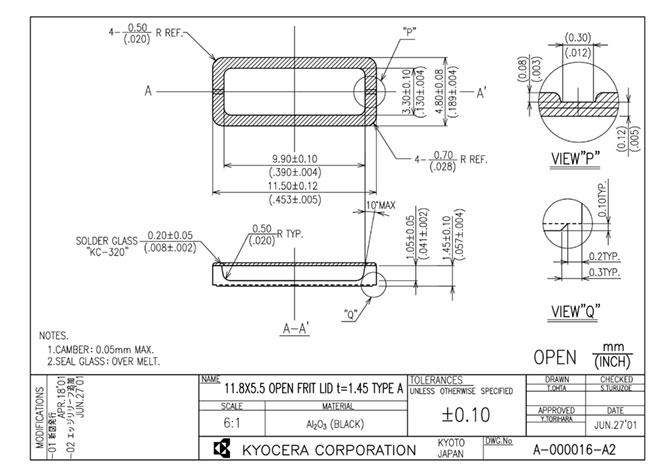

A-000016-A2
Drawings Download
Cup Shape Type 11.5 4.8 1.45 Frit Glass A445 1.05

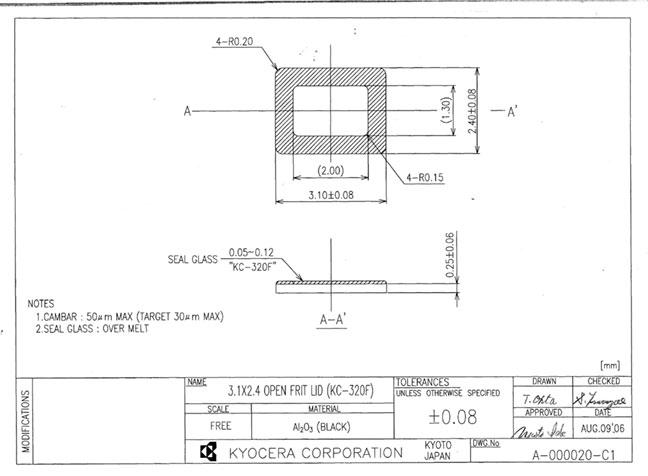

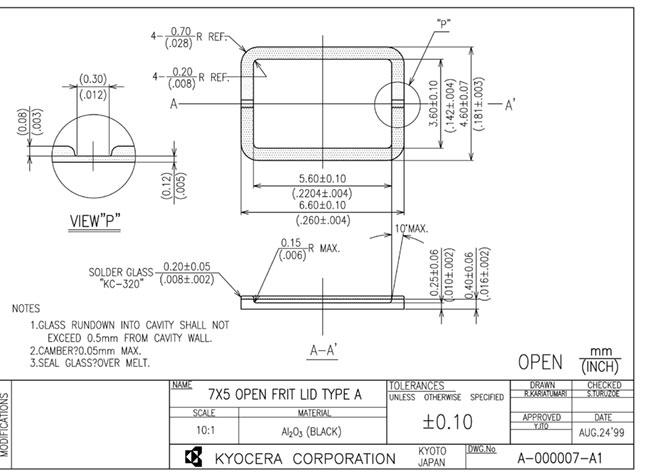

A-000020-C1
Drawings Download
Flat Type 3.1 2.4 0.25 Frit Glass Al₂O₃

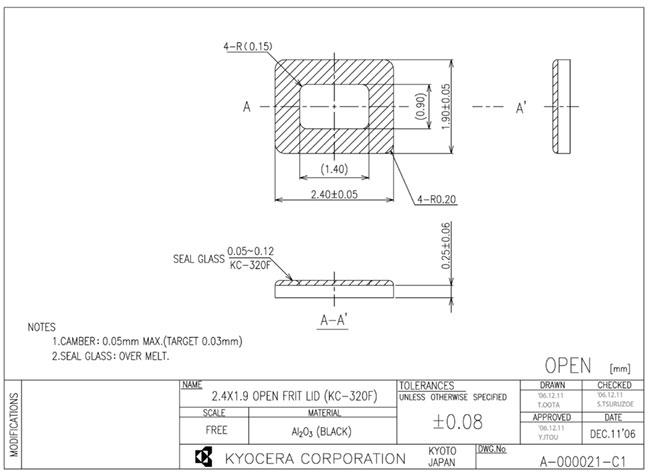

A-000021-C1
Drawings Download
Flat Type 2.4 1.9 0.25 Frit Glass Al₂O₃
A-000934-A1
Drawings Download
Cup Shape Type 6.6 4.6 0.65 Frit Glass A445 0.35
A-009024-01
Drawings Download

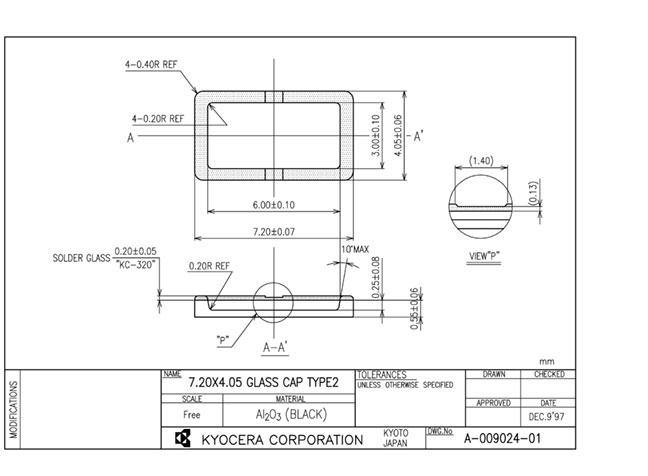

Cup Shape Type 7.2 4.05 0.55 Frit Glass A445 0.25
A-009024-D1
Drawings Download

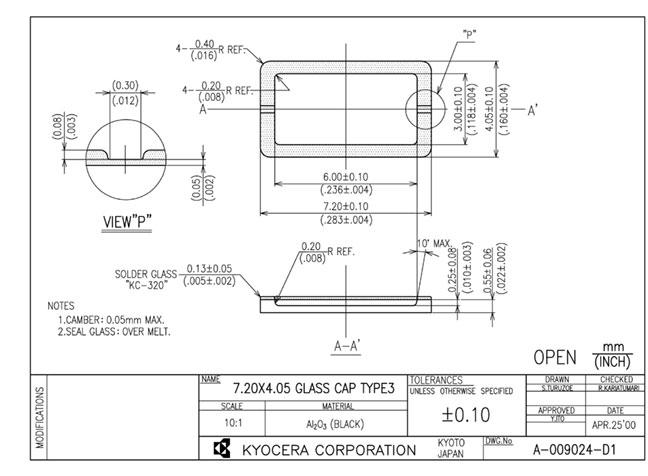

Cup Shape Type 7.2 4.05 0.55 Frit Glass A445 0.25
A-009024-K4
Drawings Download

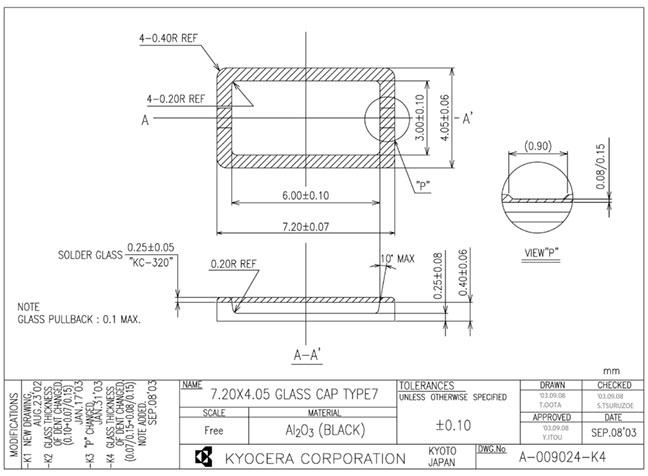

Cup Shape Type 7.2 4.05 0.4 Frit Glass Al₂O₃ 0.15
