Appearance
Drawing Number
 Drawing Shape
Lid Outer Dimension
X[mm]
Lid Outer Dimension
Y[mm]
Lid Thickness
(except sealing material)
[mm]
 Sealing Material Materialor
Material Code
Cavity Depth
[mm]
Seal Thickness
[mm]

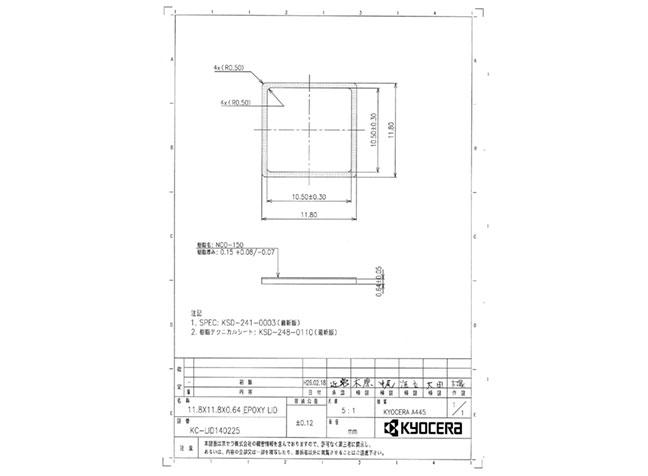

KC-LID140225
Drawings Download
Flat Type 11.8 11.8 0.64 Epoxy A445

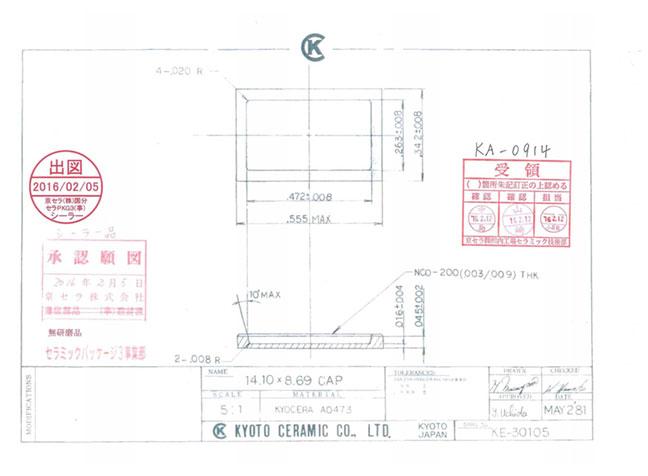

KE-30105
Drawings Download
Cup Shape Type 14.1 8.69 1.14 Epoxy A473 0.74

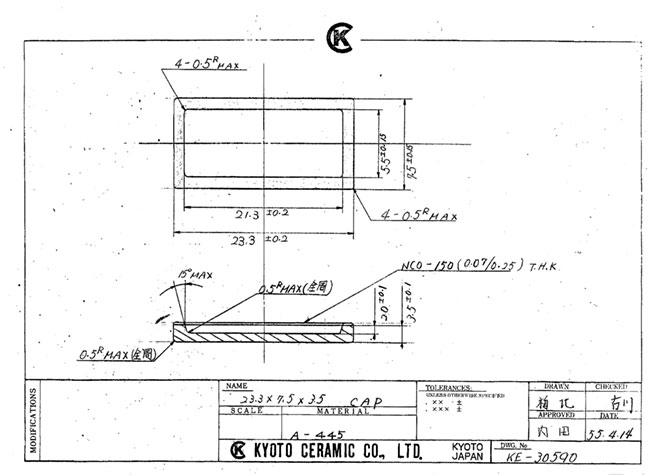

KE-30590
Drawings Download
Cup Shape Type 23.29 7.49 3.51 Epoxy A445 2.01

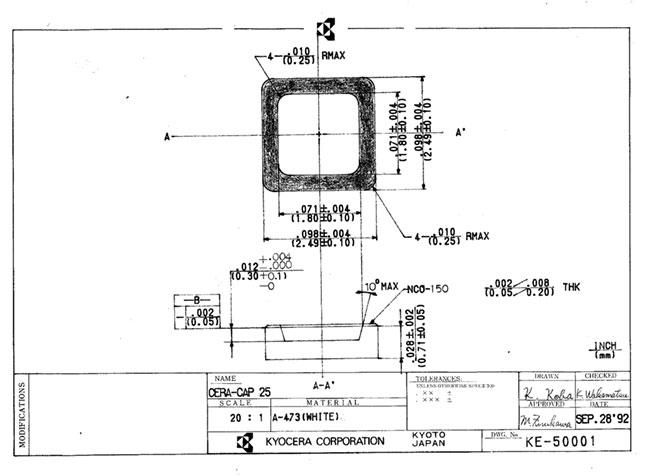

KE-50001
Drawings Download
Cup Shape Type 2.49 2.49 0.71 Epoxy A473 0.36

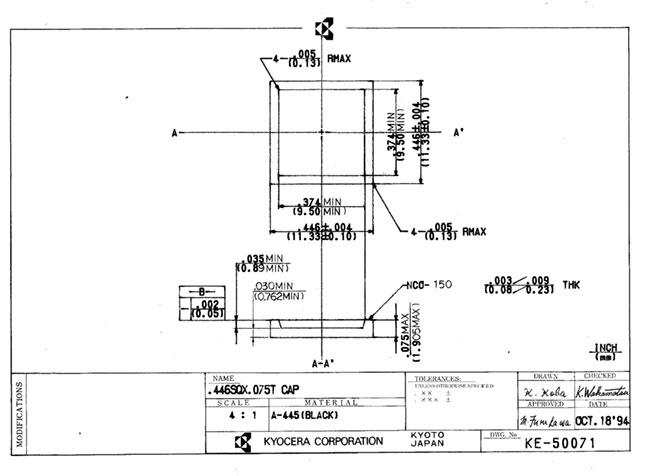

KE-50071
Drawings Download
Cup Shape Type 11.33 11.33 1.78 Epoxy A445 1.27

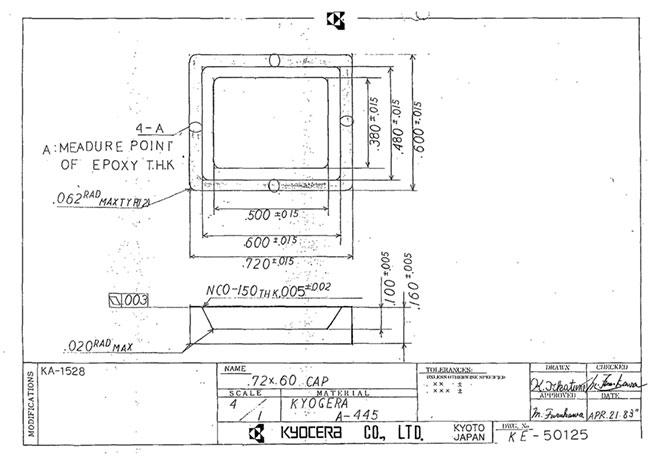

KE-50125
Drawings Download
Cup Shape Type 18.29 15.24 4.06 Epoxy A445 2.54

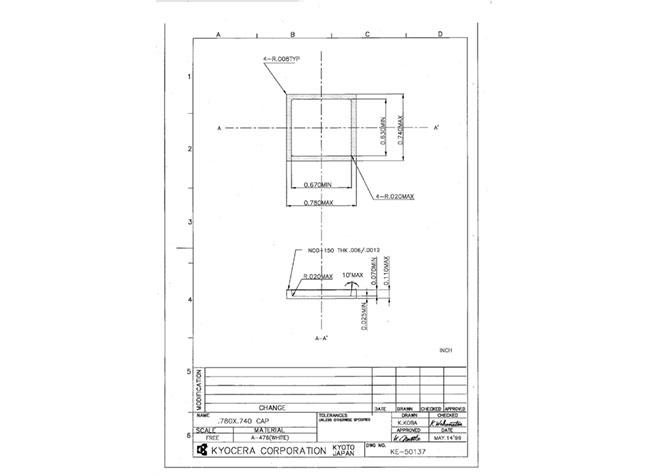

KE-50137
Drawings Download
Cup Shape Type 19.81 18.8 2.67 Epoxy A476 1.91

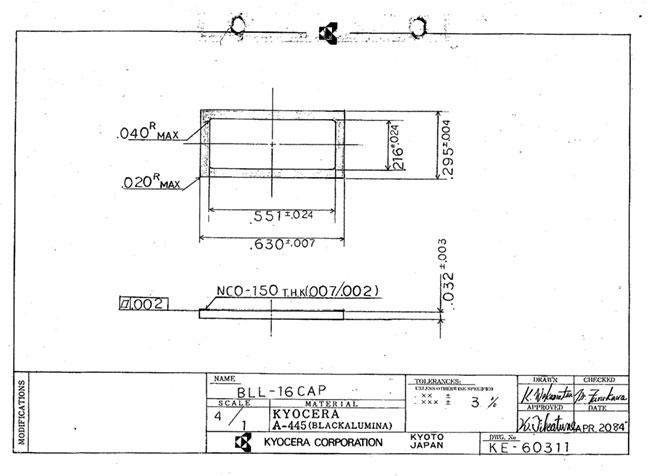

KE-60311
Drawings Download
Flat Type 16 7.49 0.81 Epoxy A445

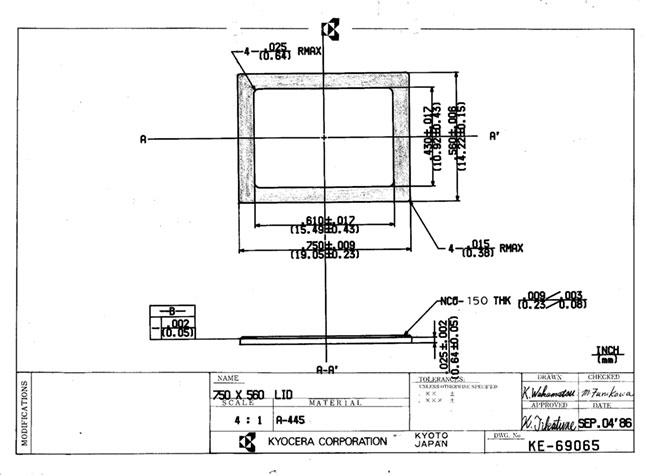

KE-69065
Drawings Download
Flat Type 19.05 14.22 0.64 Epoxy A445

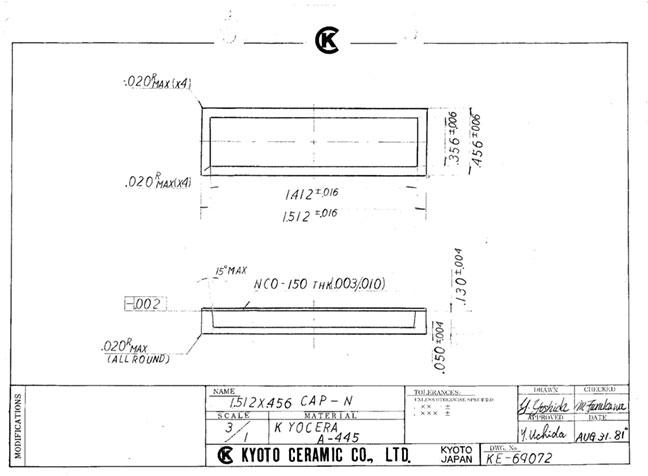

KE-69072
Drawings Download
Cup Shape Type 38.4 11.58 3.3 Epoxy A445 2.03

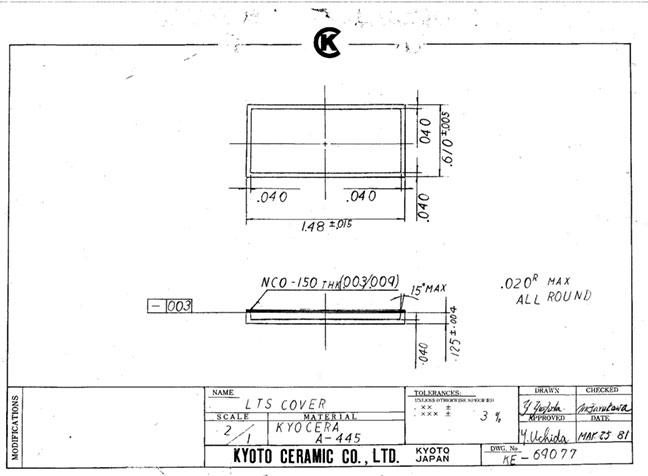

KE-69077
Drawings Download
Cup Shape Type 37.59 15.49 3.18 Epoxy A445 2.16

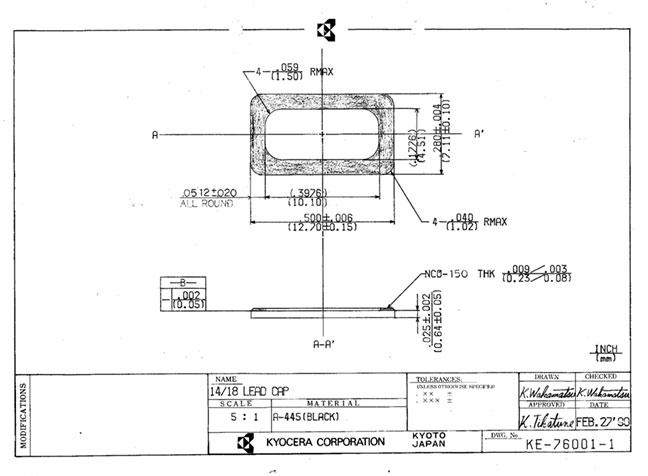

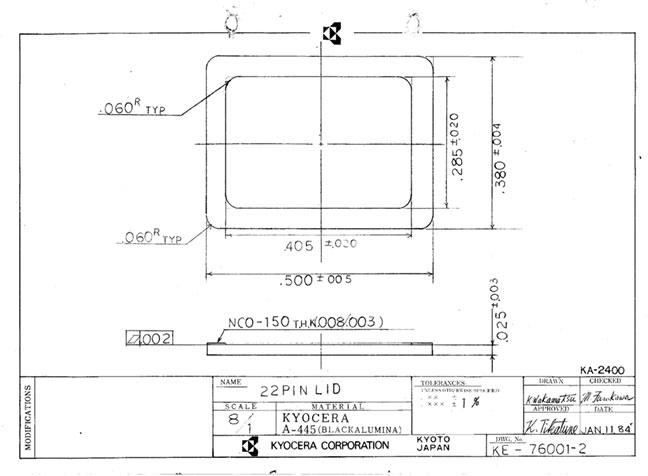

KE-76001-1
Drawings Download
Flat Type 12.7 7.11 0.64 Epoxy A445
KE-76001-2
Drawings Download
Flat Type 12.7 9.65 0.64 Epoxy A445

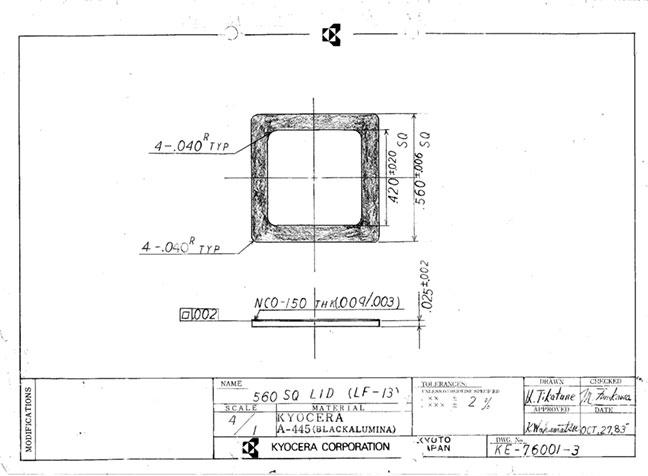

KE-76001-3
Drawings Download
Flat Type 14.22 14.22 0.64 Epoxy A445

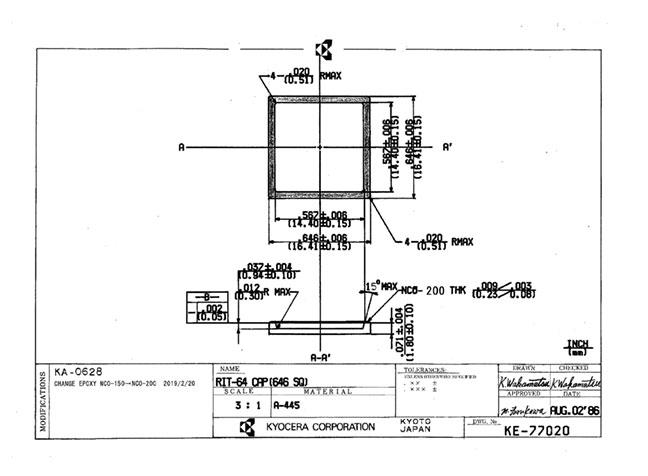

KE-77020
Drawings Download
Cup Shape Type 16.41 16.41 1.8 Epoxy A445 0.94

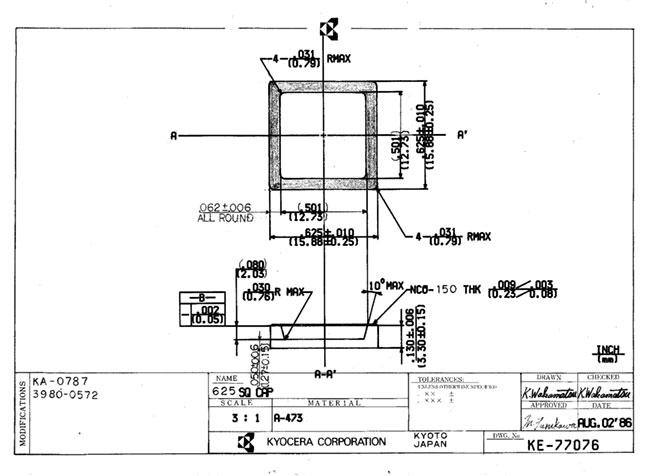

KE-77076
Drawings Download
Cup Shape Type 15.88 15.88 3.3 Epoxy A473 2.03

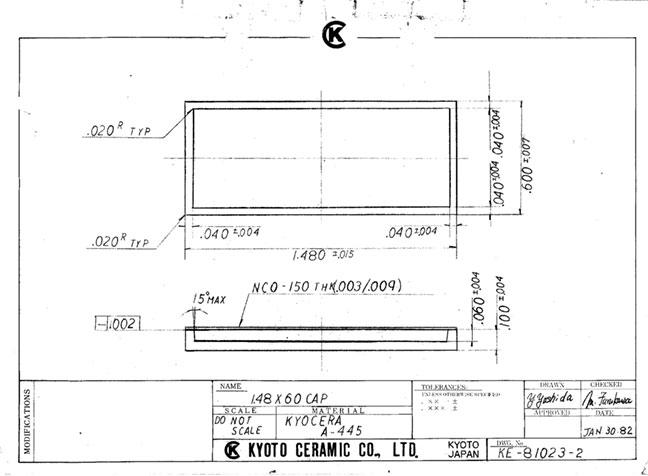

KE-81023-2
Drawings Download
Cup Shape Type 37.59 15.24 2.54 Epoxy A445 1.52

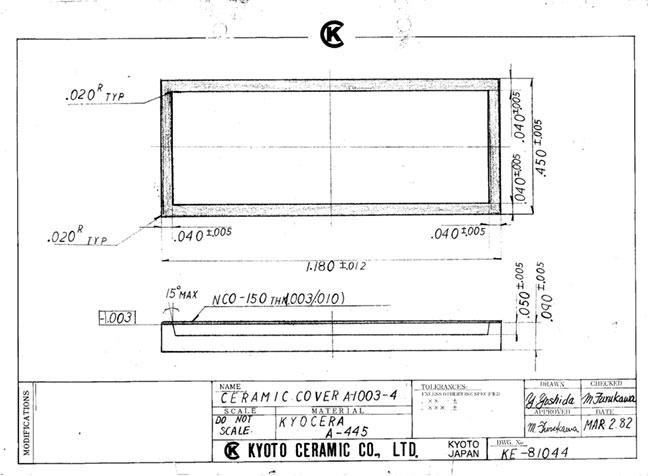

KE-81044
Drawings Download
Cup Shape Type 29.97 11.43 2.29 Epoxy A445 1.27
KE-81052-2
Drawings Download
Flat Type 14.86 14.86 0.64 Epoxy A445

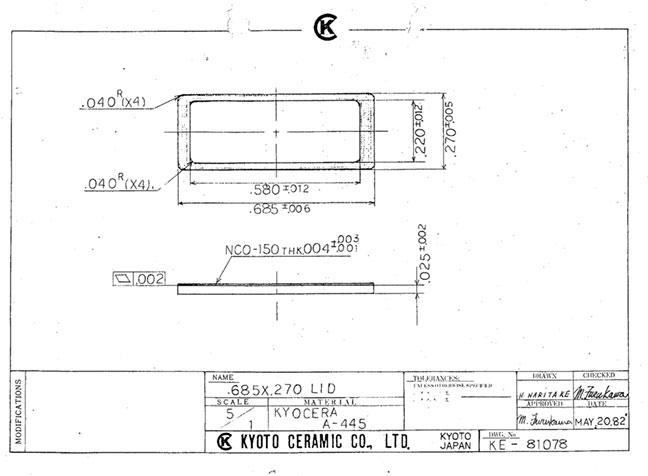

KE-81078
Drawings Download
Flat Type 17.4 6.86 0.64 Epoxy A445

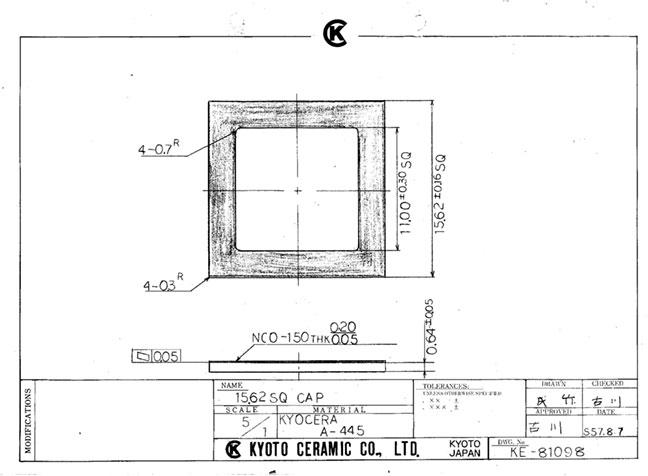

KE-81098
Drawings Download
Flat Type 15.62 15.62 0.64 Epoxy A445

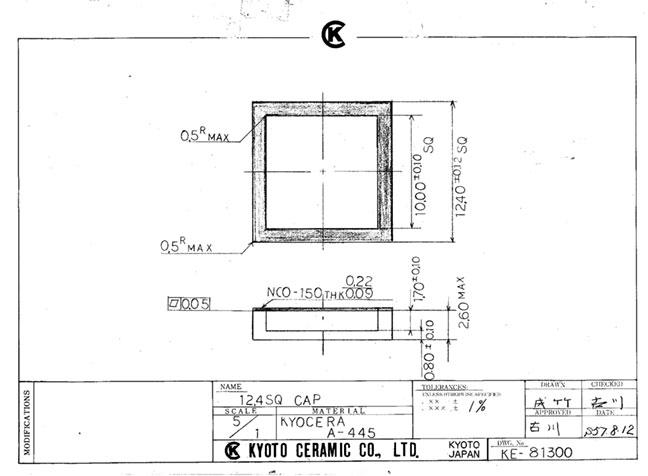

KE-81300
Drawings Download
Cup Shape Type 12.4 12.4 2.46 Epoxy A445 1.7

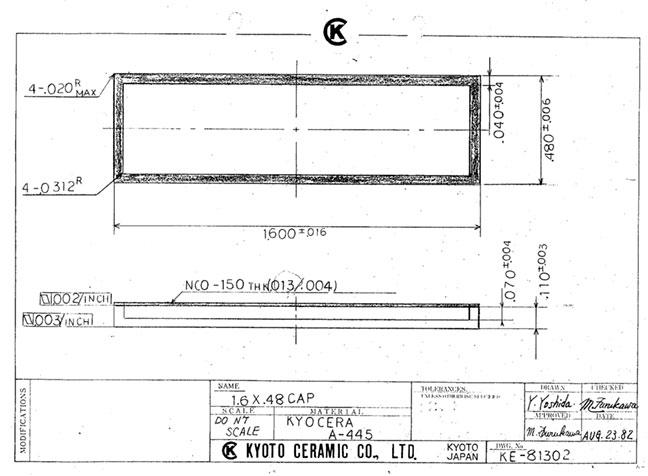

KE-81302
Drawings Download
Cup Shape Type 40.64 12.19 2.79 Epoxy A445 1.78
KE-81436
Drawings Download
Flat Type 10.67 10.67 0.64 Epoxy A445

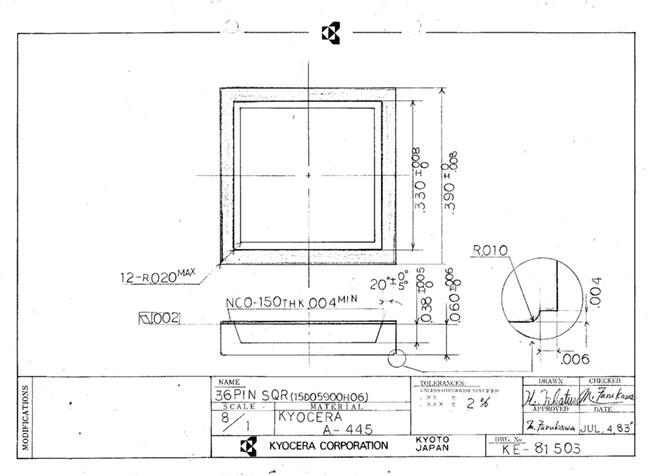

KE-81503
Drawings Download
Cup Shape Type 9.8 9.8 1.6 Epoxy A445 1.04

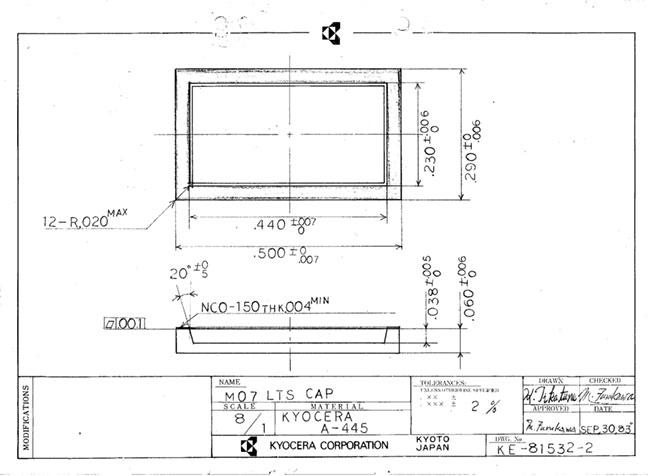

KE-81532-2
Drawings Download
Cup Shape Type 12.6 7.26 1.6 Epoxy A445 1.04

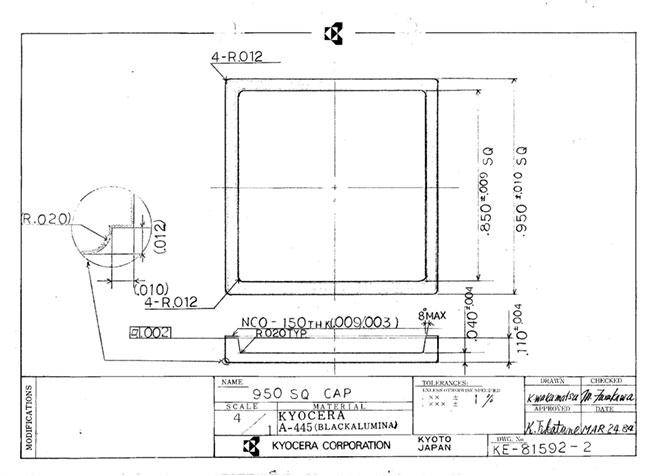

KE-81592-2
Drawings Download
Cup Shape Type 24.13 24.13 2.79 Epoxy A445 1.78

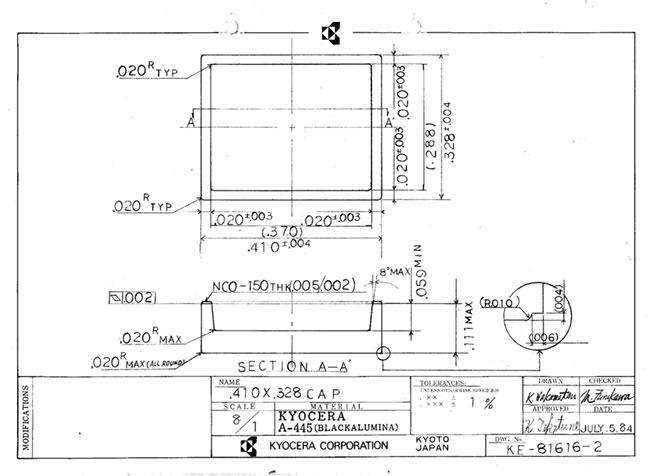

KE-81616-2
Drawings Download
Cup Shape Type 10.41 8.33 2.69 Epoxy A445 1.63

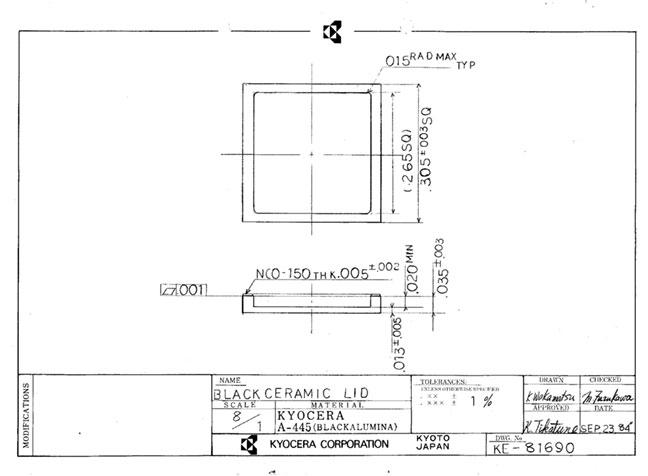

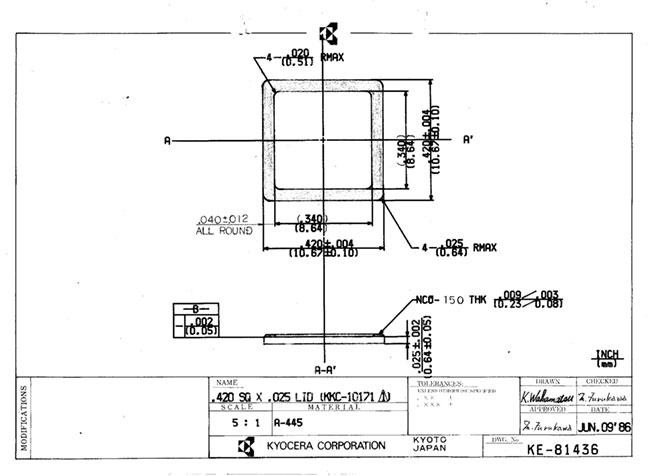

KE-81690
Drawings Download
Cup Shape Type 7.75 7.75 0.89 Epoxy A445 0.64

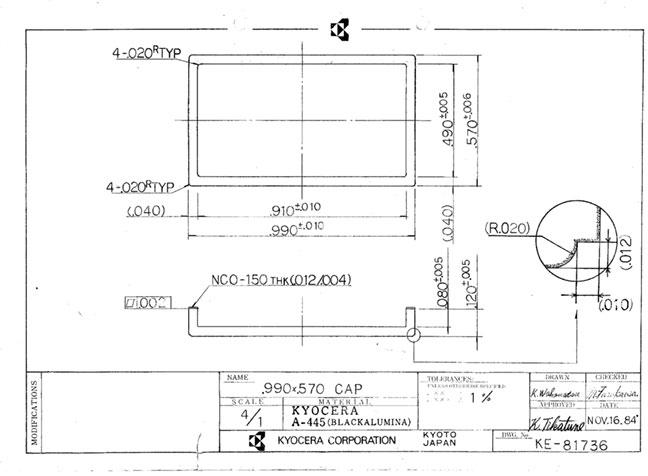

KE-81736
Drawings Download
Cup Shape Type 25.15 14.48 3.05 Epoxy A445 2.03
