Shape
Chip Assembly Method
Number of Terminals
Recommended Chip Size X(Minimum Value)[mm]
Recommended Chip Size X(Maximum Value)[mm]
Recommended Chip Size Y(Minimum Value)[mm]
Recommended Chip Size Y(Maximum Value)[mm]
Recommended Chip Size Z(Maximum Value)[mm]
Package Outer Dimension X[mm]
Package Outer Dimension Y[mm]
Package Thickness[mm]
Material or Material Code
Recommended Lid Thumbnail Number1
Recommended Lid Thumbnail1
Recommended Lid Thumbnail Number2
Recommended Lid Thumbnail2
I/O Pitch[mm]
Lead or Pin
Tie Bar
Lead Bending
Surface Finish
Die Attach Area Surface Finish
Sealing Surface
Thermal Conductivity

Drawing Number	Drawing	Shape	Chip Assembly Method	Number of Terminals	Recommended Chip Size X (Minimum Value)[mm]	Recommended Chip Size X (Maximum Value)[mm]	Recommended Chip Size Y (Minimum Value)[mm]	Recommended Chip Size Y (Maximum Value)[mm]	Recommended Chip Size Z (Maximum Value)[mm]	Package Outer Dimension SizeX[mm]	Package Outer Dimension SizeY[mm]	Package Thickness[mm]	Material or Material Code	Recommended Lid Thumbnail Number1	Recommended Lid Thumbnail1	I/O Pitch[mm]	Surface Finish	Die Attach Area Surface Finish	Sealing Surface

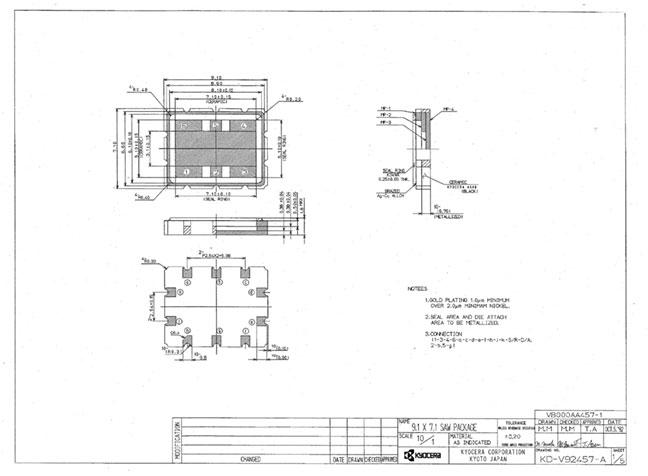

KD-V92457-A	Drawings Download	SMD Packages	Wire Bonding	10	5.1	6.7	1.1	2.7	0.38	9.1	7.1	1.8	A440	KD-X99589-01	Drawings Download	2.54	Ni/Au	Metallized	With Seal Ring

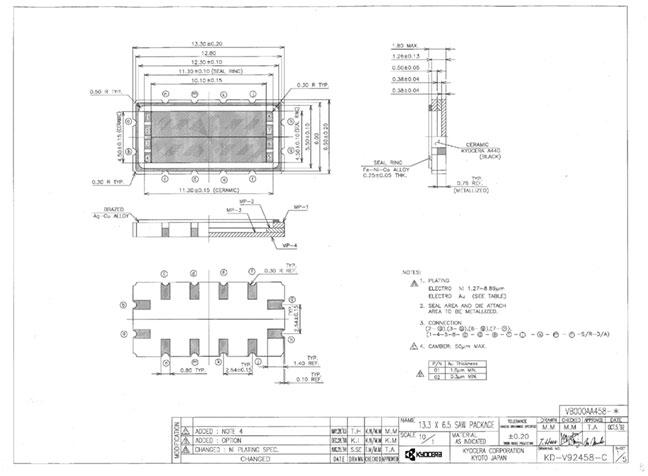

KD-V92458-C	Drawings Download	SMD Packages	Wire Bonding	12	8.1	9.7	2.5	4.1	0.38	13.3	6.5	1.8	A440	KD-X99592-01	Drawings Download	2.54	Ni/Au	Metallized	With Seal Ring

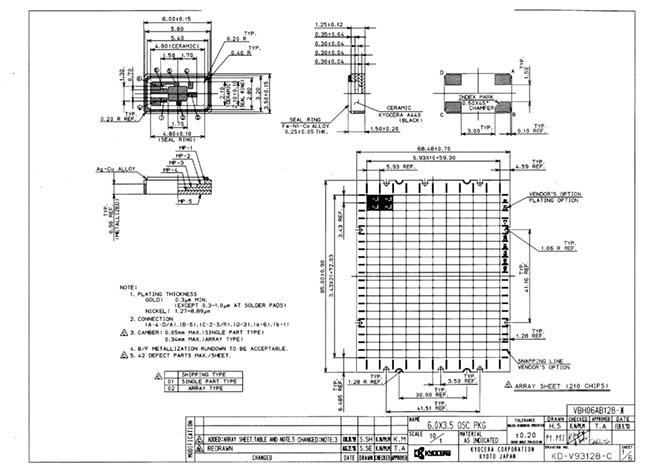

KD-V93128-C	Drawings Download	SMD Packages	Wire Bonding	4	2.8	4.4	0.1	1.7	0.3	6	3.5	1.5	A440	KD-XB8737	Drawings Download		Ni/Au	Metallized	With Seal Ring

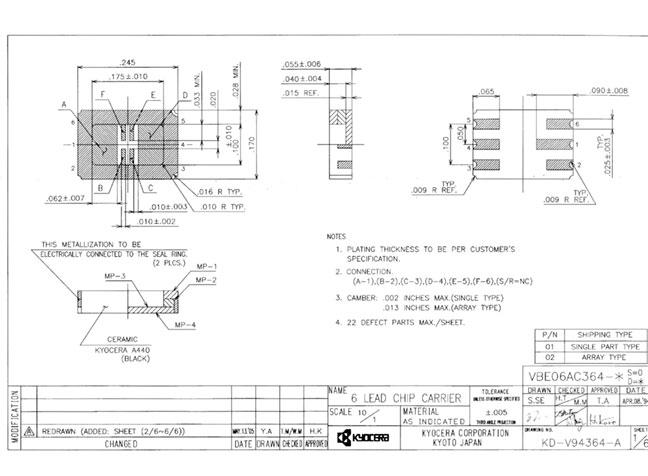

KD-V94364-A	Drawings Download	SMD Packages	Flip Chip	6	2.45	4.05	0.54	2.14	0.91	6.22	4.32	1.4	A440			1.27	Ni/Au	Metallized	With Seal Ring Metallization

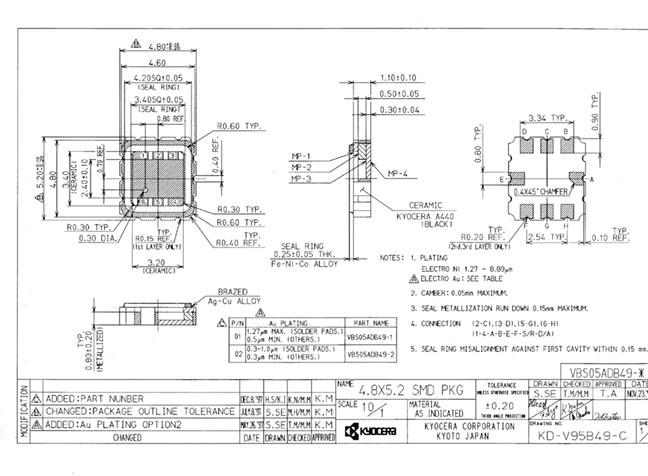

KD-V95B49-C	Drawings Download	SMD Packages	Wire Bonding	8	1.2	2.8	0.4	2	0.5	5.2	4.8	1.35	A440	KD-X99572-01	Drawings Download	1.27	Ni/Au	Metallized	With Seal Ring

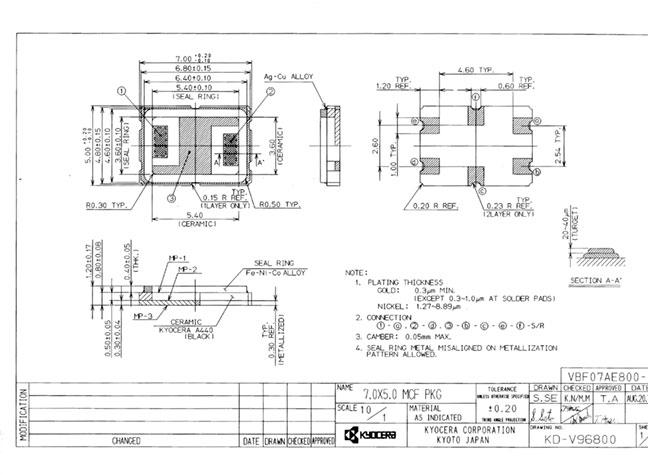

KD-V96800	Drawings Download	SMD Packages	Flip Chip	6	3.4	5	1.6	3.2	0.8	7	5	1.2	A440	KD-XB8741	Drawings Download	2.54	Ni/Au	Metallized	With Seal Ring

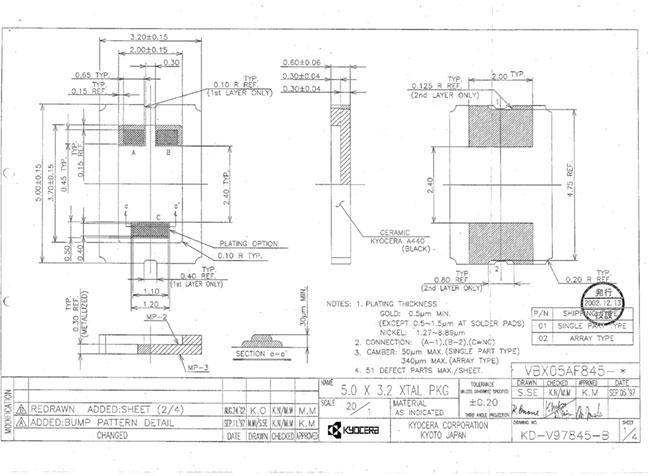

KD-V97845-B	Drawings Download	SMD Packages	Flip Chip	2	1.7	3.3		1.6	0.2	5	3.2	0.6	A440	A-000003-A1	Drawings Download		Ni/Au	Metallized	Without Seal Ring Metallization

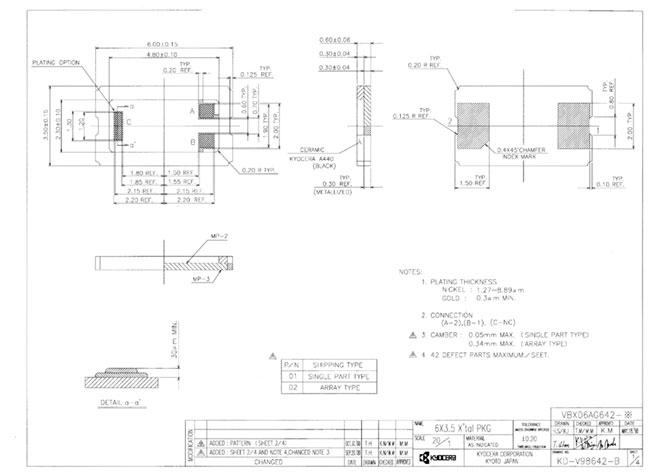

KD-V98642-B	Drawings Download	SMD Packages	Flip Chip	2	2.8	4.4	0.3	1.9	0.2	6	3.5	0.6	A440	A-000005-A1	Drawings Download		Ni/Au	Metallized	Without Seal Ring Metallization

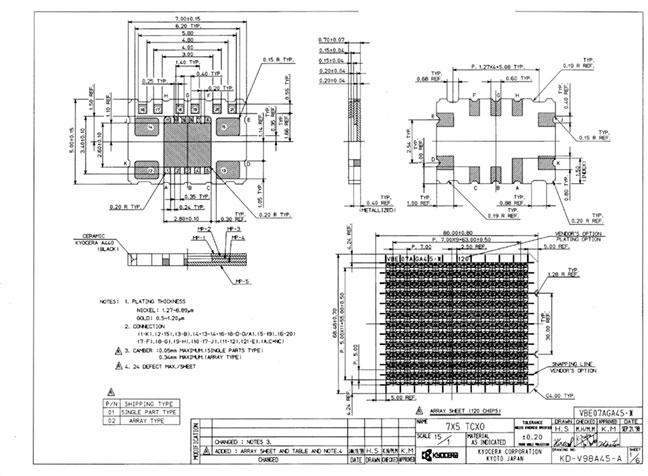

KD-V98A45-A	Drawings Download	SMD Packages	Wire Bonding	10	0.8	2.4	0.6	2.2	0.2	7	5	0.7	A440			1.27	Ni/Au	Metallized	Without Seal Ring Metallization

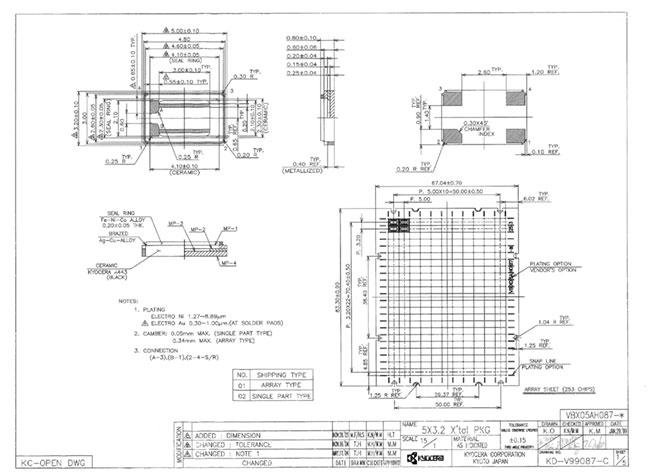

KD-V99087-C	Drawings Download	SMD Packages	Wire Bonding	4	2.1	3.7	0.3	1.9	0.15	5	3.2	0.8	A443	KD-XB8735	Drawings Download		Ni/Au	Metallized	With Seal Ring

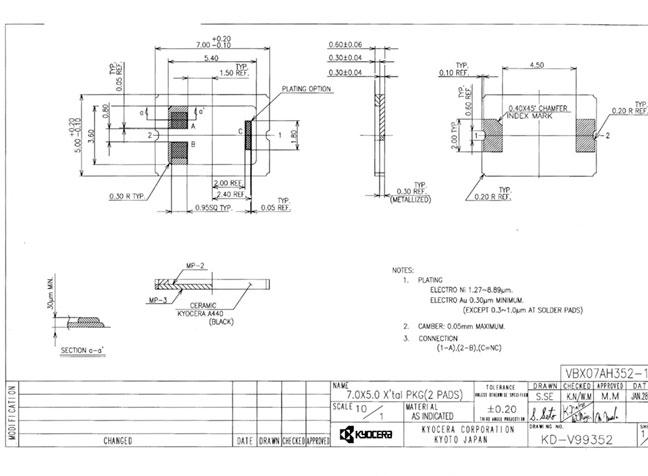

KD-V99352	Drawings Download	SMD Packages	Flip Chip	2	3.4	5	1.6	3.2	0.2	7	5	0.6	A440	A-000007-A1	Drawings Download		Ni/Au	Metallized	Without Seal Ring Metallization

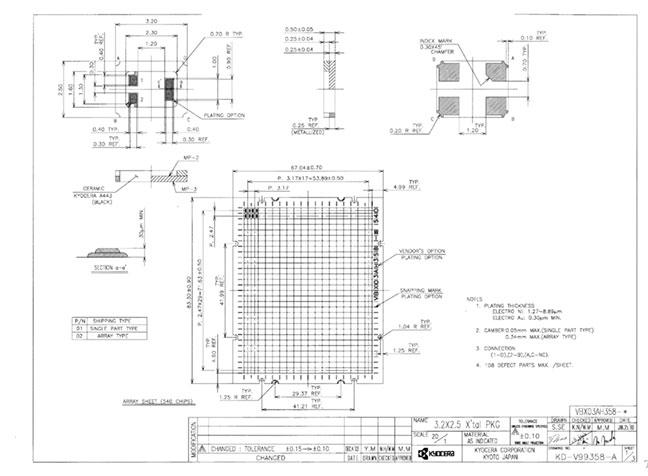

KD-V99358-A	Drawings Download	SMD Packages	Flip Chip	4	0.3	1.9		1.2	0.15	3.2	2.5	0.5	A443	A-000020-C1	Drawings Download		Ni/Au	Metallized	Without Seal Ring Metallization

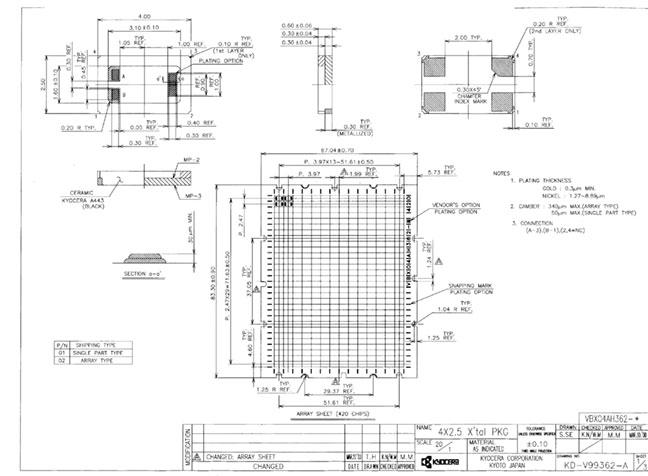

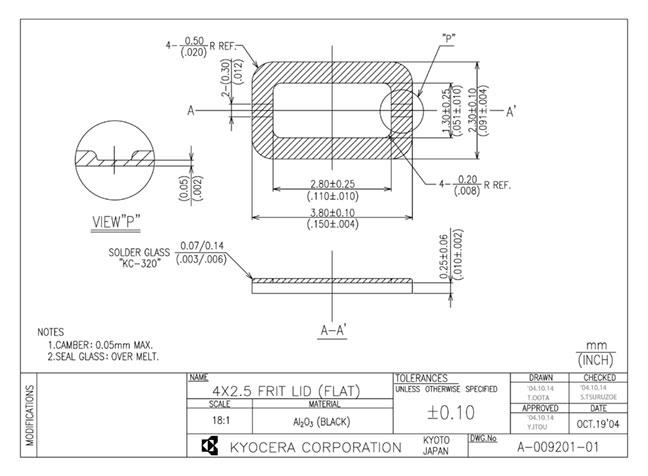

KD-V99362-A	Drawings Download	SMD Packages	Flip Chip	4	1.1	2.7		1.2	0.2	4	2.5	0.6	A443	A-009201-01	Drawings Download		Ni/Au	Metallized	Without Seal Ring Metallization

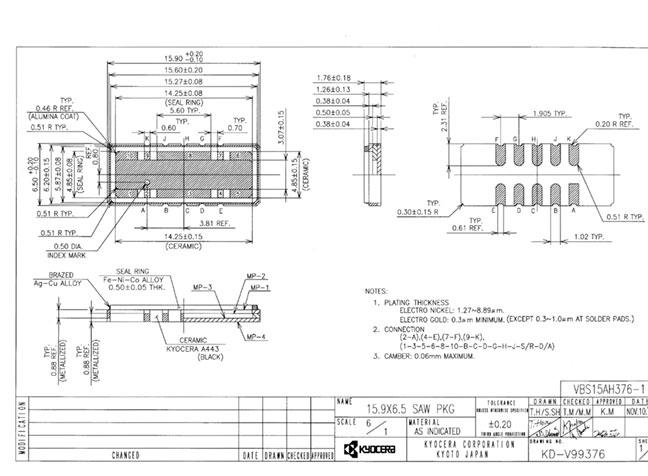

KD-V99376	Drawings Download	SMD Packages	Wire Bonding	10	12.25	13.85	1.07	2.67	0.5	15.9	6.5	1.76	A443	KD-X99E91-01	Drawings Download	1.9	Ni/Au	Metallized	With Seal Ring

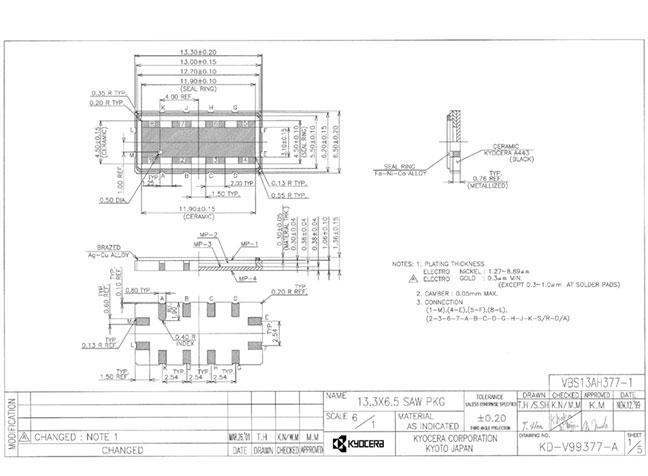

KD-V99377-A	Drawings Download	SMD Packages	Wire Bonding	12	9.9	11.5	1.1	2.7	0.38	13.3	6.5	1.36	A443	KD-X99E84-01	Drawings Download	2.54	Ni/Au	Metallized	With Seal Ring

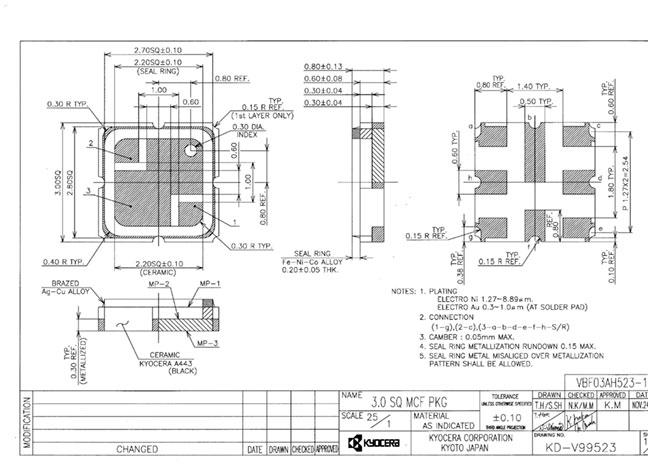

KD-V99523	Drawings Download	SMD Packages	Flip Chip	8	0.2	1.8	0.2	1.8	0.4	3	3	0.8	A443	KD-XB8796	Drawings Download	1.27	Ni/Au	Metallized	With Seal Ring

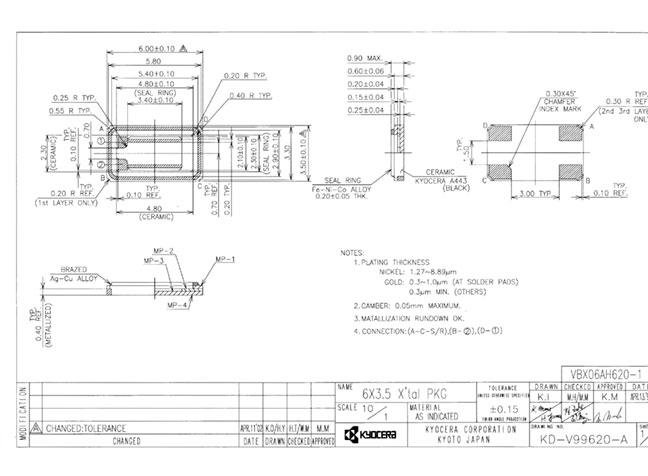

KD-V99620-A	Drawings Download	SMD Packages	Wire Bonding	4	2.8	4.4	0.3	1.9	0.15	6	3.5	0.9	A443	KD-XB8739	Drawings Download		Ni/Au	Metallized	With Seal Ring

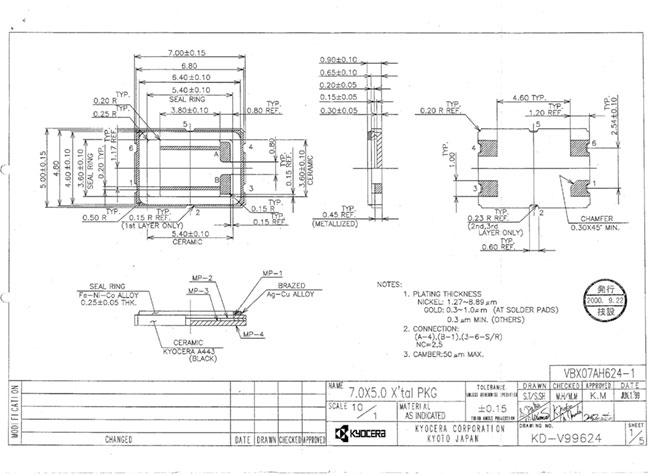

KD-V99624	Drawings Download	SMD Packages	Wire Bonding	4	3.4	5	1.6	3.2	0.15	7	5	0.9	A443	KD-XB8741	Drawings Download		Ni/Au	Metallized	With Seal Ring

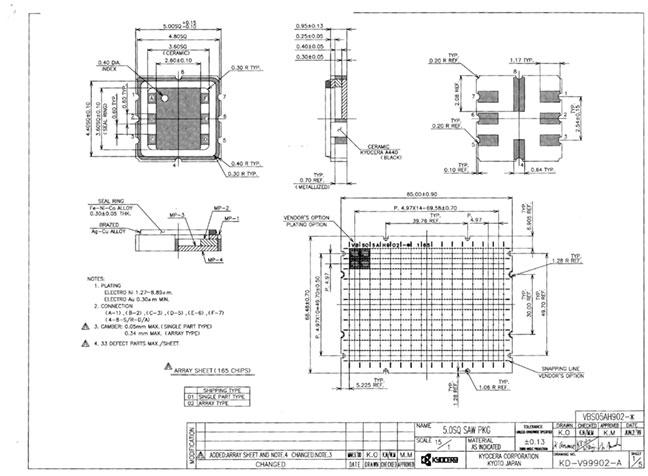

KD-V99902-A	Drawings Download	SMD Packages	Wire Bonding	8	1.6	3.2	0.6	2.2	0.4	5	5	1.25	A440	KD-X99587-01	Drawings Download	1.27	Ni/Au	Metallized	With Seal Ring

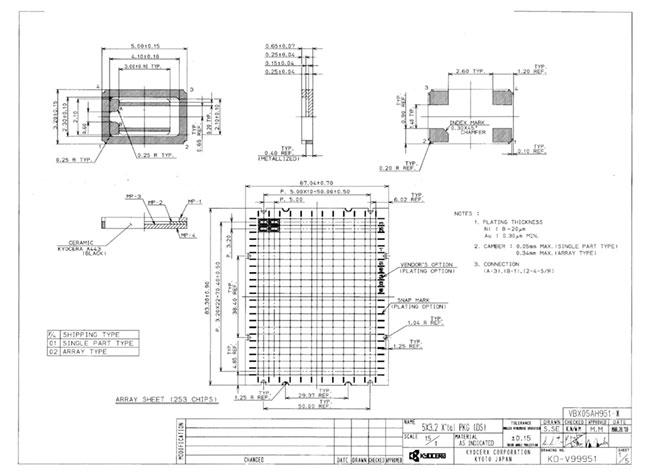

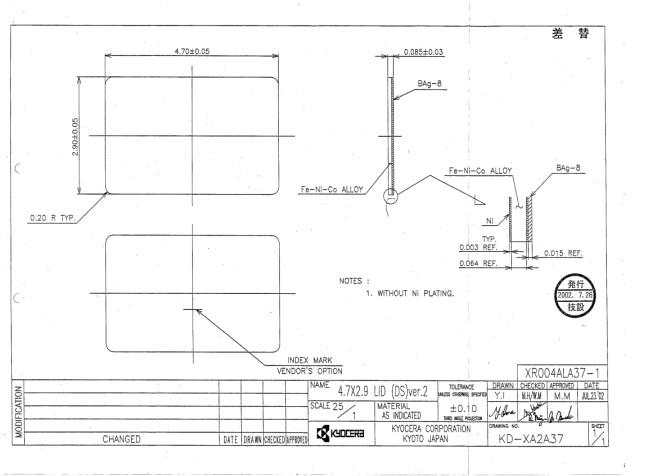

KD-V99951	Drawings Download	SMD Packages	Wire Bonding	4	2.1	3.7	0.3	1.9	0.15	5	3.2	0.65	A443	KD-XA2A37	Drawings Download		Ni/Au	Without Metallization	With Seal Ring Metallization

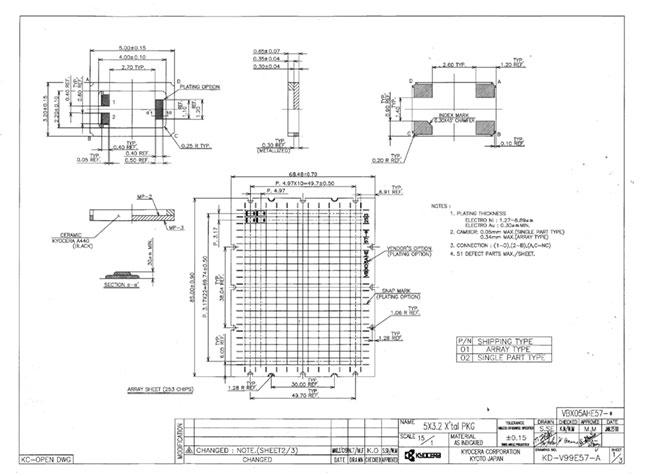

KD-V99E57-A	Drawings Download	SMD Packages	Flip Chip	4	2	3.6	0.2	1.8	0.25	5	3.2	0.65	A440	A-000011-A1	Drawings Download		Ni/Au	Metallized	Without Seal Ring Metallization

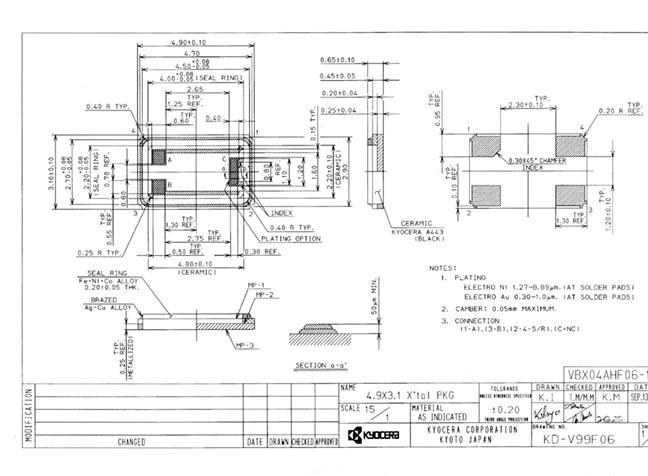

KD-V99F06	Drawings Download	SMD Packages	Flip Chip	4	2	3.6	0.2	1.8	0.3	4.9	3.1	0.65	A443	KD-XB8733	Drawings Download		Ni/Au	Metallized	With Seal Ring

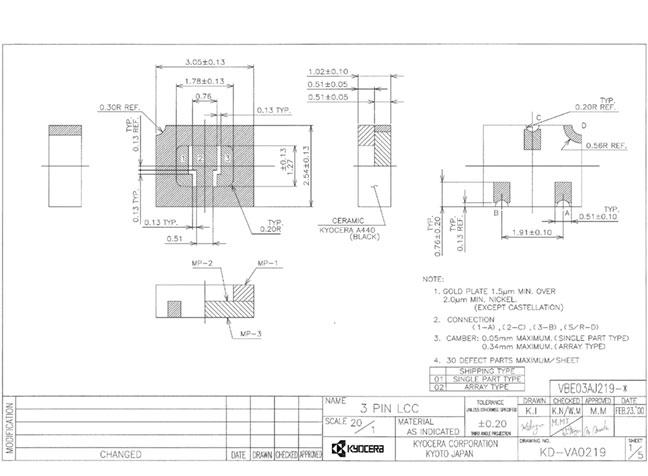

KD-VA0219	Drawings Download	SMD Packages	Flip Chip	3		1.38		0.87	0.41	3.05	2.54	1.02	A440				Ni/Au	Metallized	With Seal Ring Metallization
KD-VA0637	Drawings Download	SMD Packages	Flip Chip	4	3.4	5	1.6	3.2	0.2	7	5	0.6	A440	A-000007-A1	Drawings Download		Ni/Au	Metallized	Without Seal Ring Metallization
KD-VA0B08	Drawings Download	SMD Packages	Flip Chip	2	4	5.6	1	2.6	0.3	8	4.5	0.8	A440	A-009024-K4	Drawings Download		Ni/Au	Metallized	Without Seal Ring Metallization

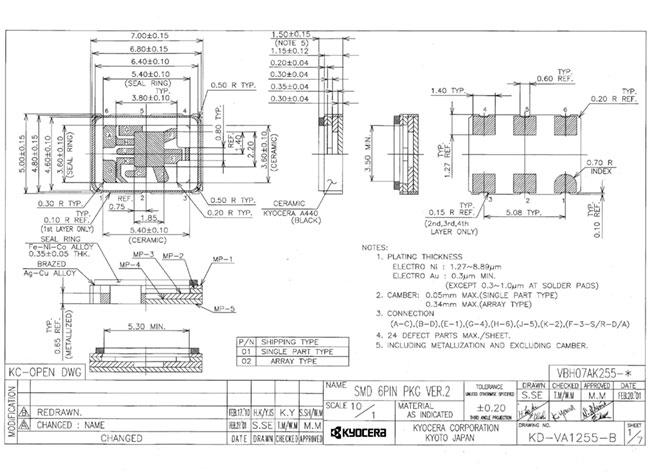

KD-VA1255-B	Drawings Download	SMD Packages	Wire Bonding	6	3.4	5	1.6	3.2	0.35	7	5	1.5	A440	KD-XB8741	Drawings Download	2.54	Ni/Au	Metallized	With Seal Ring

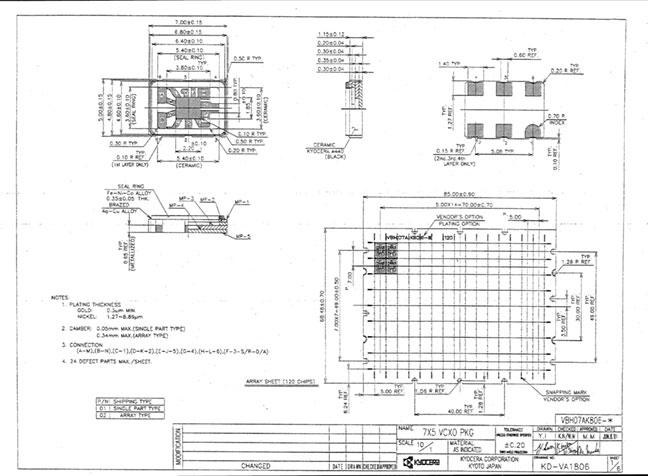

KD-VA1806	Drawings Download	SMD Packages	Wire Bonding	6	3.4	5	1.6	3.2	0.35	7	5	1.5	A440	KD-XB8741	Drawings Download	2.54	Ni/Au	Metallized	With Seal Ring

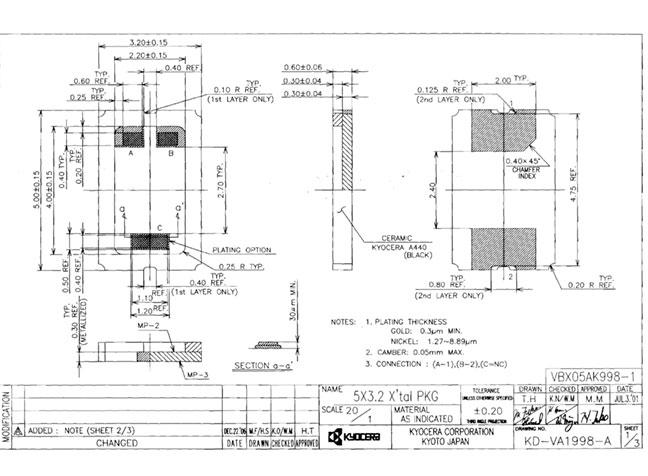

KD-VA1998-A	Drawings Download	SMD Packages	Flip Chip	2	2	3.6	0.2	1.8	0.2	5	3.2	0.6	A440	A-000011-A1	Drawings Download		Ni/Au	Metallized	Without Seal Ring Metallization

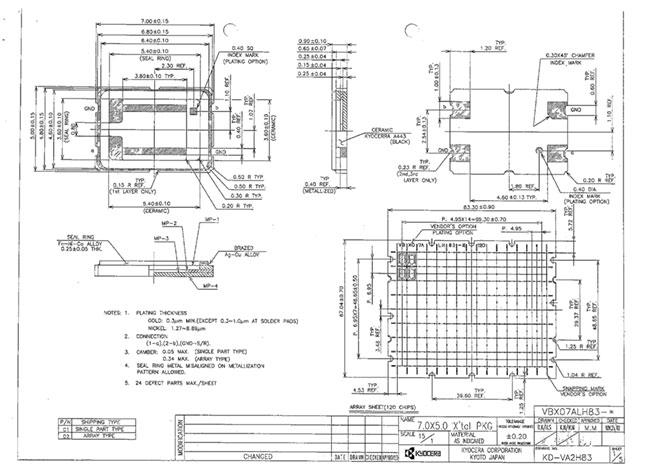

KD-VA2H83	Drawings Download	SMD Packages	Wire Bonding	4	3.4	5	1.6	3.2	0.15	7	5	0.9	A443	KD-XB8741	Drawings Download		Ni/Au	Metallized	With Seal Ring

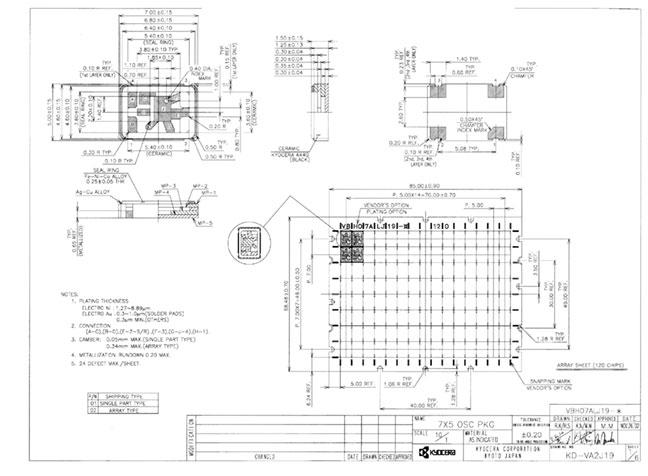

KD-VA2J19	Drawings Download	SMD Packages	Wire Bonding	4	3.4	5	1.6	3.2	0.35	7	5	1.5	A440	KD-XB8741	Drawings Download		Ni/Au	Metallized	With Seal Ring
