Results for
  • QFN（Quad Flat Non-Leaded Packages）
67results

* Membership registration (login) is required to download drawings.

Results per page
Change Columns
Appearance
Drawing Number
 Drawing Shape Chip Assembly Method
Number of Terminals
Recommended
Chip Size X
(Minimum Value)[mm]
Recommended
Chip Size X
(Maximum Value)[mm]
Recommended
Chip Size Y
(Minimum Value)[mm]
Recommended
Chip Size Y
(Maximum Value)[mm]
Recommended
Chip Size Z
(Maximum Value)[mm]
Package
Outer Dimension
SizeX[mm]
Package
Outer Dimension
SizeY[mm]
Package
Thickness[mm]
 Material or
Material Code
Recommended Lid
Thumbnail Number1
 Recommended
Lid
Thumbnail1
Recommended Lid
Thumbnail Number2
 Recommended
Lid
Thumbnail2
I/O
Pitch[mm]
 Lead or Pin Tie Bar Lead Bending Surface Finish Die Attach Area
Surface Finish		 Sealing Surface
Thermal Conductivity

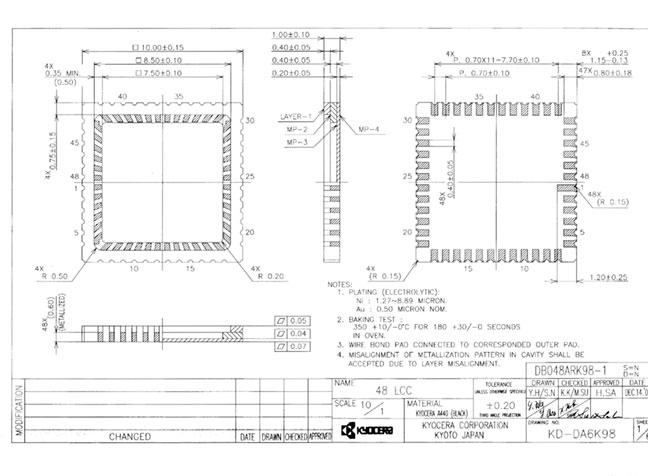

KD-DA6K98
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 48 5.5 7.1 5.5 7.1 0.4 10 10 1 A440 0.7 Ni/Au Without Metallization Without Seal Ring Metallization

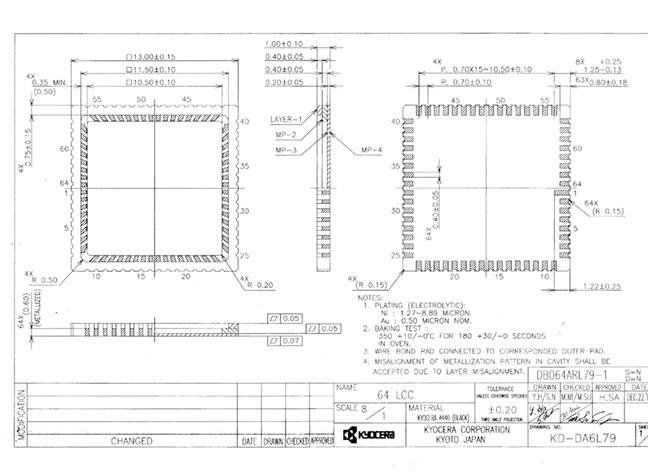

KD-DA6L79
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 64 8.5 10.1 8.5 10.1 0.4 13 13 1 A440 0.7 Ni/Au Without Metallization Without Seal Ring Metallization

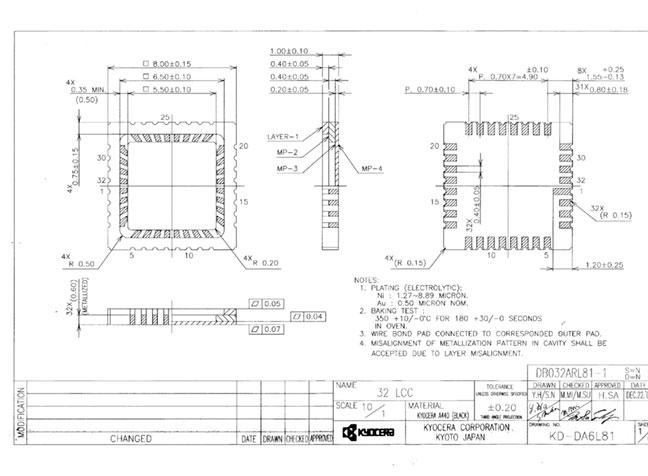

KD-DA6L81
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 32 3.5 5.1 3.5 5.1 0.4 8 8 1 A440 0.7 Ni/Au Without Metallization Without Seal Ring Metallization

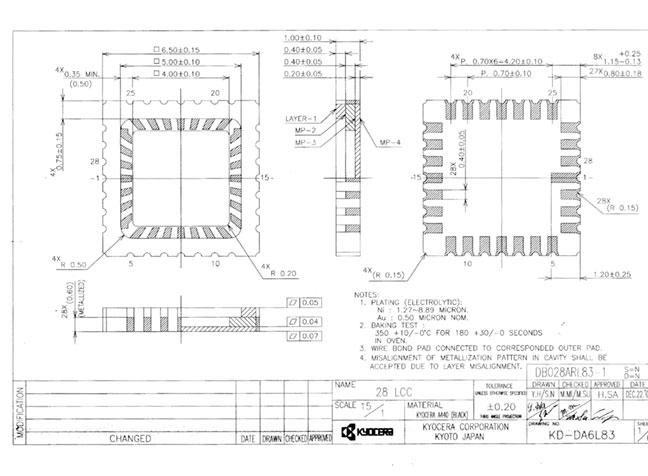

KD-DA6L83
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 28 2 3.6 2 3.6 0.4 6.5 6.5 1 A440 0.7 Ni/Au Without Metallization Without Seal Ring Metallization

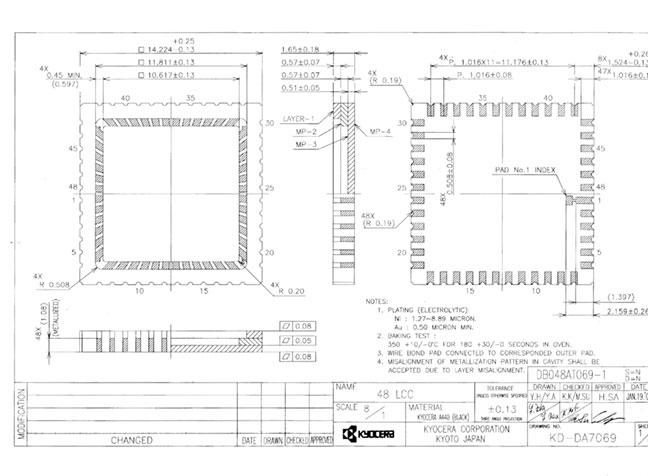

KD-DA7069
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 48 8.62 10.22 8.62 10.22 0.57 14.22 14.22 1.65 A440 1.02 Ni/Au Without Metallization Without Seal Ring Metallization

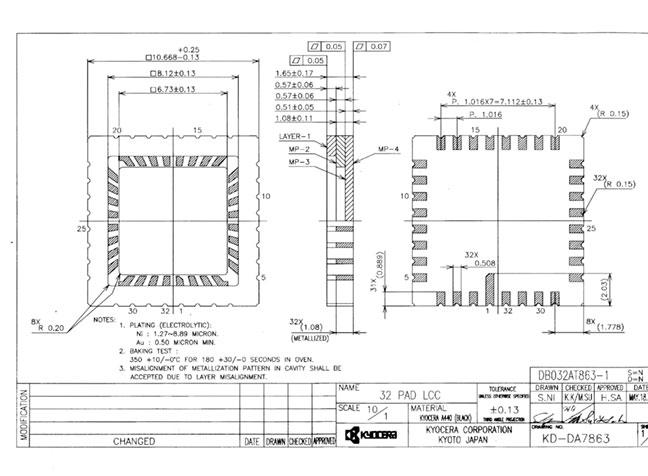

KD-DA7863
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 32 4.73 6.33 4.73 6.33 0.57 10.67 10.67 1.65 A440 1.02 Ni/Au Without Metallization Without Seal Ring Metallization
KD-DA9L09-B
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 48 8.62 10.22 8.62 10.22 0.5 14.22 14.22 1.5 A440 1.02 Ni/Au Metallized With Seal Ring Metallization

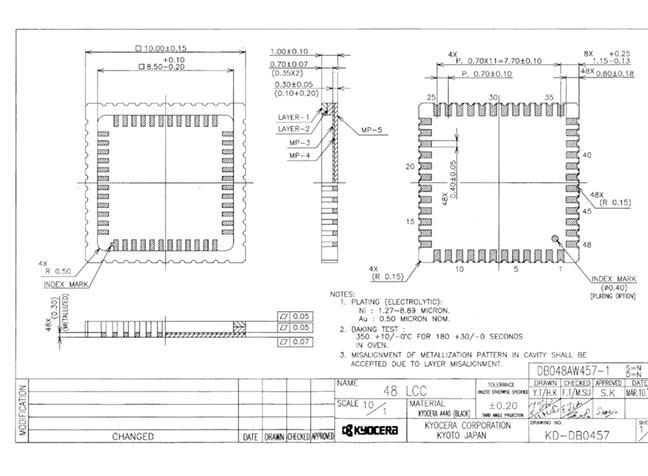

KD-DB0457
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 48 6.5 8.1 6.5 8.1 0.7 10 10 1 A440 0.7 Ni/Au Without Metallization Without Seal Ring Metallization

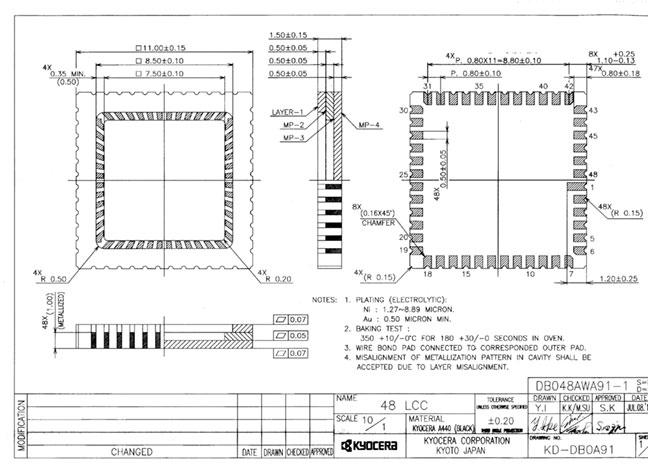

KD-DB0A91
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 48 5.5 7.1 5.5 7.1 0.5 11 11 1.5 A440 0.8 Ni/Au Without Metallization Without Seal Ring Metallization

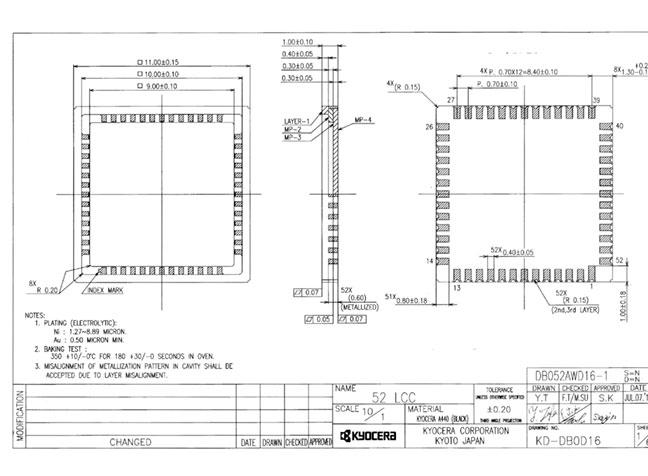

KD-DB0D16
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 52 7 8.6 7 8.6 0.3 11 11 1 A440 0.7 Ni/Au Without Metallization Without Seal Ring Metallization

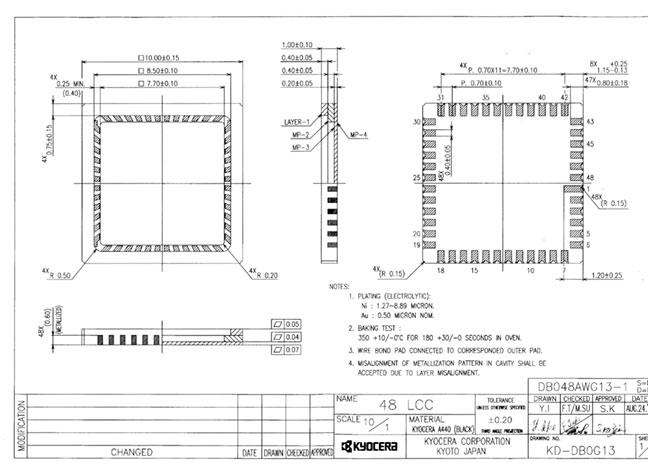

KD-DB0G13
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 48 5.7 7.3 5.7 7.3 0.4 10 10 1 A440 0.7 Ni/Au Without Metallization Without Seal Ring Metallization

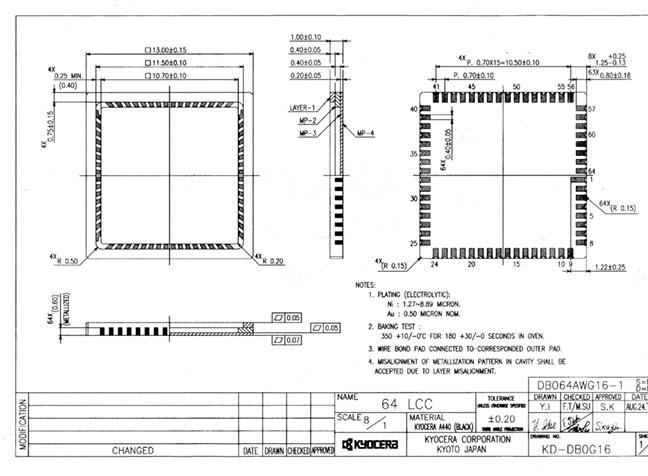

KD-DB0G16
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 64 8.7 10.3 8.7 10.3 0.4 13 13 1 A440 0.7 Ni/Au Without Metallization Without Seal Ring Metallization

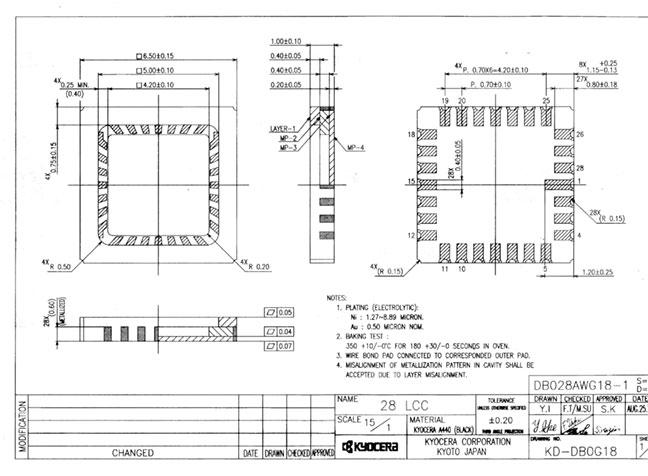

KD-DB0G18
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 28 2.2 3.8 2.2 3.8 0.4 6.5 6.5 1 A440 0.7 Ni/Au Without Metallization Without Seal Ring Metallization

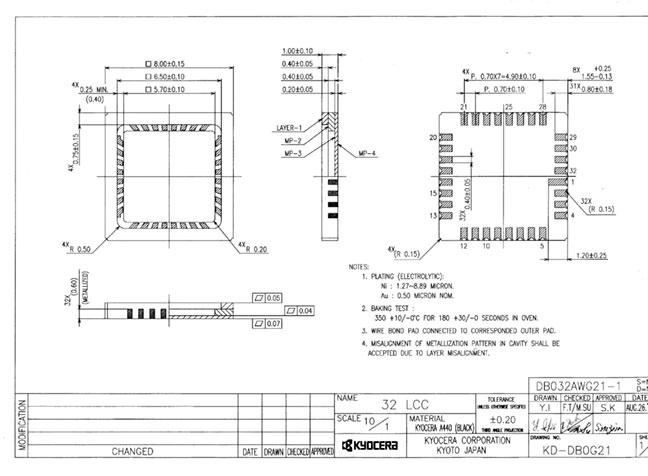

KD-DB0G21
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 32 3.7 5.3 3.7 5.3 0.4 8 8 1 A440 0.7 Ni/Au Without Metallization Without Seal Ring Metallization

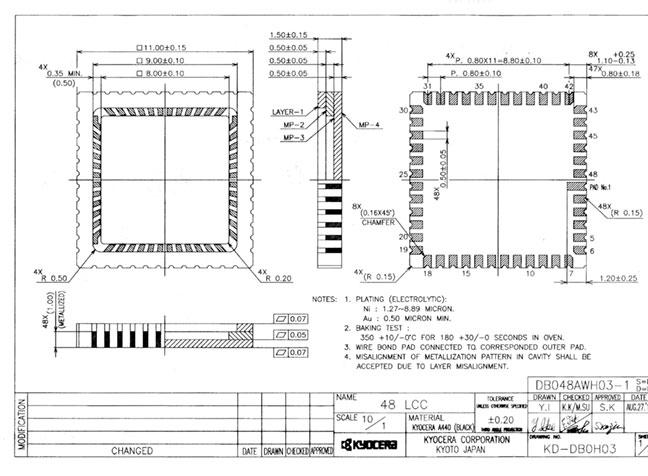

KD-DB0H03
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 48 6 7.6 6 7.6 0.5 11 11 1.5 A440 0.8 Ni/Au Without Metallization Without Seal Ring Metallization

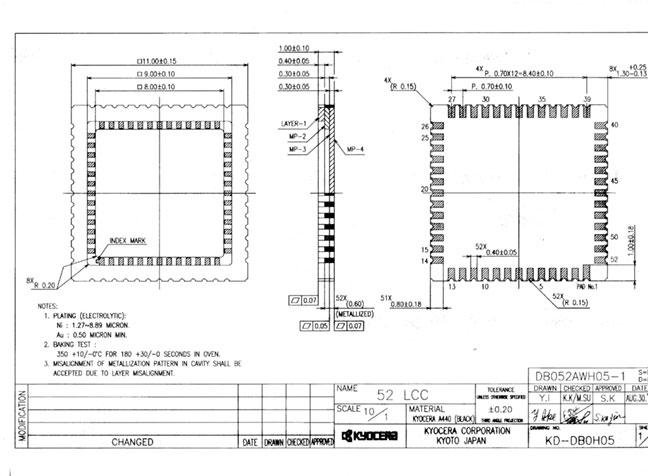

KD-DB0H05
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 52 6 7.6 6 7.6 0.3 11 11 1 A440 0.7 Ni/Au Without Metallization Without Seal Ring Metallization

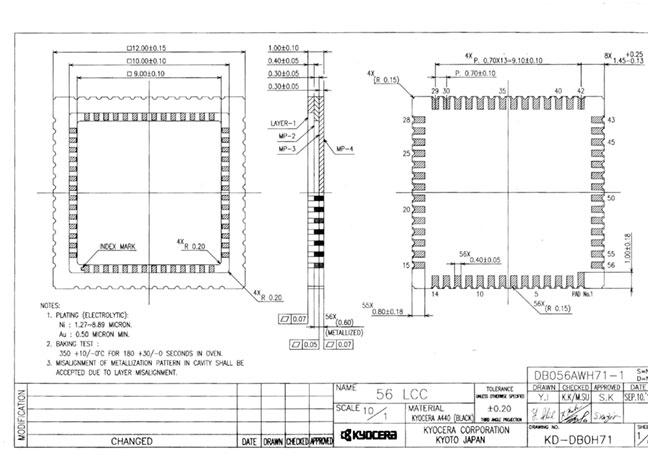

KD-DB0H71
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 56 7 8.6 7 8.6 0.3 12 12 1 A440 0.7 Ni/Au Without Metallization Without Seal Ring Metallization

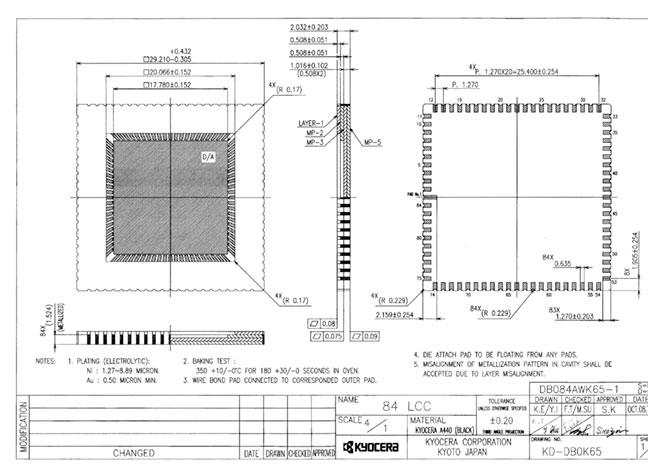

KD-DB0K65
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 84 15.78 17.38 15.78 17.38 0.51 29.21 29.21 2.03 A440 1.27 Ni/Au Metallized Without Seal Ring Metallization

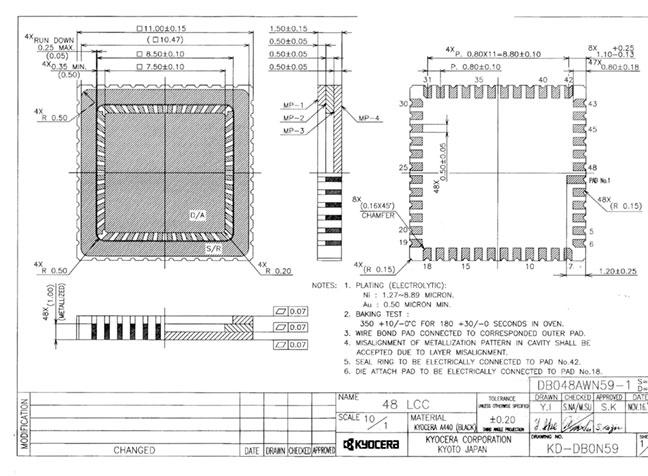

KD-DB0N59
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 48 5.5 7.1 5.5 7.1 0.5 11 11 1.5 A440 0.8 Ni/Au Metallized With Seal Ring Metallization

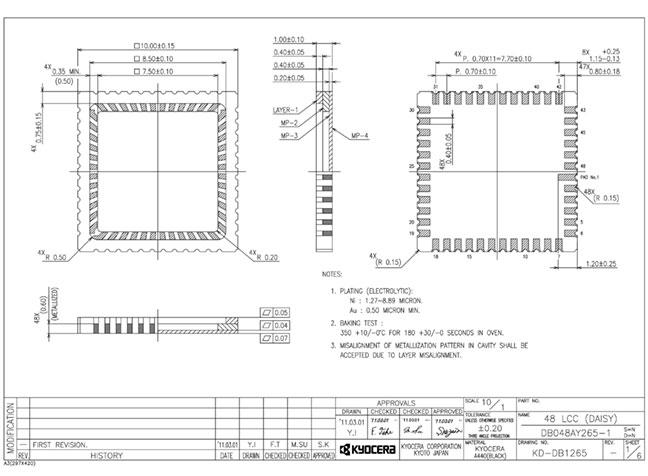

KD-DB1265
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 48 5.5 7.1 5.5 7.1 0.4 10 10 1 A440 0.7 Ni/Au Without Metallization Without Seal Ring Metallization

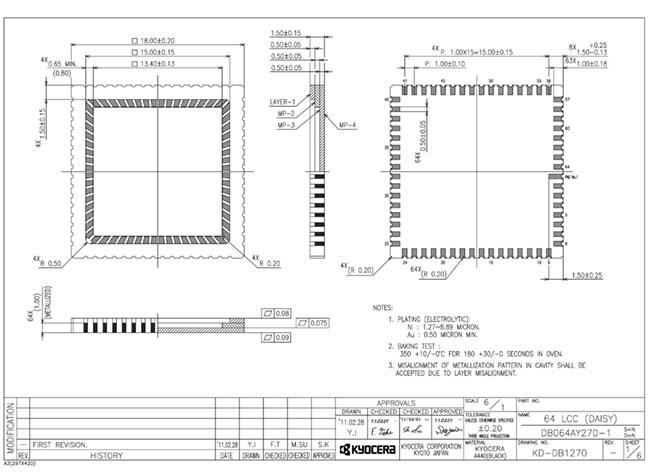

KD-DB1270
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 64 11.4 13 11.4 13 0.5 18 18 1.5 A440 1 Ni/Au Without Metallization Without Seal Ring Metallization
KD-DB1M51-B
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 48 8.62 10.22 8.62 10.22 0.5 14.22 14.22 1.5 A440 1.02 Ni/Au Metallized With Seal Ring Metallization

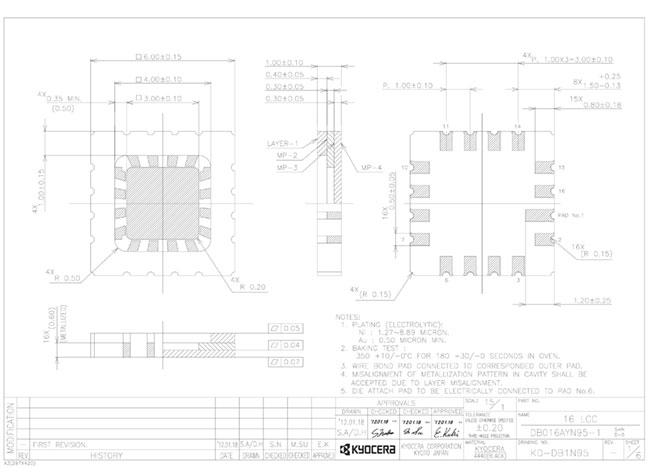

KD-DB1N95
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 16 1 2.6 1 2.6 0.3 6 6 1 A440 1 Ni/Au Metallized Without Seal Ring Metallization

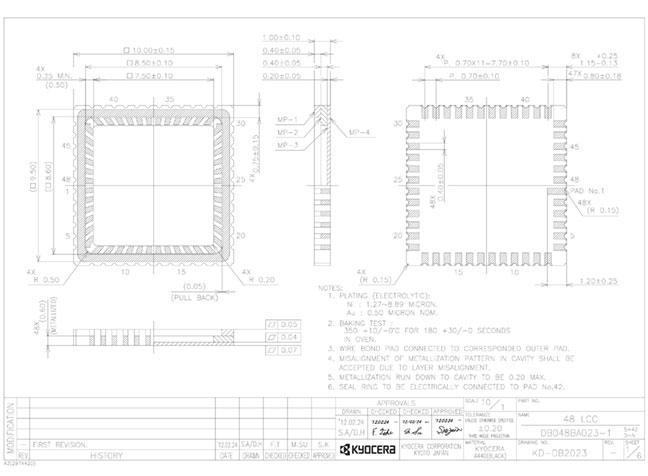

KD-DB2023
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 48 5.5 7.1 5.5 7.1 0.4 10 10 1 A440 0.7 Ni/Au Without Metallization With Seal Ring Metallization
KD-DB2528
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 32 3.5 5.1 3.5 5.1 0.4 8 8 1 A440 0.7 Ni/Au Without Metallization With Seal Ring Metallization

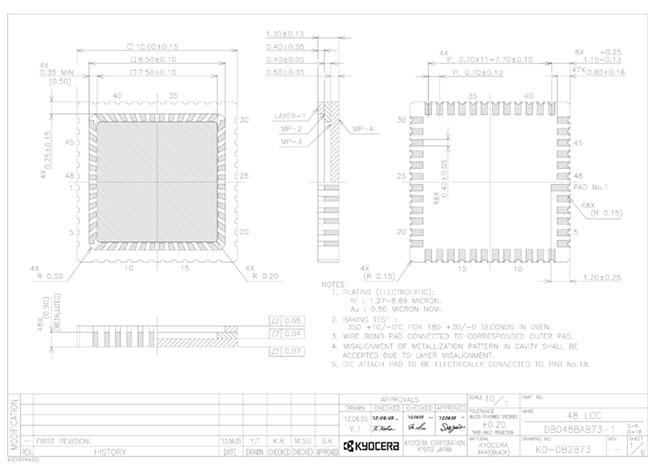

KD-DB2B73
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 48 5.5 7.1 5.5 7.1 0.4 10 10 1.3 A440 0.7 Ni/Au Metallized Without Seal Ring Metallization

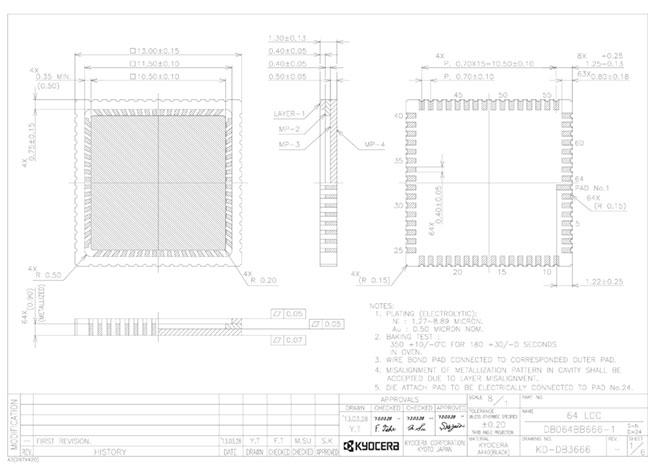

KD-DB3666
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 64 8.5 10.1 8.5 10.1 0.4 13 13 1.3 A440 0.7 Ni/Au Metallized Without Seal Ring Metallization

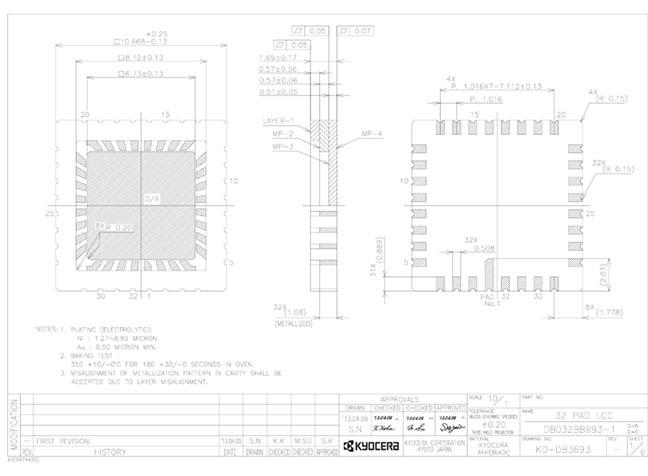

KD-DB3693
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 32 4.73 6.33 4.73 6.33 0.57 10.67 10.67 1.65 A440 1.02 Ni/Au Metallized Without Seal Ring Metallization

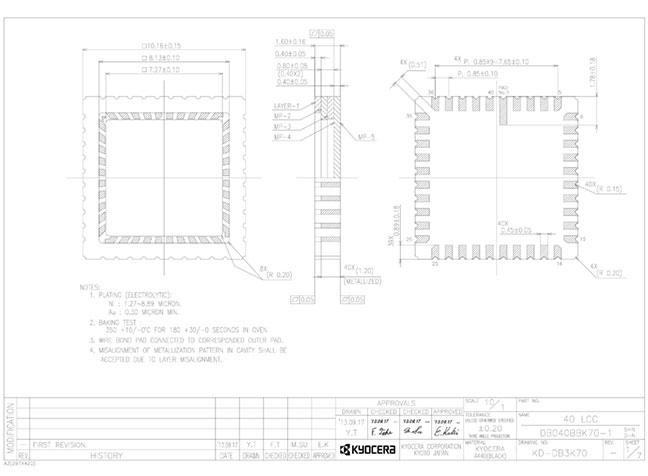

KD-DB3K70
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 40 5.27 6.87 5.27 6.87 0.8 10.16 10.16 1.6 A440 0.85 Ni/Au Without Metallization Without Seal Ring Metallization

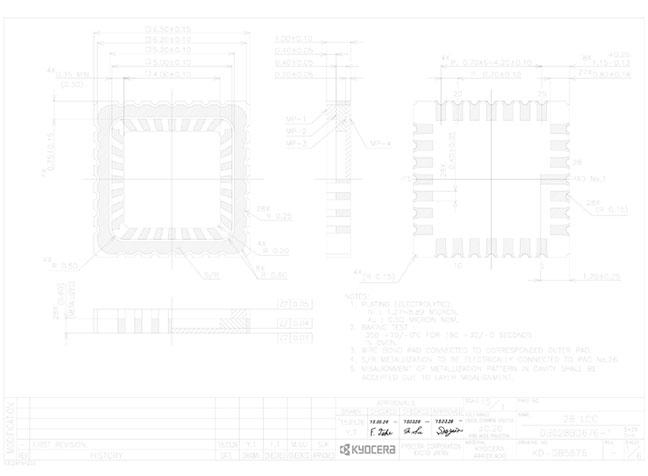

KD-DB5676
Drawings Download
QFN（Quad Flat Non-Leaded Packages） Wire Bonding 28 2 3.6 2 3.6 0.4 6.5 6.5 1 A440 0.7 Ni/Au Without Metallization With Seal Ring Metallization
67results
Results per page
Page 1 of 3
Next

* The appearance is an image. It may differ from the actual content.

* PDF file size is 19-2,500KB.
