Results for
  • LED Packages
7results

* Membership registration (login) is required to download drawings.

Results per page
Change Columns
Appearance
Drawing Number
 Drawing Shape Chip Assembly Method
Number of Terminals
Recommended
Chip Size X
(Minimum Value)[mm]
Recommended
Chip Size X
(Maximum Value)[mm]
Recommended
Chip Size Y
(Minimum Value)[mm]
Recommended
Chip Size Y
(Maximum Value)[mm]
Recommended
Chip Size Z
(Maximum Value)[mm]
Package
Outer Dimension
SizeX[mm]
Package
Outer Dimension
SizeY[mm]
Package
Thickness[mm]
 Material or
Material Code
Recommended Lid
Thumbnail Number1
 Recommended
Lid
Thumbnail1
Recommended Lid
Thumbnail Number2
 Recommended
Lid
Thumbnail2
I/O
Pitch[mm]
 Lead or Pin Tie Bar Lead Bending Surface Finish Die Attach Area
Surface Finish		 Sealing Surface
Thermal Conductivity

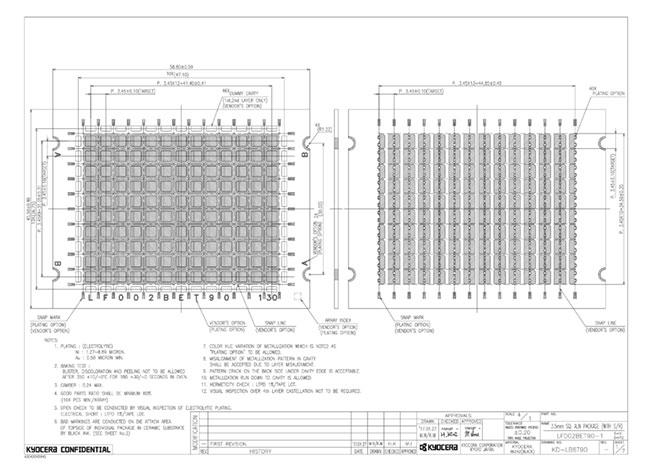

KD-LB6T90
Drawings Download
LED Packages Wire Bonding 2 0.4 2 0.4 2 0.6 3.45 3.45 0.9 AN242 Ni/Au Metallized With Seal Ring Metallization 150

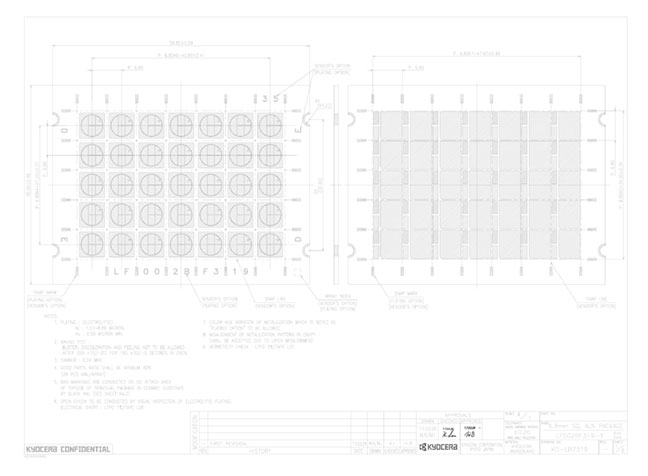

KD-LB7319
Drawings Download
LED Packages Flip Chip 2 2.9 4.5 2.9 4.5 0.3 6.8 6.8 1 AN242 Ni/Au Metallized With Seal Ring Metallization 150

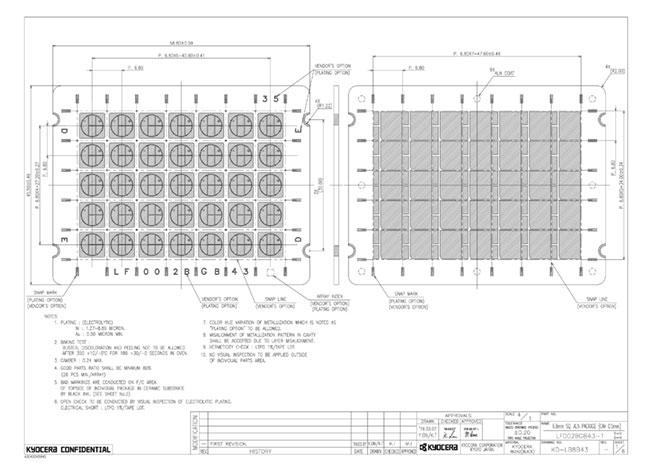

KD-LB8B43
Drawings Download
LED Packages Flip Chip 2 2.9 4.5 2.9 4.5 0.4 6.8 6.8 1.1 AN242 Ni/Au Metallized With Seal Ring Metallization 150

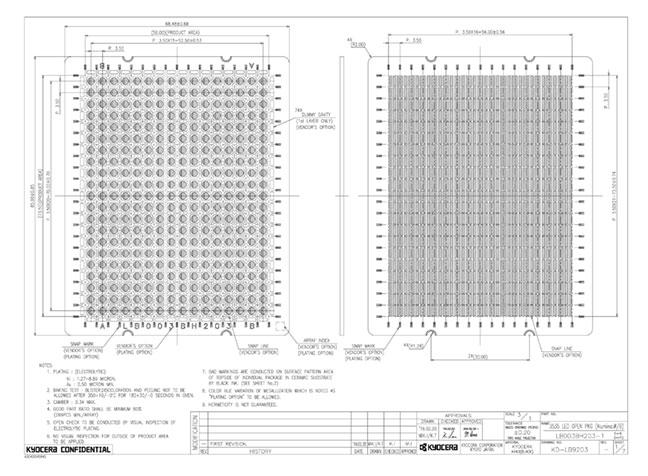

KD-LB9203
Drawings Download
LED Packages Wire Bonding 3 0.06 1.66 0.06 1.66 0.6 3.5 3.5 1.1 A440 Ni/Au Metallized Without Seal Ring Metallization 14

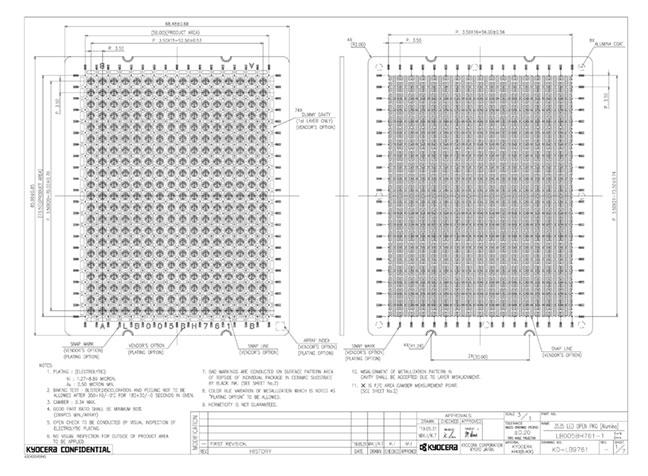

KD-LB9761
Drawings Download
LED Packages Flip Chip 5 0.06 1.66 0.06 1.66 0.53 3.5 3.5 1.13 A440 Ni/Au Metallized Without Seal Ring Metallization 14

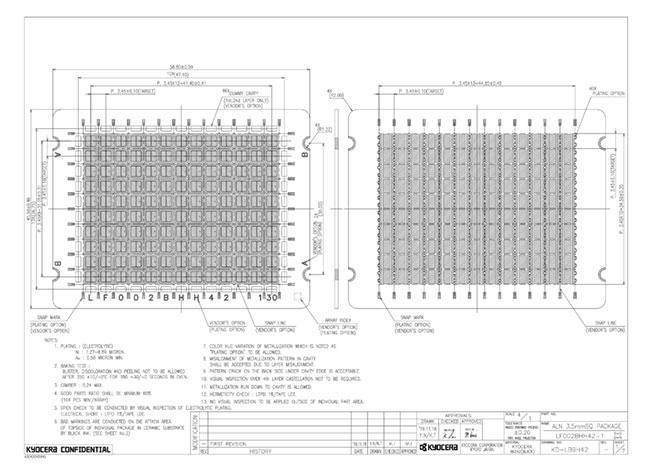

KD-LB9H42
Drawings Download
LED Packages Flip Chip 2 0.4 2 0.4 2 0.3 3.45 3.45 0.8 AN242 Ni/Au Metallized With Seal Ring Metallization 150

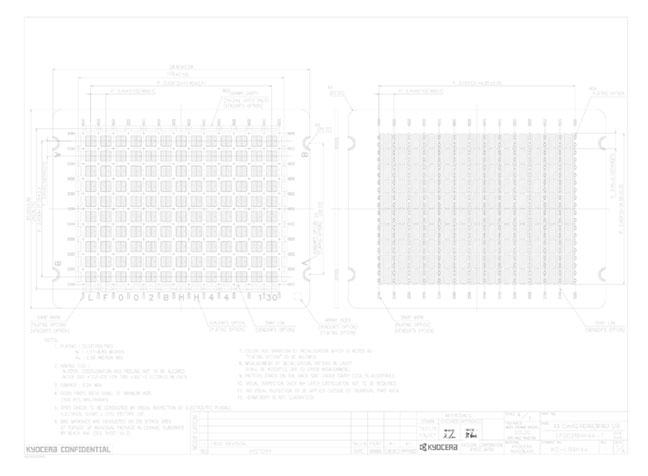

KD-LB9H44
Drawings Download
LED Packages Flip Chip 2 0.4 2 0.4 2 0.3 3.45 3.45 0.8 AN242 Ni/Au Metallized Without Seal Ring Metallization 150
7results
Results per page
Page 1 of 1

* The appearance is an image. It may differ from the actual content.

* PDF file size is 19-2,500KB.

0Drawing Number Selected
