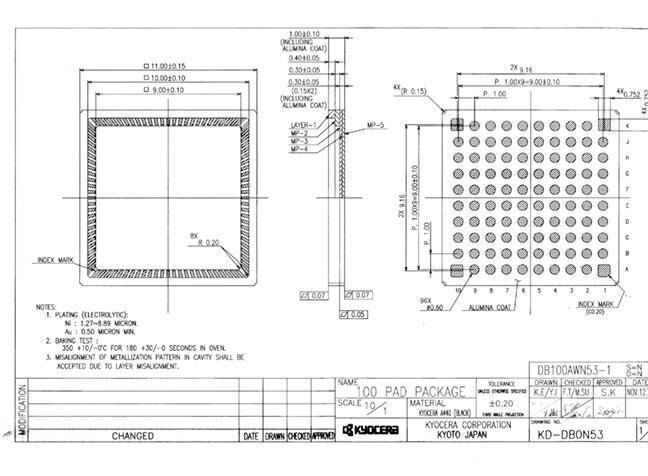

KD-DB0N53
Drawings Download
LandGridArray® Wire Bonding 100 7 8.6 7 8.6 0.3 11 11 1 A440 1 Ni/Au Without Metallization Without Seal Ring Metallization

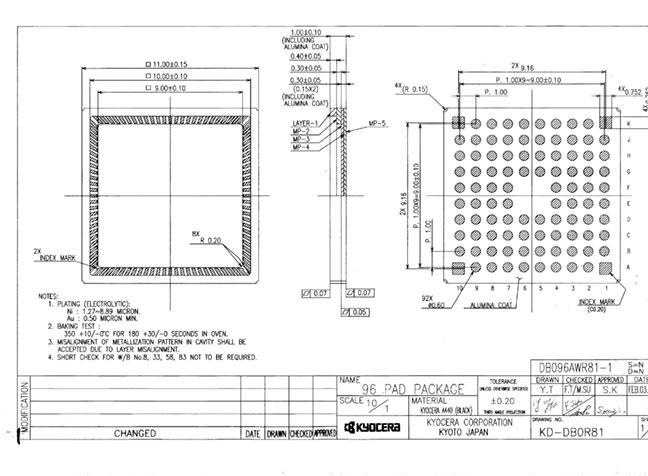

KD-DB0R81
Drawings Download
LandGridArray® Wire Bonding 96 7 8.6 7 8.6 0.3 11 11 1 A440 1 Ni/Au Without Metallization Without Seal Ring Metallization

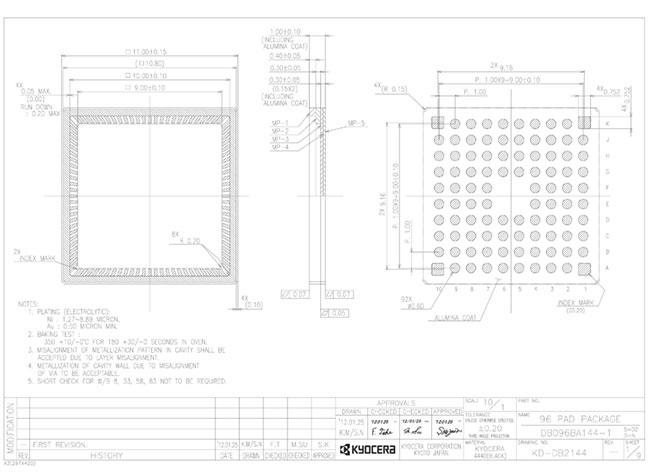

KD-DB2144
Drawings Download
LandGridArray® Wire Bonding 96 7 8.6 7 8.6 0.3 11 11 1 A440 1 Ni/Au Without Metallization With Seal Ring Metallization
3results
Results per page
Page 1 of 1

* The appearance is an image. It may differ from the actual content.

* PDF file size is 19-2,500KB.
