Results for
  • DIP (Dual Inline Packages)
56results

* Membership registration (login) is required to download drawings.

Results per page
Change Columns
Appearance
Drawing Number
 Drawing Shape Chip Assembly Method
Number of Terminals
Recommended
Chip Size X
(Minimum Value)[mm]
Recommended
Chip Size X
(Maximum Value)[mm]
Recommended
Chip Size Y
(Minimum Value)[mm]
Recommended
Chip Size Y
(Maximum Value)[mm]
Recommended
Chip Size Z
(Maximum Value)[mm]
Package
Outer Dimension
SizeX[mm]
Package
Outer Dimension
SizeY[mm]
Package
Thickness[mm]
 Material or
Material Code
Recommended Lid
Thumbnail Number1
 Recommended
Lid
Thumbnail1
Recommended Lid
Thumbnail Number2
 Recommended
Lid
Thumbnail2
I/O
Pitch[mm]
 Lead or Pin Tie Bar Lead Bending Surface Finish Die Attach Area
Surface Finish		 Sealing Surface
Thermal Conductivity
KD-75092-G
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 16 4.1 5.7 2.32 3.92 0.51 20.32 7.87 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

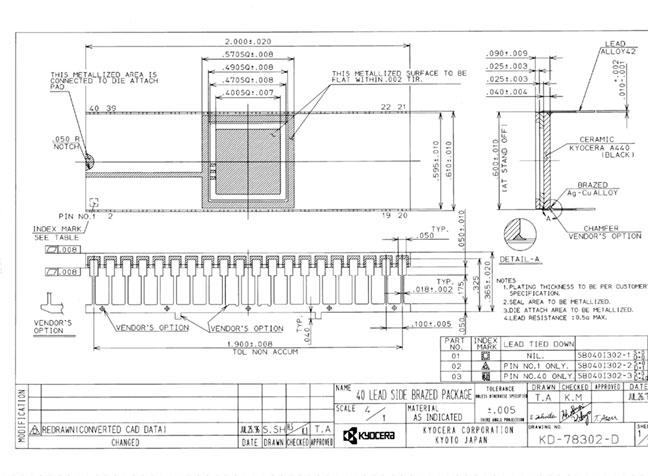

KD-78302-D
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 40 8.16 9.76 8.16 9.76 0.64 50.8 15.49 2.29 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization
KD-78467-A
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 16 4.1 5.7 2.32 3.92 0.51 20.32 7.87 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization
KD-82714-D
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 16 16.54 18.14 4.86 6.46 1.14 22.61 12.45 3.05 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Without Metallization With Seal Ring

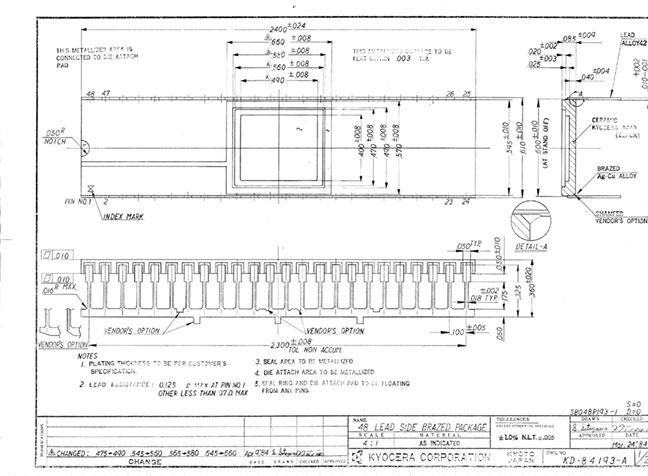

KD-84193-A
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 48 10.25 11.85 8.16 9.76 0.64 60.96 15.49 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization
KD-84523-B
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 28 4.35 5.95 5.62 7.22 0.64 35.56 15.49 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

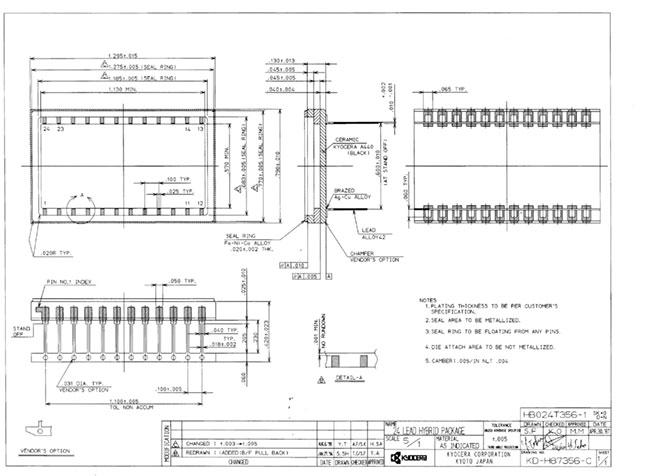

KD-H87356-C
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 24 26.7 28.3 12.48 14.08 1.14 32.89 20.07 3.3 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Without Metallization With Seal Ring

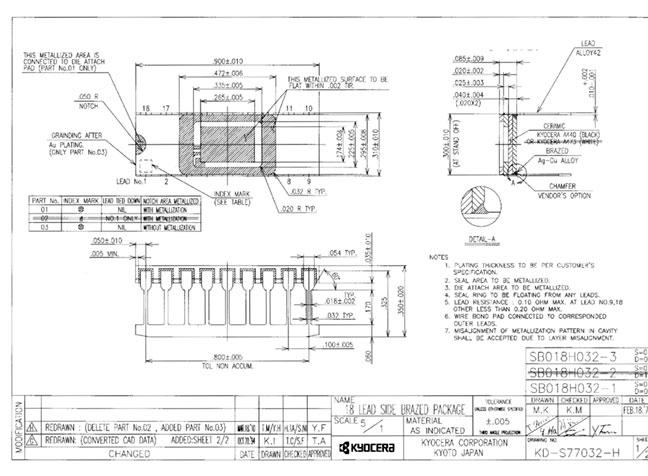

KD-S77032-H
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 18 4.73 6.33 2.42 4.02 0.64 22.86 7.87 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

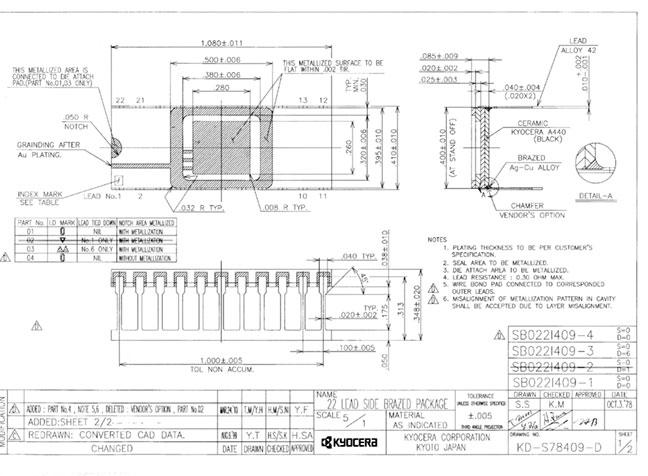

KD-S78409-D
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 22 5.11 6.71 4.6 6.2 0.64 27.43 10.41 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization
KD-S79325-A
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 18 3.59 5.19 2.32 3.92 0.51 22.86 7.87 2.03 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

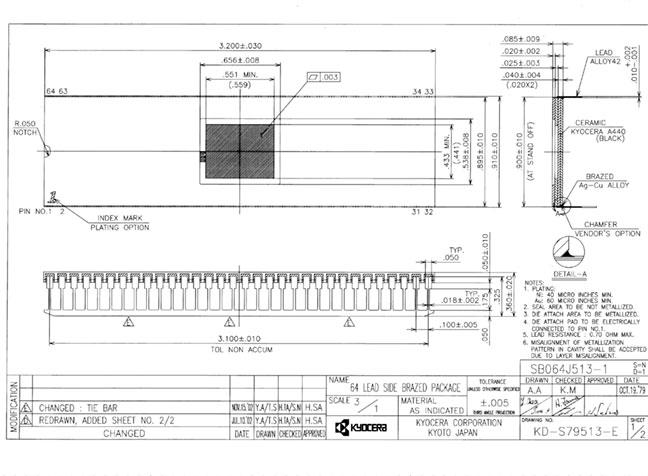

KD-S79513-E
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 64 12 13.6 9 10.6 0.64 81.28 23.11 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized Without Seal Ring Metallization

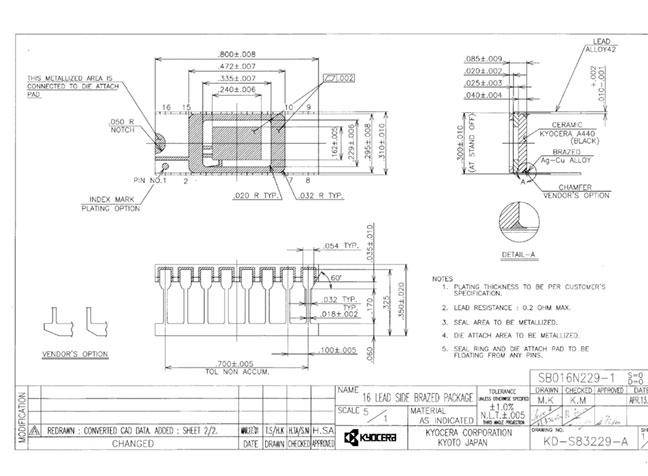

KD-S83229-A
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 16 4.1 5.7 2.11 3.71 0.64 20.32 7.87 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

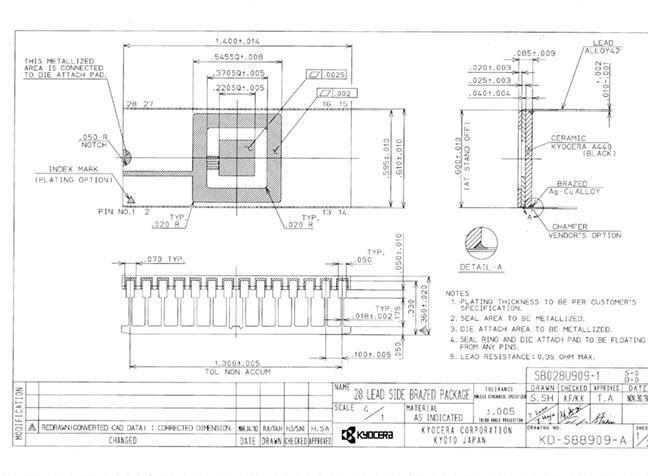

KD-S88909-A
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 28 3.59 5.19 3.59 5.19 0.64 35.56 15.49 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

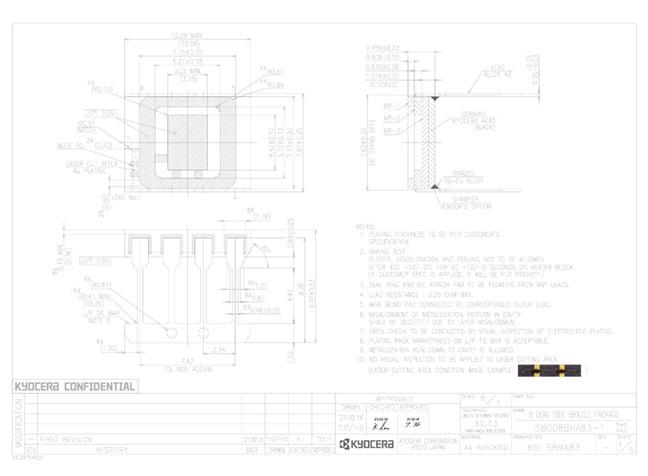

KD-SB9A83
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 8 1.05 2.65 2.42 4.02 0.64 10.29 7.87 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

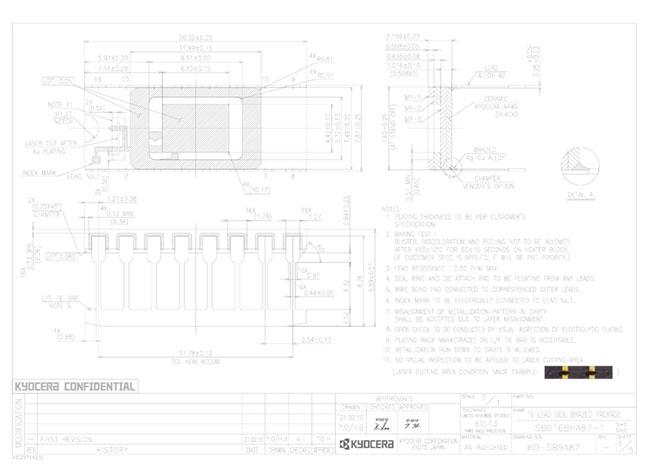

KD-SB9A87
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 16 4.1 5.7 2.42 4.02 0.64 20.32 7.87 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

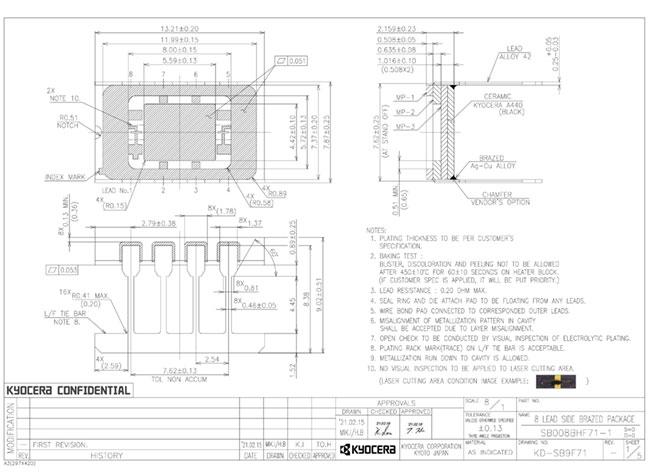

KD-SB9F71
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 8 3.59 5.19 2.42 4.02 0.64 13.21 7.87 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

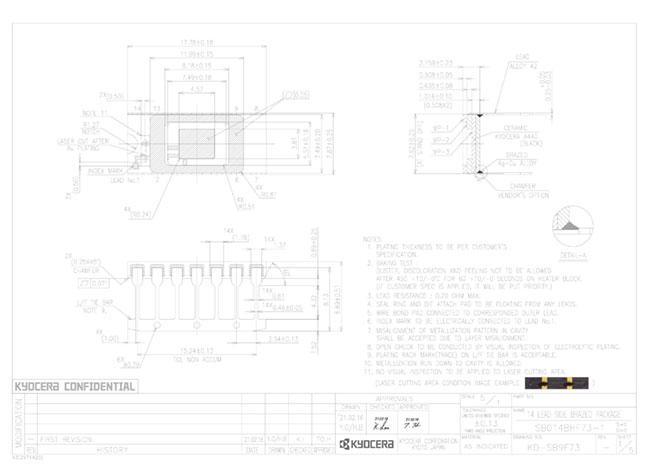

KD-SB9F73
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 14 2.57 4.17 1.81 3.41 0.64 17.78 7.87 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

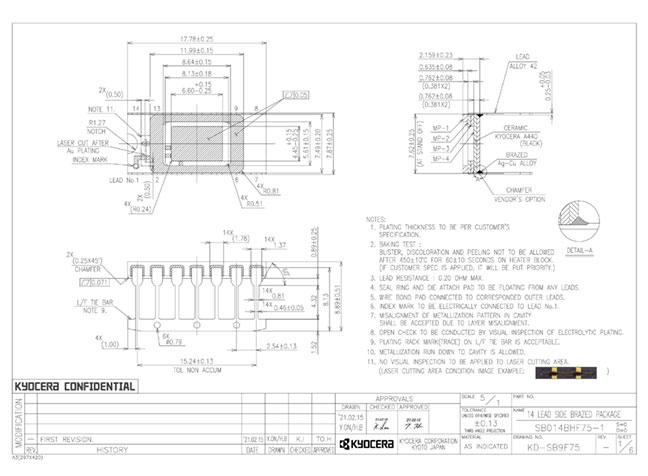

KD-SB9F75
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 14 4.6 6.2 2.45 4.05 0.76 17.78 7.87 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

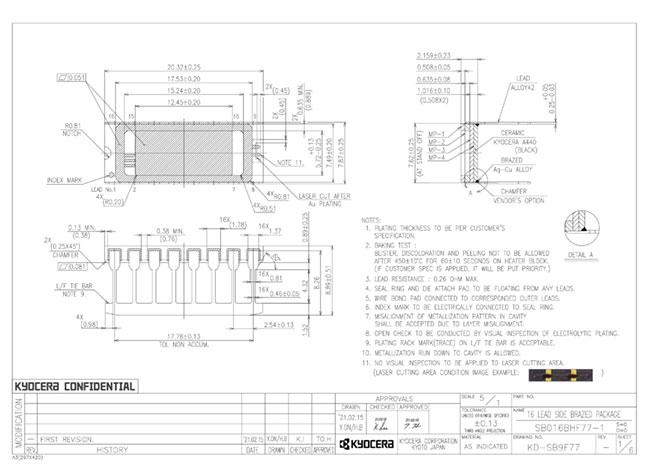

KD-SB9F77
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 16 10.45 12.05 3.72 5.32 0.64 20.32 7.87 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

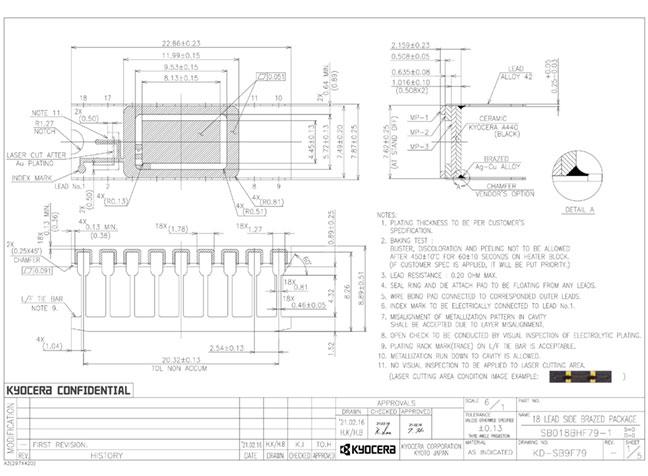

KD-SB9F79
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 18 6.13 7.73 2.45 4.05 0.64 22.86 7.87 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

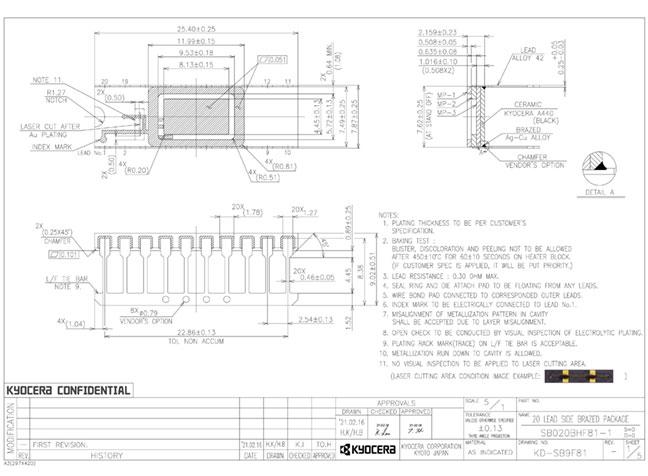

KD-SB9F81
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 20 6.13 7.73 2.45 4.05 0.64 25.4 7.87 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization
KD-SB9F83
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 24 4.35 5.95 4.35 5.95 0.64 30.48 15.49 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

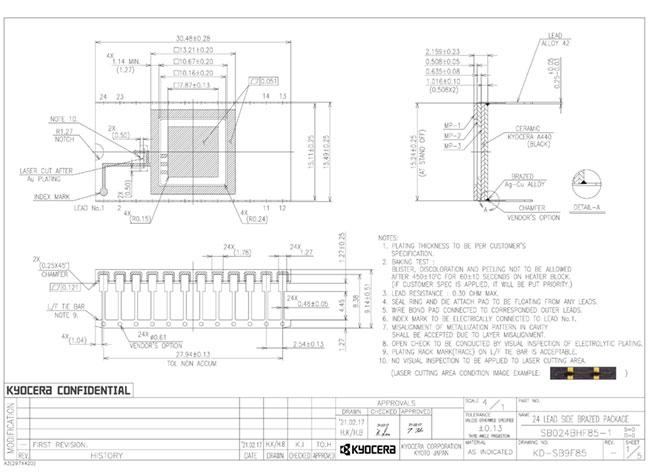

KD-SB9F85
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 24 5.87 7.47 5.87 7.47 0.64 30.48 15.49 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

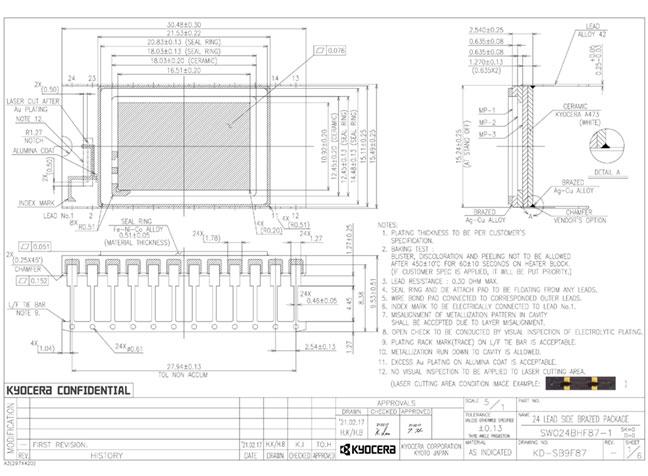

KD-SB9F87
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 24 14.51 16.11 8.92 10.52 0.64 30.48 15.49 2.54 A473 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring

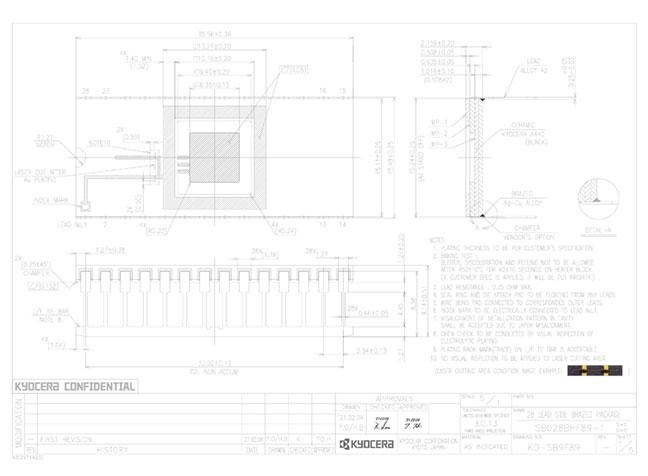

KD-SB9F89
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 28 4.35 5.95 4.35 5.95 0.64 35.56 15.49 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

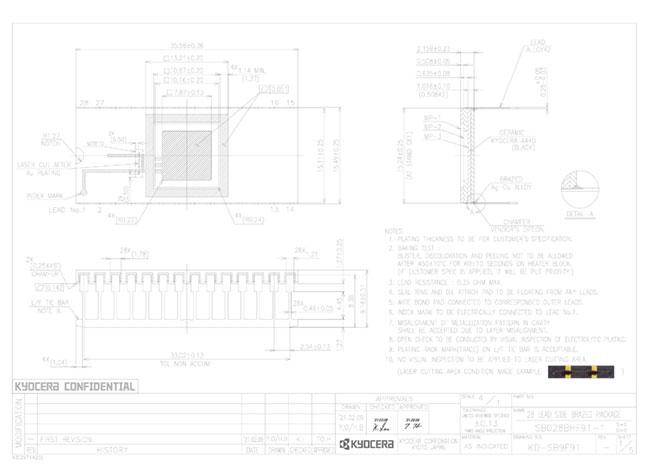

KD-SB9F91
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 28 5.87 7.47 5.87 7.47 0.64 35.56 15.49 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization

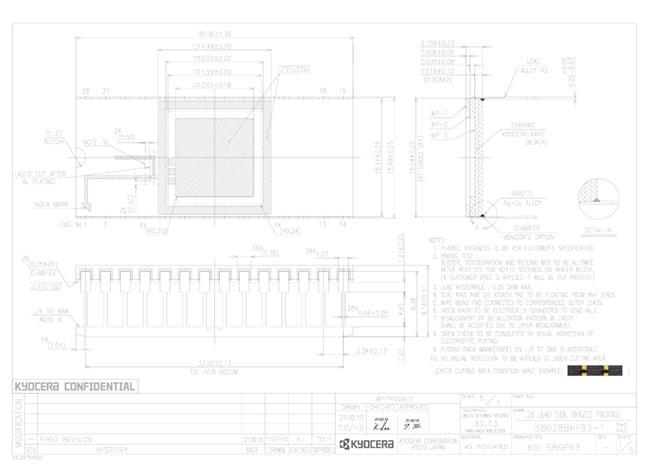

KD-SB9F93
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 28 8.01 9.61 8.01 9.61 0.64 35.56 15.49 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization
KD-SB9F95
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 40 5.87 7.47 5.87 7.47 0.64 50.8 15.49 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization
KD-SB9F97
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 48 5.87 7.47 5.87 7.47 0.64 60.96 15.49 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization
KD-SB9F99
Drawings Download
DIP (Dual Inline Packages) Wire Bonding 48 8.16 9.76 8.16 9.76 0.64 60.96 15.49 2.16 A440 2.54 Lead With Tie Bar Without Bent Leads Ni/Au Metallized With Seal Ring Metallization
56results
Results per page
Page 1 of 2
Next

* The appearance is an image. It may differ from the actual content.

* PDF file size is 19-2,500KB.
