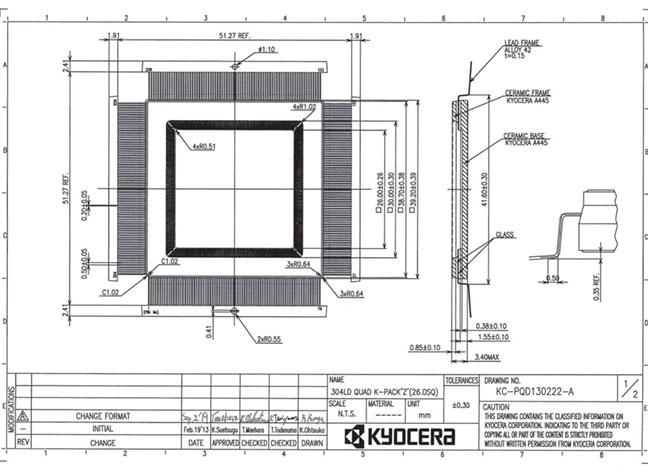

KC-PQD130222-A
Drawings Download

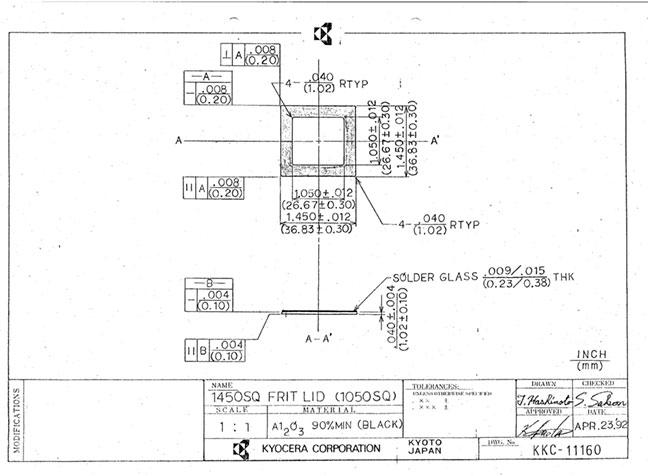

CERQUAD® Wire Bonding 304 24 25.6 24 25.6 0.38 39.2 39.2 1.55 A445 KKC-11160
Drawings Download

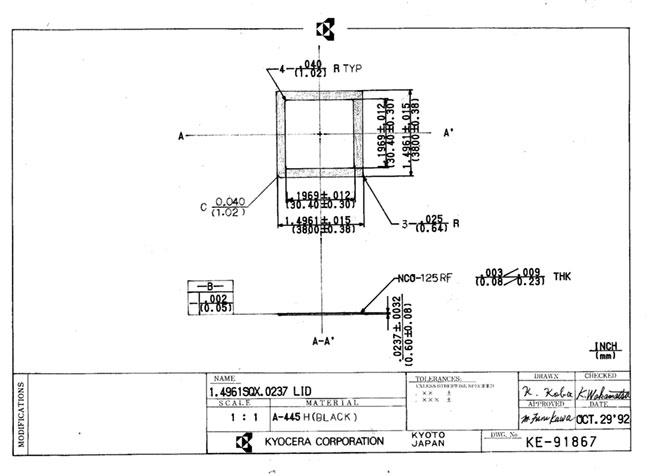

KE-91867
Drawings Download
0.5 Lead With Tie Bar With Bent Leads Au Metallized or Without Metallization Without Seal Ring Metallization

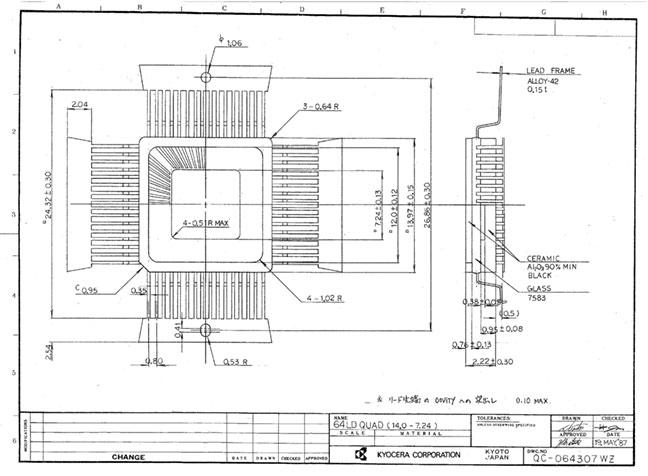

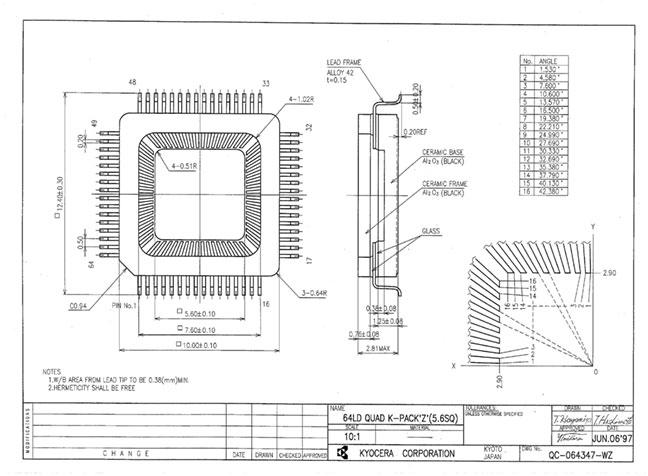

QC-064307-WZ
Drawings Download

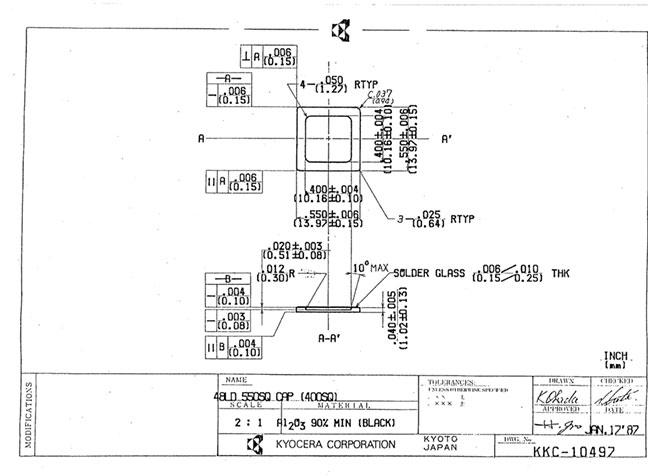

CERQUAD® Wire Bonding 64 5.24 6.84 5.24 6.84 0.38 13.97 13.97 0.95 Al₂O₃ KKC-10497
Drawings Download
KE-91473-1
Drawings Download
0.8 Lead With Tie Bar With Bent Leads Au Metallized or Without Metallization Without Seal Ring Metallization
QC-064347-WZ
Drawings Download

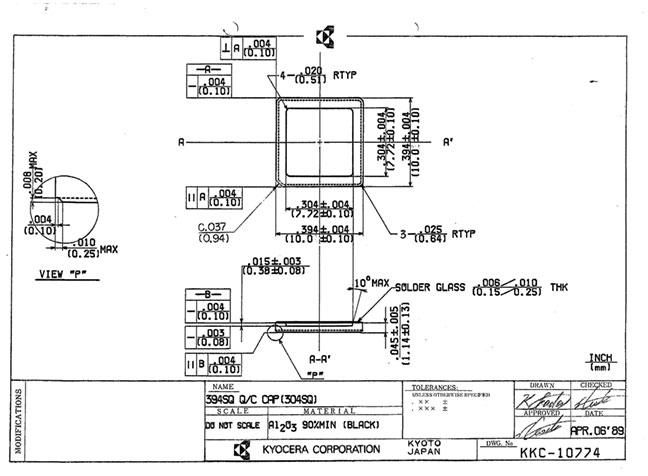

CERQUAD® Wire Bonding 64 3.6 5.2 3.6 5.2 0.38 10 10 1.25 Al₂O₃ KKC-10774
Drawings Download

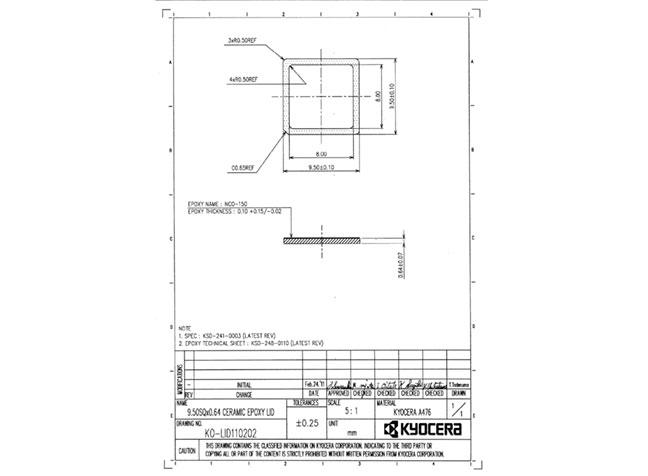

KO-LID110202
Drawings Download
0.5 Lead Without Tie Bar With Bent Leads Au Metallized or Without Metallization Without Seal Ring Metallization

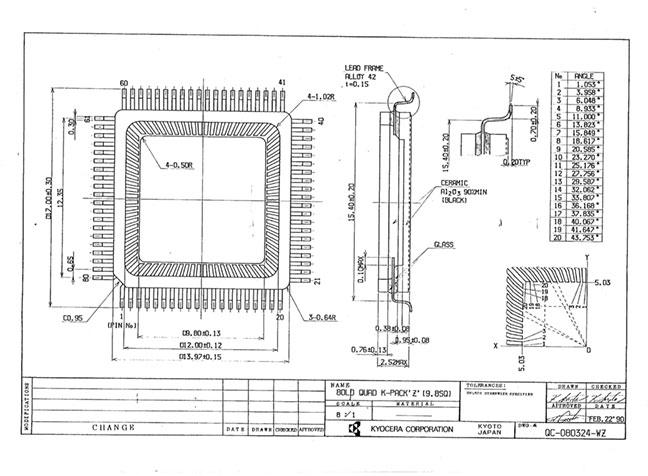

QC-080324-WZ
Drawings Download
CERQUAD® Wire Bonding 80 7.8 9.4 7.8 9.4 0.38 13.97 13.97 0.95 Al₂O₃ KKC-10497

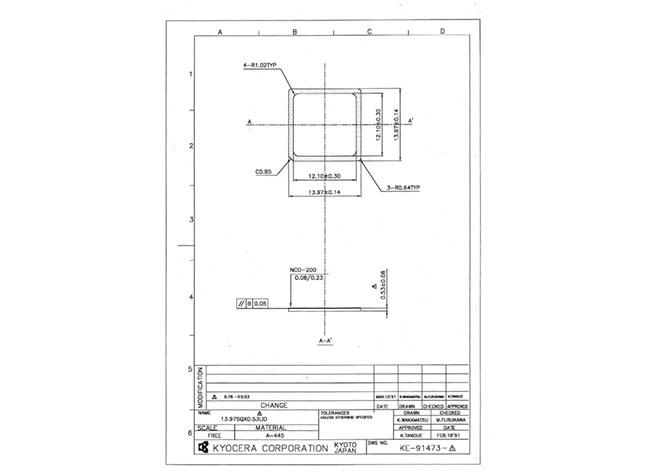

Drawings Download
KE-91473-1
Drawings Download
0.65 Lead Without Tie Bar With Bent Leads Au Metallized or Without Metallization Without Seal Ring Metallization

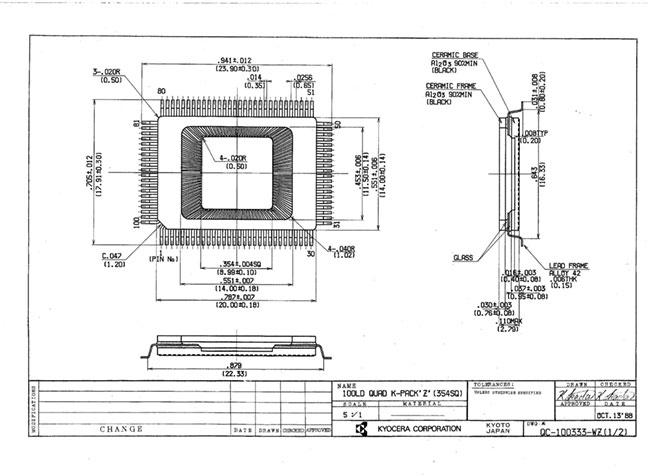

QC-100333-WZ
Drawings Download

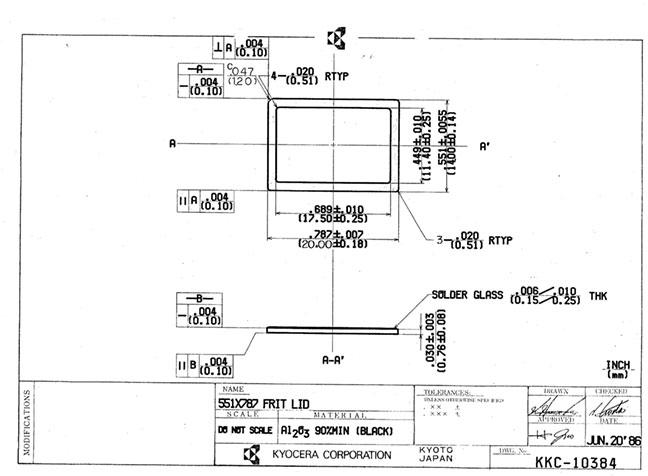

CERQUAD® Wire Bonding 100 6.99 8.59 6.99 8.59 0.4 14 20 0.95 Al₂O₃ KKC-10384
Drawings Download

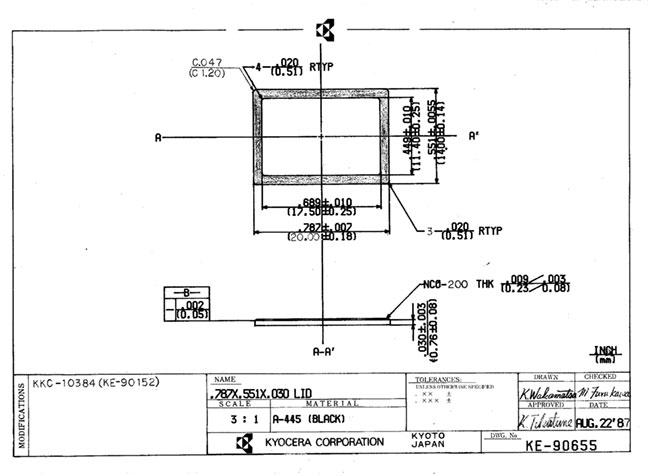

KE-90655
Drawings Download
0.65 Lead Without Tie Bar With Bent Leads Au Metallized or Without Metallization Without Seal Ring Metallization

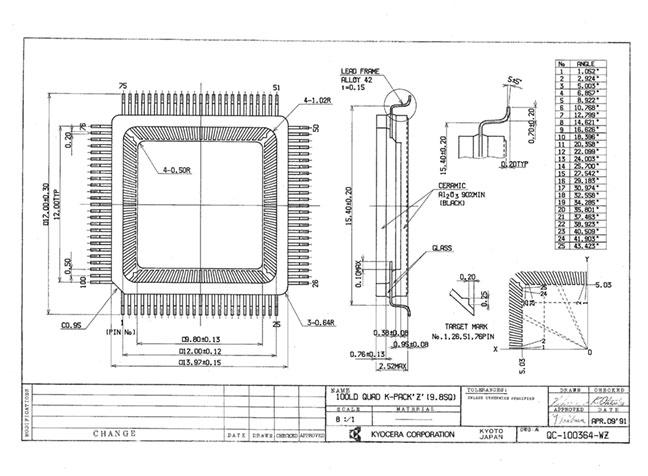

QC-100364-WZ
Drawings Download
CERQUAD® Wire Bonding 100 7.8 9.4 7.8 9.4 0.38 13.97 13.97 0.95 Al₂O₃ KKC-10497
Drawings Download
KE-91473-1
Drawings Download
0.5 Lead Without Tie Bar With Bent Leads Au Metallized or Without Metallization Without Seal Ring Metallization

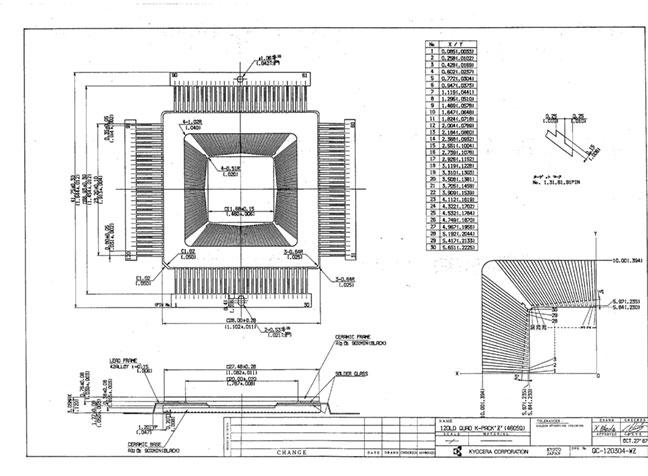

QC-120304-WZ
Drawings Download

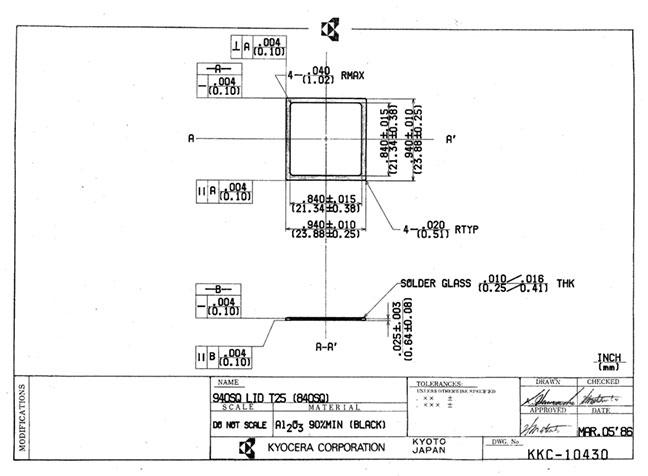

CERQUAD® Wire Bonding 120 9.68 11.28 9.68 11.28 0.38 28 28 1.27 Al₂O₃ KKC-10430
Drawings Download

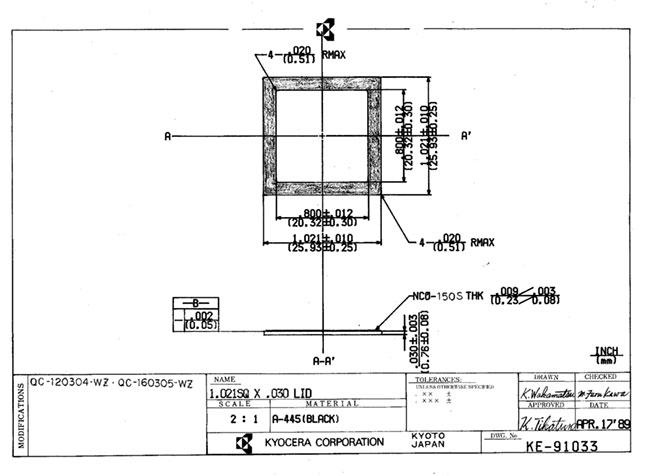

KE-91033
Drawings Download
0.8 Lead With Tie Bar With Bent Leads Au Metallized or Without Metallization Without Seal Ring Metallization

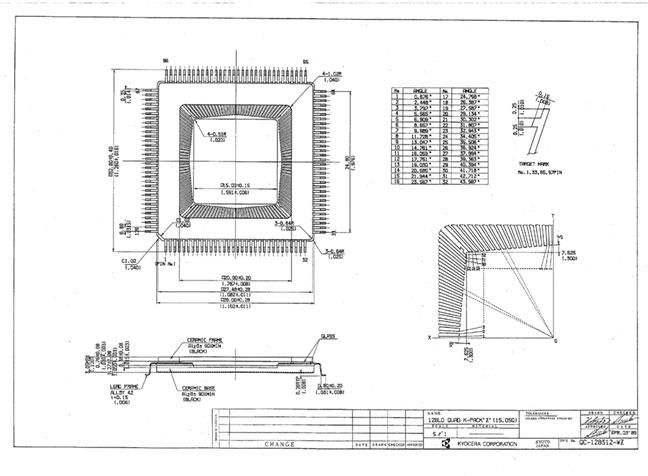

QC-128312-WZ
Drawings Download
CERQUAD® Wire Bonding 128 13 14.6 13 14.6 0.38 28 28 1.27 Al₂O₃ KKC-10430
Drawings Download
KE-91033
Drawings Download
0.8 Lead Without Tie Bar With Bent Leads Au Metallized or Without Metallization Without Seal Ring Metallization

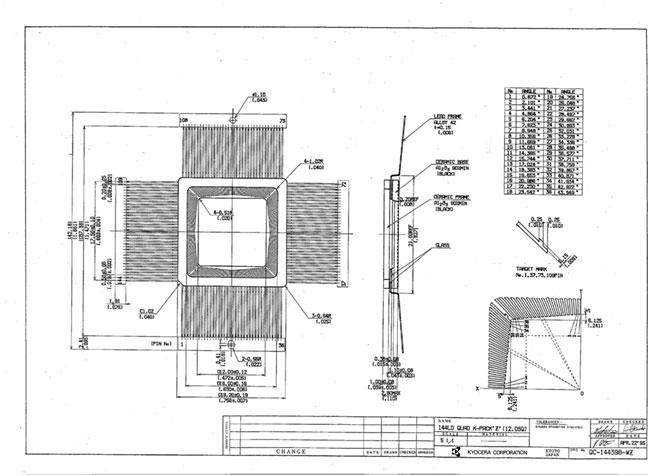

QC-144398-WZ
Drawings Download

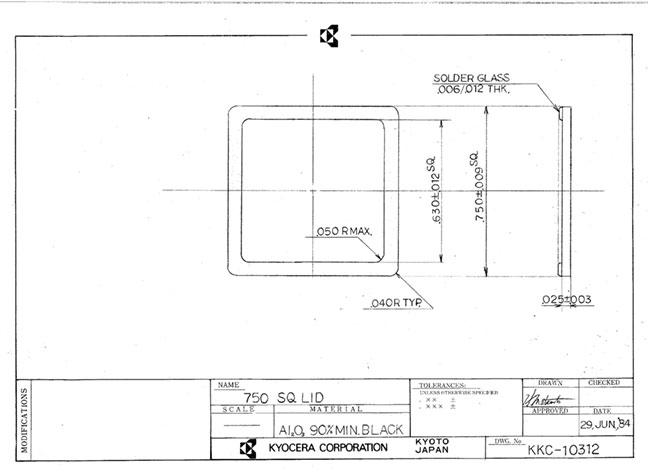

CERQUAD® Wire Bonding 144 10 11.6 10 11.6 0.38 19.2 19.2 1.1 Al₂O₃ KKC-10312
Drawings Download

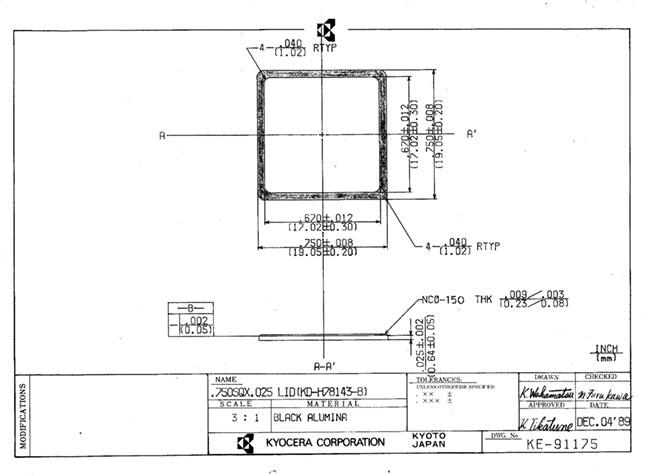

KE-91175
Drawings Download
0.5 Lead With Tie Bar With Bent Leads Au Metallized or Without Metallization Without Seal Ring Metallization

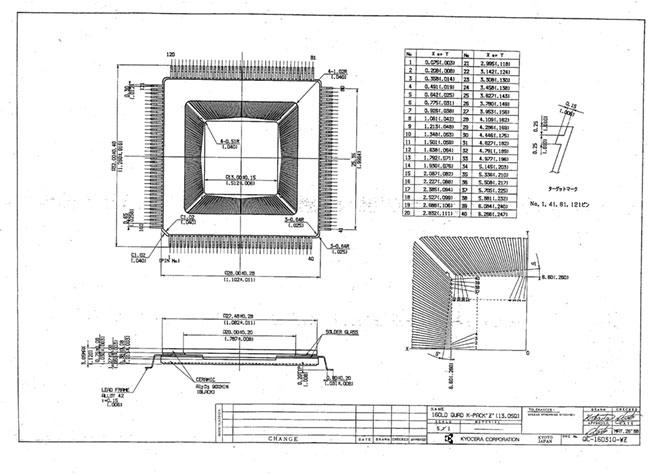

QC-160310-WZ
Drawings Download
CERQUAD® Wire Bonding 160 11 12.6 11 12.6 0.38 28 28 1.27 Al₂O₃ KKC-10430
Drawings Download
KE-91033
Drawings Download
0.65 Lead Without Tie Bar With Bent Leads Au Metallized or Without Metallization Without Seal Ring Metallization

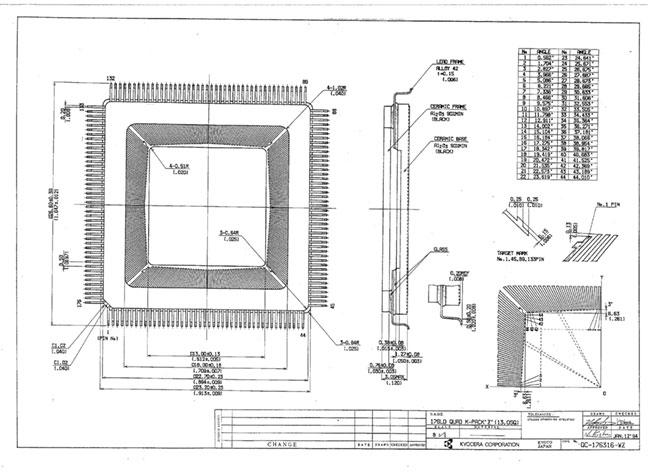

QC-176316-WZ
Drawings Download

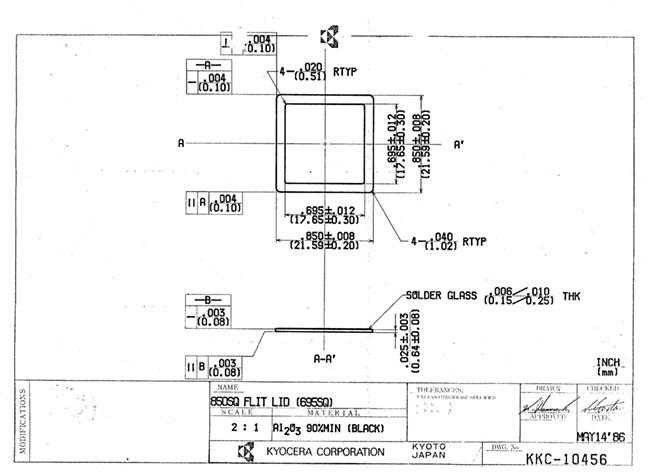

CERQUAD® Wire Bonding 176 11 12.6 11 12.6 0.38 23.2 23.2 1.27 Al₂O₃ KKC-10456
Drawings Download

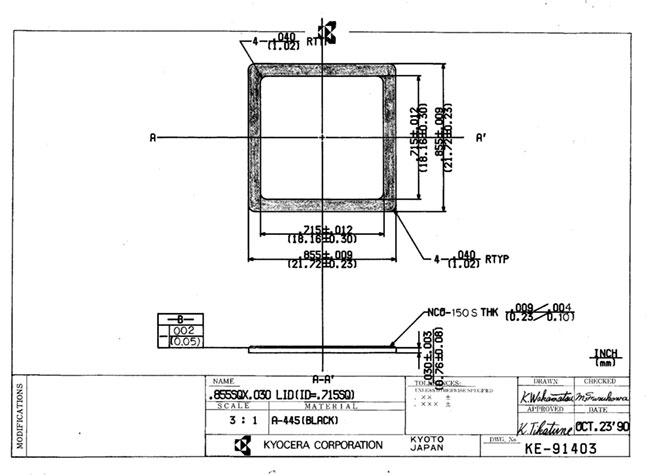

KE-91403
Drawings Download
0.5 Lead Without Tie Bar With Bent Leads Au Metallized or Without Metallization Without Seal Ring Metallization

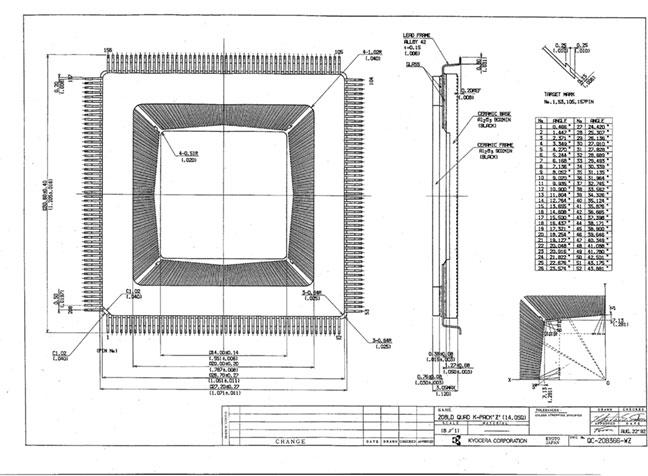

QC-208366-WZ
Drawings Download
CERQUAD® Wire Bonding 208 12 13.6 12 13.6 0.38 27.2 27.2 1.27 Al₂O₃ KKC-10430
Drawings Download
KE-91033
Drawings Download
0.5 Lead Without Tie Bar With Bent Leads Au Metallized or Without Metallization Without Seal Ring Metallization

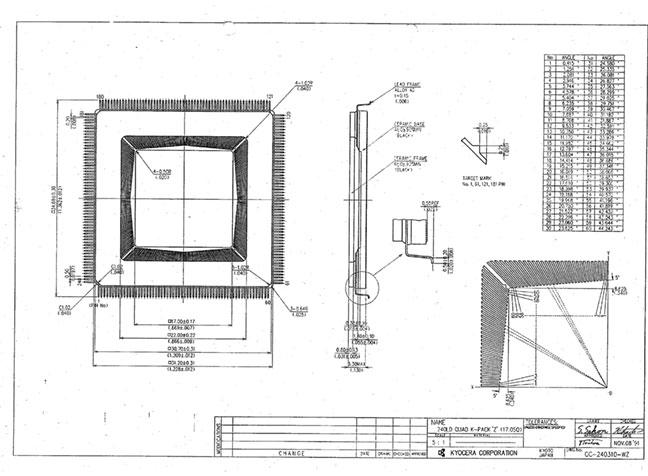

QC-240310-WZ
Drawings Download

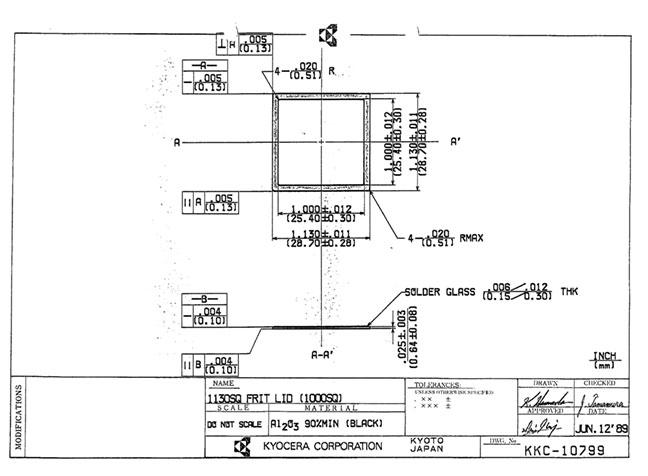

CERQUAD® Wire Bonding 240 15 16.6 15 16.6 0.38 31.2 31.2 1.4 Al₂O₃ KKC-10799
Drawings Download

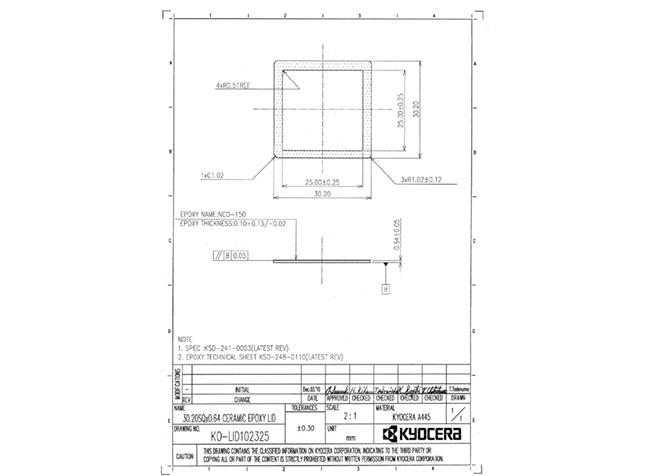

KO-LID102325
Drawings Download
0.5 Lead Without Tie Bar With Bent Leads Au Metallized or Without Metallization Without Seal Ring Metallization

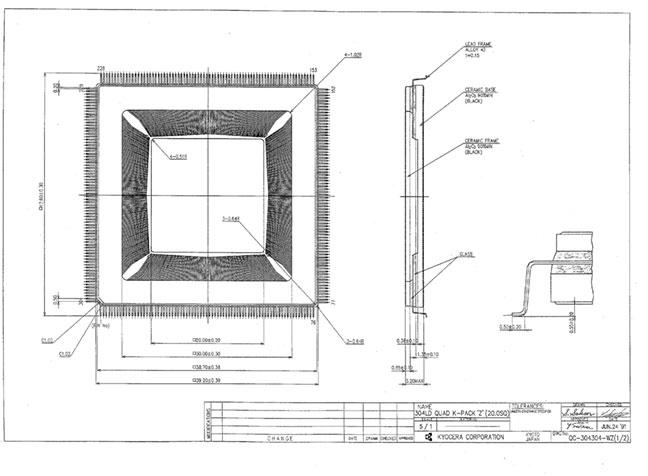

QC-304304-WZ
Drawings Download
CERQUAD® Wire Bonding 304 18 19.6 18 19.6 0.38 39.2 39.2 1.35 Al₂O₃ KKC-11160
Drawings Download
KE-91867
Drawings Download
0.5 Lead Without Tie Bar With Bent Leads Au Metallized or Without Metallization Without Seal Ring Metallization
