Results for
  • Without Sealing Material
45results

* Membership registration (login) is required to download drawings.

Results per page
Change Columns
Appearance
Drawing Number
 Drawing Shape
Lid Outer Dimension
X[mm]
Lid Outer Dimension
Y[mm]
Lid Thickness
(except sealing material)
[mm]
 Sealing Material Materialor
Material Code
Cavity Depth
[mm]
Seal Thickness
[mm]

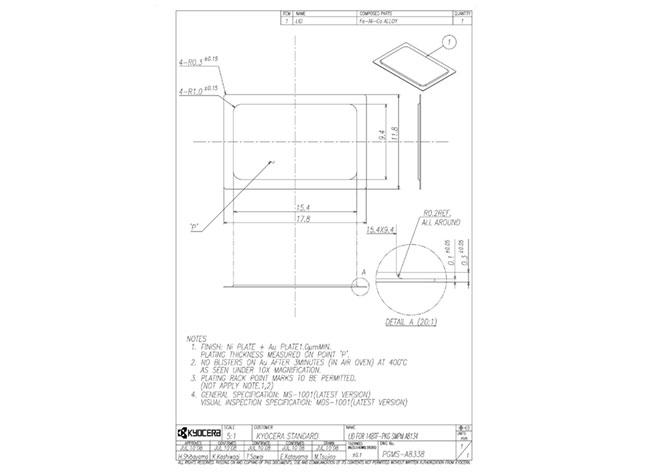

PGMS-A8338
Drawings Download
Pedestal Type 17.8 11.8 0.3 Without Sealing Material FeNiCo 0.1

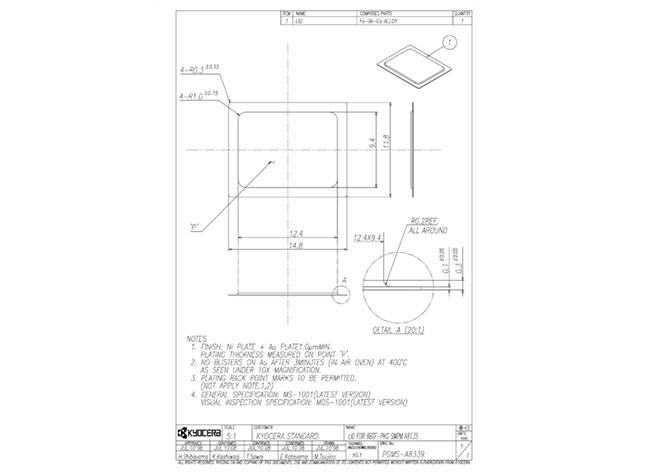

PGMS-A8339
Drawings Download
Pedestal Type 14.8 11.8 0.3 Without Sealing Material FeNiCo 0.1

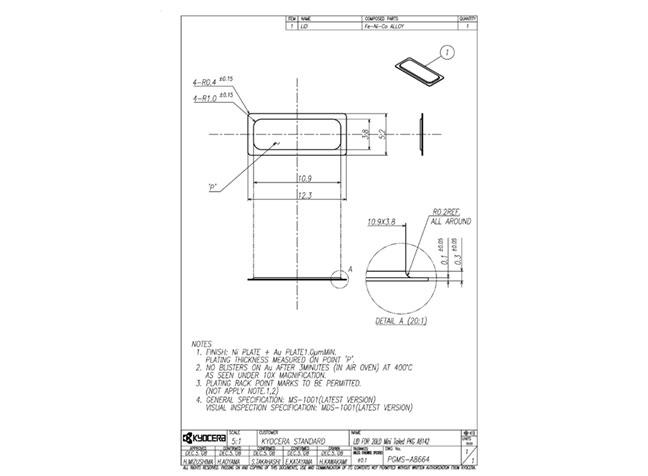

PGMS-A8664
Drawings Download
Pedestal Type 12.3 5.2 0.3 Without Sealing Material FeNiCo 0.1

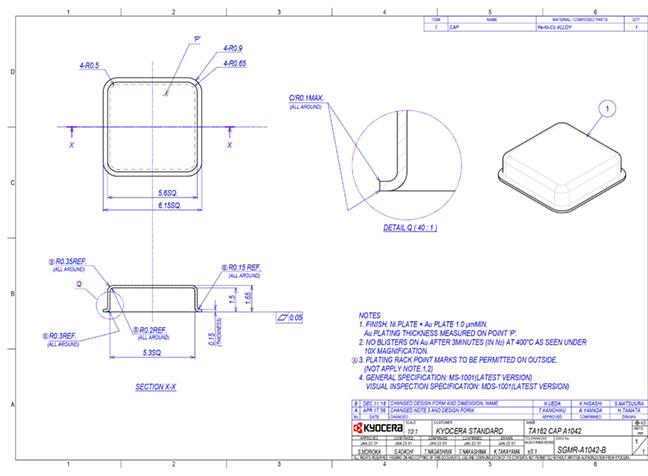

SGMR-A1042-B
Drawings Download
Cup Shape Type 6.15 6.15 1.65 Without Sealing Material FeNiCo 1.5

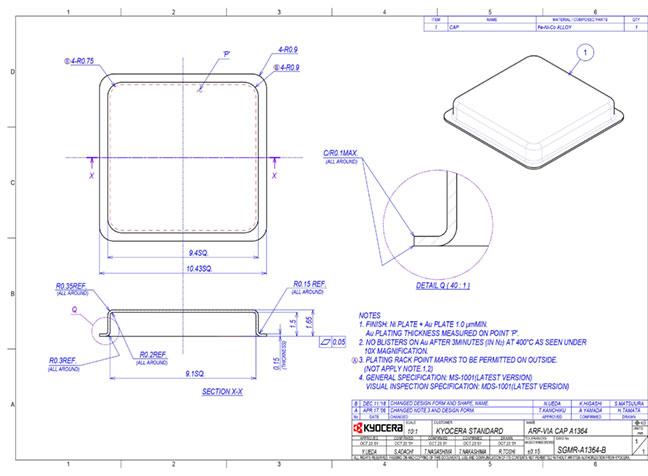

SGMR-A1364-B
Drawings Download
Cup Shape Type 10.43 10.43 1.65 Without Sealing Material FeNiCo 1.5

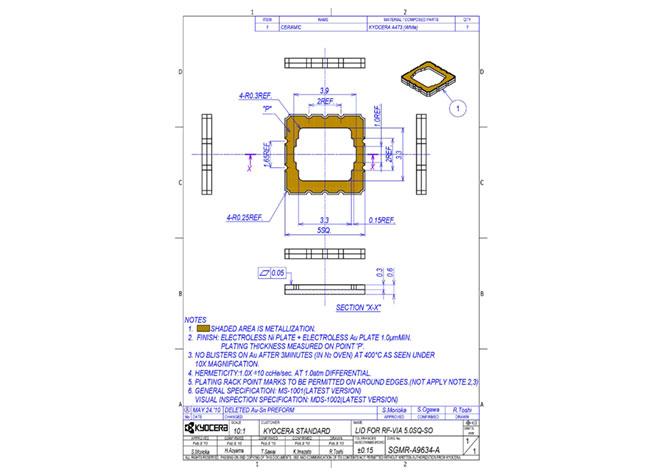

SGMR-A9634-B
Drawings Download
Cup Shape Type 5 5 0.6 Without Sealing Material A473 0.3

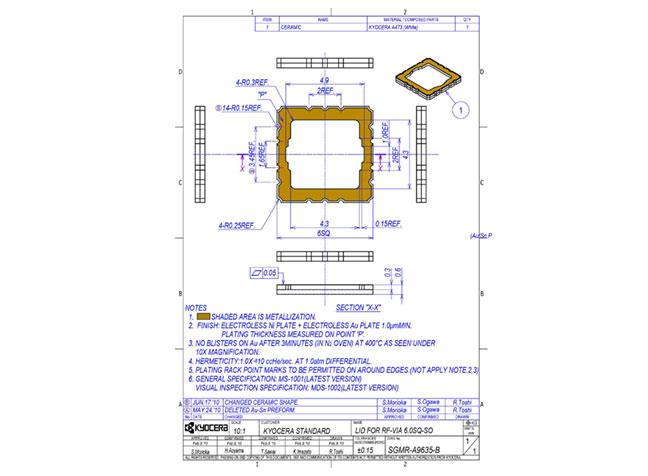

SGMR-A9635-C
Drawings Download
Cup Shape Type 6 6 0.6 Without Sealing Material A473 0.3

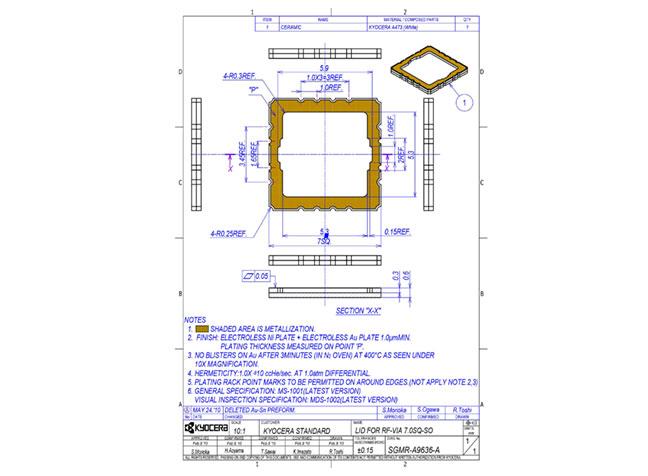

SGMR-A9636-B
Drawings Download
Cup Shape Type 7 7 0.6 Without Sealing Material A473 0.3
SGMR-B3416
Drawings Download
Flat Type 13.72 13.72 0.3 Without Sealing Material FeNiCo

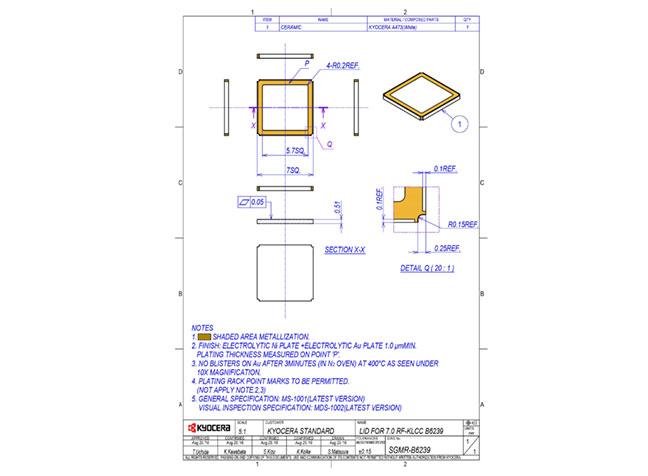

SGMR-B6239
Drawings Download
Flat Type 7 7 0.51 Without Sealing Material A473

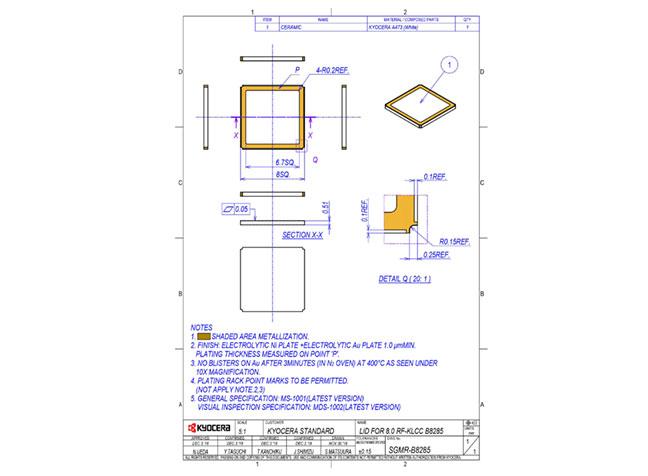

SGMR-B8285
Drawings Download
Flat Type 8 8 0.51 Without Sealing Material A473
SGMS-91622-C
Drawings Download
Pedestal Type 20.52 12.49 0.3 Without Sealing Material FeNiCo 0.1

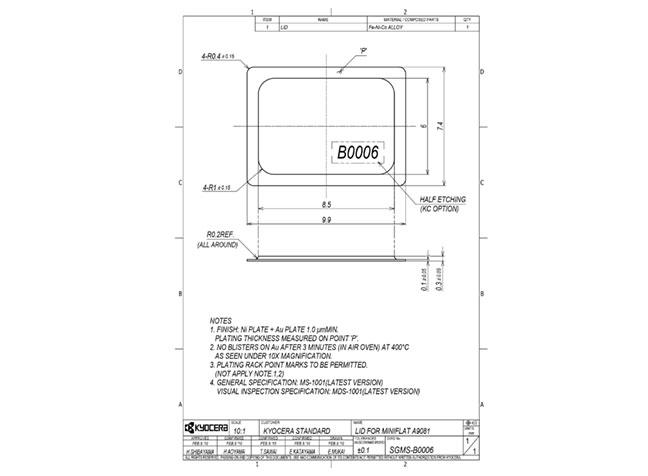

SGMS-B0006
Drawings Download
Pedestal Type 9.9 7.4 0.3 Without Sealing Material FeNiCo 0.1

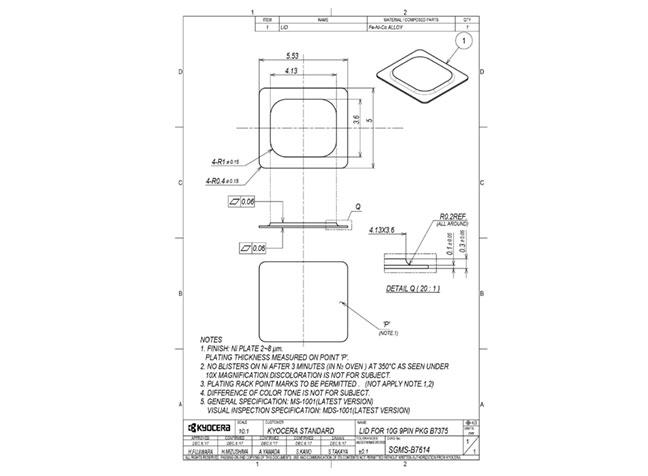

SGMS-B7614
Drawings Download
Pedestal Type 5.53 5 0.3 Without Sealing Material FeNiCo 0.1

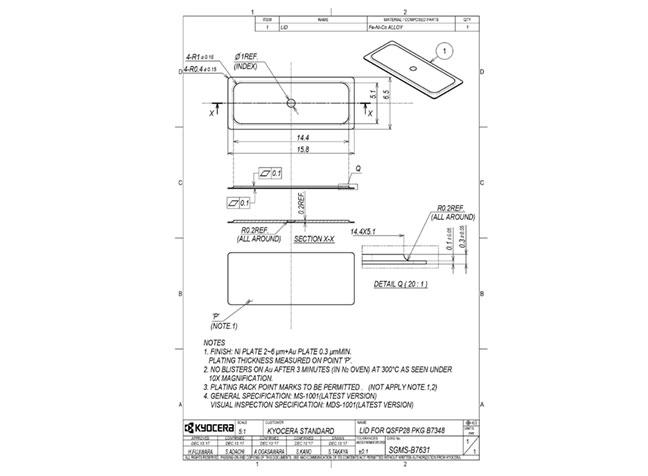

SGMS-B7631
Drawings Download
Pedestal Type 15.8 6.5 0.3 Without Sealing Material FeNiCo 0.1
45results
Results per page
Previous
Page 2 of 2

* The appearance is an image. It may differ from the actual content.

* PDF file size is 19-2,500KB.
