Results for
  • Optical Communication / Wireless Communication
  • TO-CAN Packages
1results

* Membership registration (login) is required to download drawings.

Results per page
Change Columns
Appearance
Drawing Number
 Drawing Shape
Number of Terminals
Package
Outer Dimension
SizeX[mm]
Package
Outer Dimension
SizeY[mm]
Package
Thickness[mm]
 Heat Sink Materialor
Heat Sink Material Code		 Transmission Capacity
Frequency[GHz]
Recommended Lid Thumbnail Number
 Recommended
Lid
Thumbnail
Number of RF Terminal
I/O
Pitch[mm]
Cavity
SizeX[mm]
Cavity
SizeY[mm]
Seal Ring
Inner Dimension
SizeX[mm]
Seal Ring
Inner Dimension
SizeY[mm]
Base
SizeX[mm]
Base
SizeY[mm]
Size of LD
Mount Area[mm]
 Sealing Surface

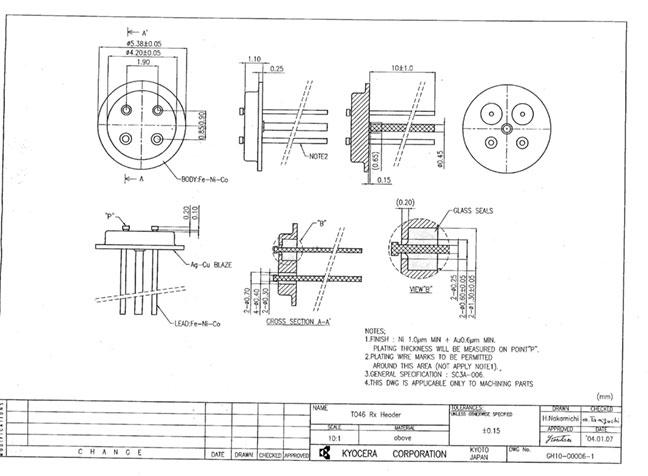

GH10-00006-1
Drawings Download
TO-CAN Packages 5 5.38 5.38 1.1 FeNiCo 25 Gbps 2 1.9 4.2 4.2 5.38 5.38
1results
Results per page
Page 1 of 1

* The appearance is an image. It may differ from the actual content.

* PDF file size is 19-2,500KB.
