Results for
  • Optical Communication / Wireless Communication
  • BTF PKG®
2results

* Membership registration (login) is required to download drawings.

Results per page
Change Columns
Appearance
Drawing Number
 Drawing Shape
Number of Terminals
Package
Outer Dimension
SizeX[mm]
Package
Outer Dimension
SizeY[mm]
Package
Thickness[mm]
 Heat Sink Materialor
Heat Sink Material Code		 Transmission Capacity
Frequency[GHz]
Recommended Lid Thumbnail Number
 Recommended
Lid
Thumbnail
Number of RF Terminal
I/O
Pitch[mm]
Cavity
SizeX[mm]
Cavity
SizeY[mm]
Seal Ring
Inner Dimension
SizeX[mm]
Seal Ring
Inner Dimension
SizeY[mm]
Base
SizeX[mm]
Base
SizeY[mm]
Size of LD
Mount Area[mm]
 Sealing Surface

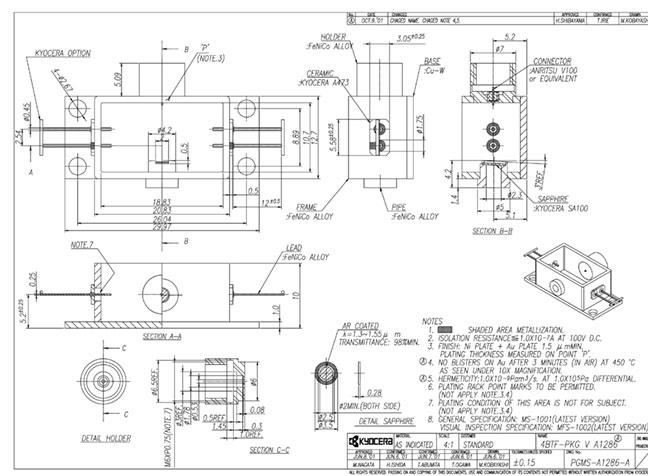

PGMS-A1286-A
Drawings Download

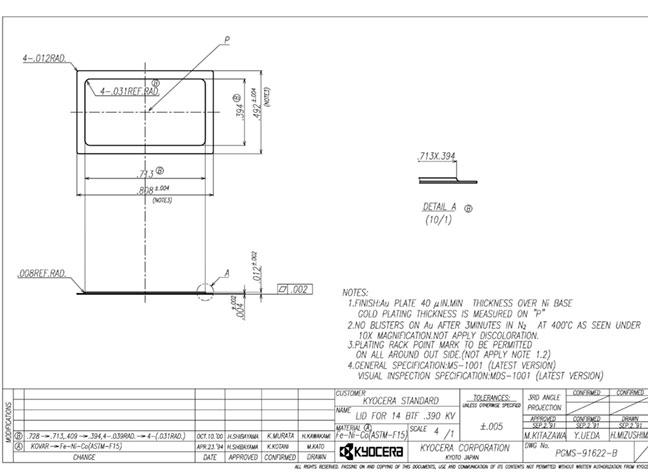

BTF PKG® 4 20.83 12.7 10 CuW 40 Gbps SGMS-91622-C
Drawings Download
1 2.54 18.83 10.7 18.83 10.7 29.97 12.7 Without Seal Ring Metallization

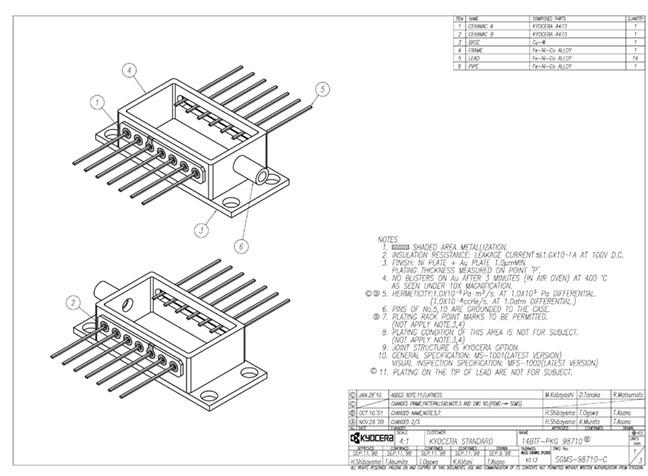

SGMS-98710-C
Drawings Download
BTF PKG® 14 20.83 12.7 7.7 CuW SGMS-91622-C
Drawings Download
2.54 18.83 10.7 18.83 10.7 29.97 12.7 Without Seal Ring Metallization
2results
Results per page
Page 1 of 1

* The appearance is an image. It may differ from the actual content.

* PDF file size is 19-2,500KB.

0Drawing Number Selected
